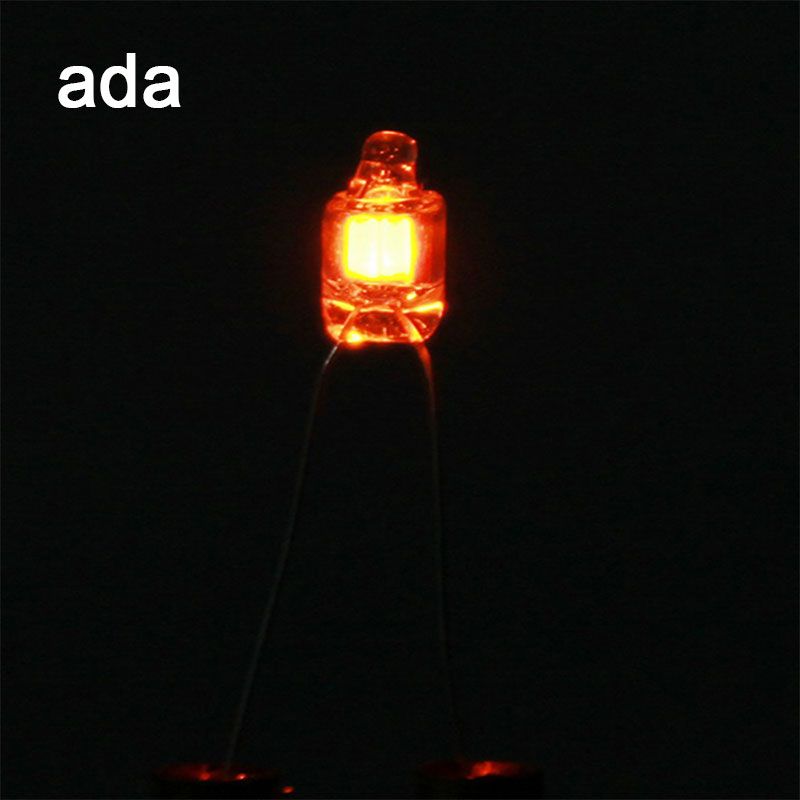

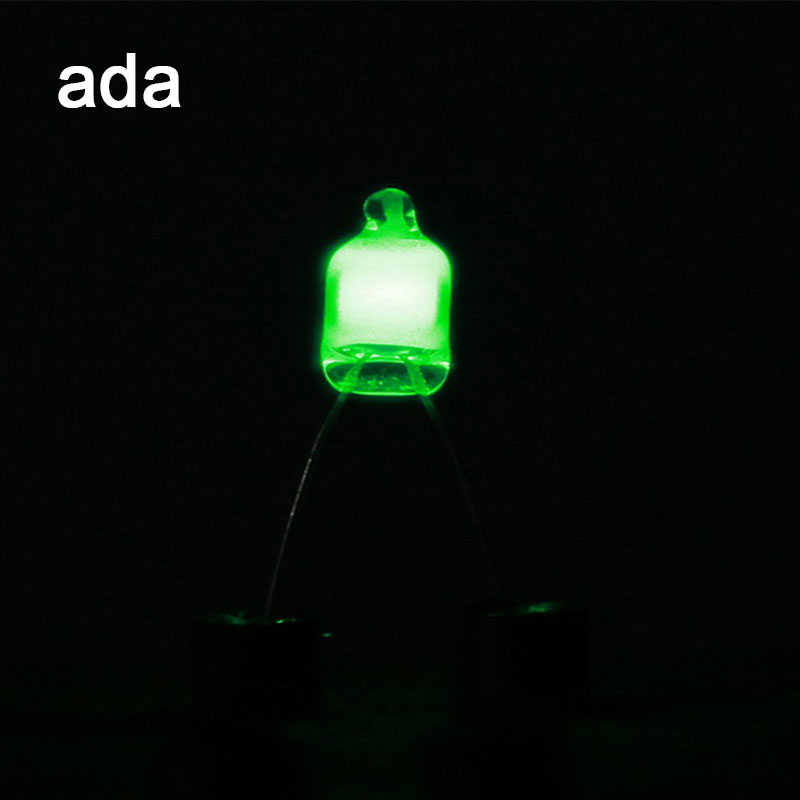

Neon lamp NE-2 series pilot bulb indicator light led
NO. | Specification | BULB SIZE | LEGS | OPTO ELECTRONIC PARAMETER | SERIES RESISTOR (KΩ) | AVER. Life (h) | |||||
Diameter (mm) | Length (mm) | Diameter (mm) | Length (mm) | Breakdown voltage (max) | CURRENT (mA) | 110~120 V AC | 220~250 V AC | ||||
AC | DC | ||||||||||
1 | NE-2 3×10.5 | 3.2 | 10.5 | 0.30 | 30 | 65 | 90 | 0.3 | 150 | 510 | 25000 |
2 | NE-2 4×10.5 | 4 | 10.5 | 0.35 | 30 | 65 | 90 | 0.5 | 100 | 330 | 50000 |
3 | NE-2 5×13 | 5 | 13 | 0.40 | 30 | 65 | 90 | 0.5 | 100 | 330 | 50000 |
4 | NE-2 5×16 | 5 | 16 | 0.40 | 30 | 65 | 90 | 0.5 | 100 | 330 | 50000 |
5 | NE-2 6×13 | 6 | 13 | 0.40 | 30 | 65 | 90 | 0.5 | 100 | 330 | 50000 |
6 | NE-2 6×16 | 6 | 16 | 0.40 | 30 | 65 | 90 | 0.5 | 100 | 330 | 50000 |
7 | NE-2 6×18 | 6 | 18 | 0.40 | 30 | 65 | 90 | 0.5 | 100 | 330 | 50000 |
8 | NE-2 6×20 | 6 | 20 | 0.40 | 30 | 65 | 90 | 0.5 | 100 | 330 | 50000 |
9 | NE-2 6×22 | 6 | 22 | 0.40 | 30 | 65 | 90 | 0.5 | 100 | 330 | 50000 |
Q1. How can I get examples?
A:You could get 1-3 pcs each model free samples, but you need bear the freight charge. You could tell us your courier account number or pay us the freight charge. We will send you samples within 7 days via international express, as DHL,FEDEX,UPS,TNT.
Q2. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. If we have not the same product, we could recommend you the similar model. We also could make the mould, but you need pay the mould charge.
Q3. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We"ll show you the photos of the products and packages before you pay the balance.
Q4. What is your terms of delivery?
A: EXW, FOB,CIF…
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
