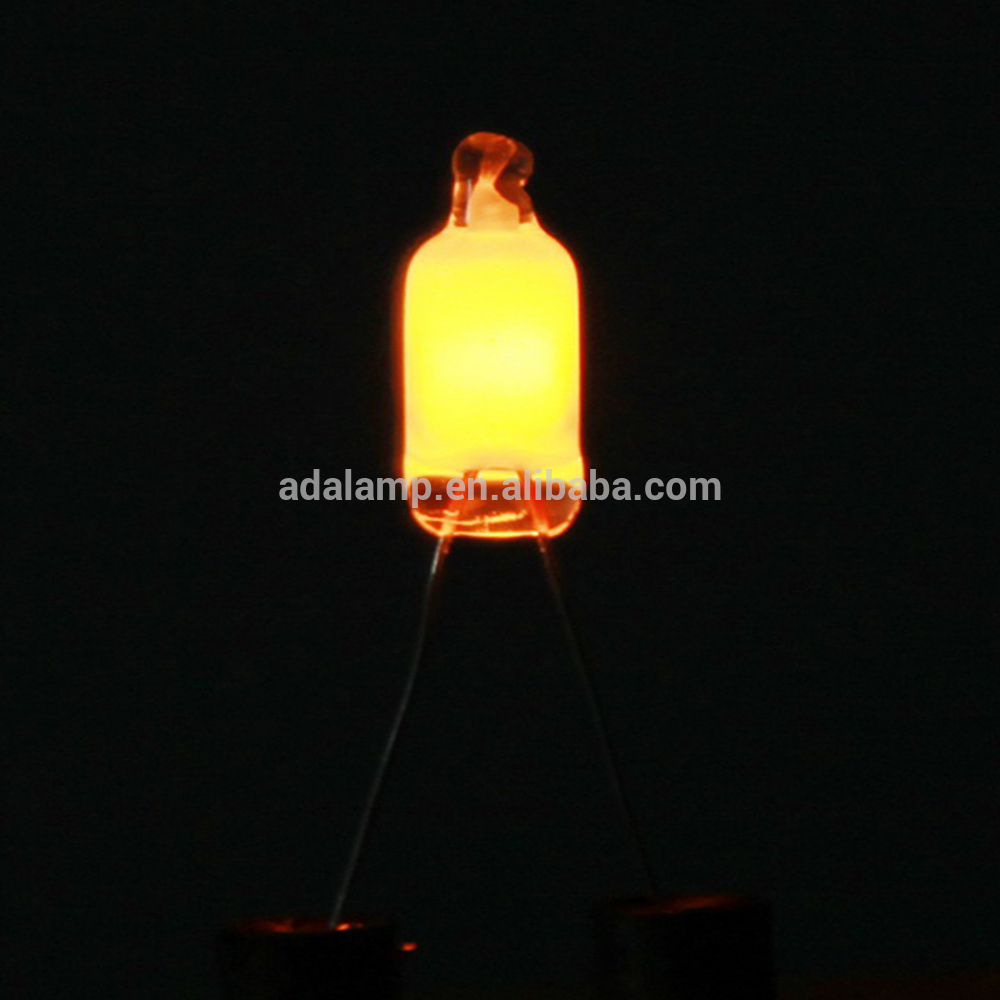

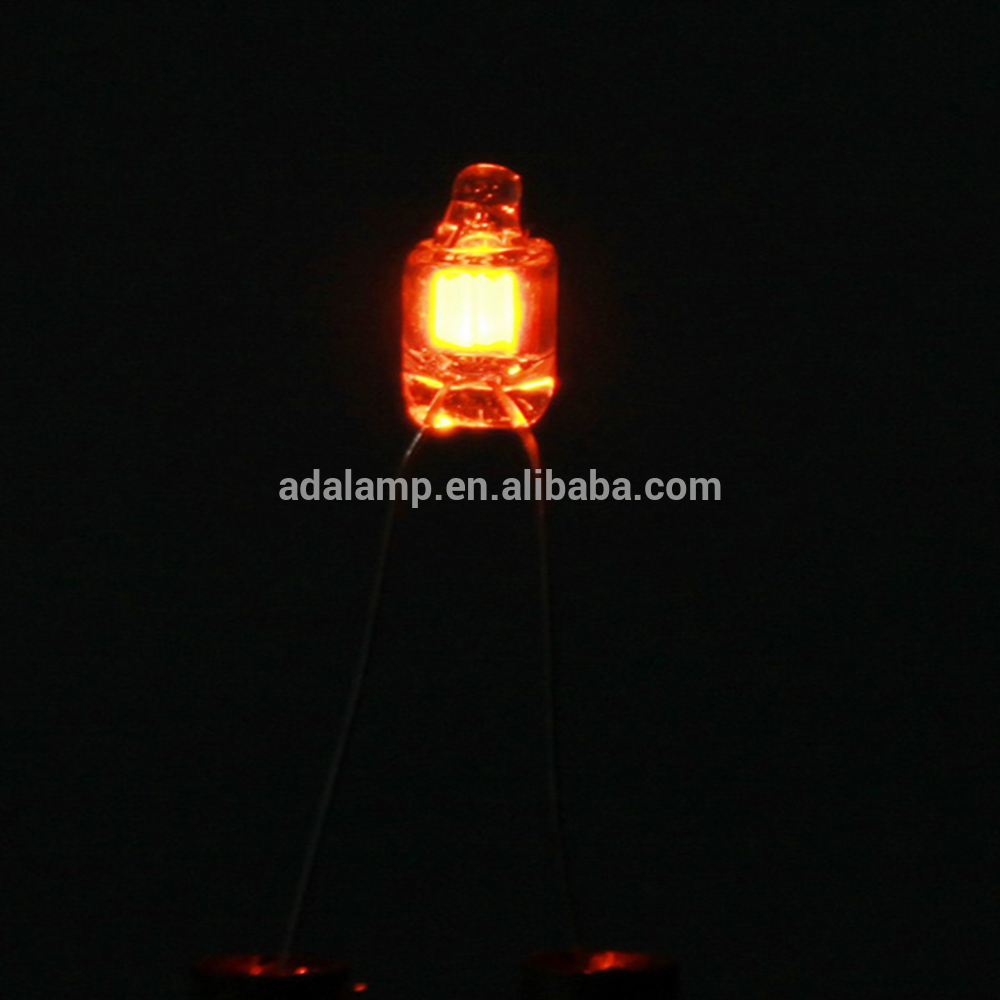

LED Neon Lamp Ne-2G / light bulb pilot / Ne-2 Neon Lamp LED light and lamp
1.Neon lamp is composed of glass tube,electrode terated by a special process and neon - argon gas.There are Standard,Medium,High,Ultra Brightness neon lamp,which can be chose by custoners according to different requirements.
Different types and colors wires can be used as the customer"s demand
2.According to the glass tube dia. and length, it can be seperated as: 3x10, 4x10. 5x13, 6x13, 6x18 ETC.
NEON LAMP RED
NO. | Specification | BULB SIZE | LEGS | OPTO ELECTRONIC PARAMETER | SERIES RESISTOR (KΩ) | AVER. Life (h) | |||||
Diameter (mm) | Length (mm) | Diameter (mm) | Length (mm) | Breakdown voltage (max) | CURRENT (mA) | 110~120 V AC | 220~250 V AC | ||||
AC | DC | ||||||||||
1 | NE-2 3×10.5 | 3.2 | 10.5 | 0.30 | 30 | 65 | 90 | 0.3 | 150 | 510 | 25000 |
2 | NE-2 4×10.5 | 4 | 10.5 | 0.35 | 30 | 65 | 90 | 0.5 | 100 | 330 | 50000 |
3 | NE-2 5×13 | 5 | 13 | 0.40 | 30 | 65 | 90 | 0.5 | 100 | 330 | 50000 |
4 | NE-2 5×16 | 5 | 16 | 0.40 | 30 | 65 | 90 | 0.5 | 100 | 330 | 50000 |
5 | NE-2 6×13 | 6 | 13 | 0.40 | 30 | 65 | 90 | 0.5 | 100 | 330 | 50000 |
6 | NE-2 6×16 | 6 | 16 | 0.40 | 30 | 65 | 90 | 0.5 | 100 | 330 | 50000 |
7 | NE-2 6×18 | 6 | 18 | 0.40 | 30 | 65 | 90 | 0.5 | 100 | 330 | 50000 |
8 | NE-2 6×20 | 6 | 20 | 0.40 | 30 | 65 | 90 | 0.5 | 100 | 330 | 50000 |
9 | NE-2 6×22 | 6 | 22 | 0.40 | 30 | 65 | 90 | 0.5 | 100 | 330 | 50000 |
1)Neon red standard brightness NE-2
2)Neon red medium brightness NE-2C
3)Neon red High brightness NE-2H
4)Neon red Ultra brightness UHB
3.Our Working Place
We areoriginal manufactures,direct marketing,no middlemen
the quality assurance, the cheapest price are our advanages
4.CE
5.Payment
T/T is the best ,we also supply L/c
6.Our company
Ordering guide(Indicator light &Signal units)
If you are satisfied with our products and service,please leave us positive feedback and welcome to contact us for the details.
If you are dissatisfied for any reason,plese give us THE OPPORTUNITY TO MAKE THINGS RIGHT before you leave negative/neutral feedback. Your opinions are very important to us.
When enquiry or order,pls choose following items:
Code | ||
Ligh source | Filament lamp | 6v/12v/24v |
Neon and fluorescent | 110/250/400v | |
LED | 3/6/12/24/110/220/400v | |
Color of lens | White( ) Red( ) Orange( ) Creen( ) Bule( ) | |
Color of lamps | White( ) Red( ) Orange( ) Creen( ) Bule( ) | |
Cables | Material | ( )PVC ( )SILICONE ( )Teflon |
Section | ( )0.25mm2 ( )0.5 mm2 or on request | |
Length | ( )50mm ( )75mm ( )100mm ( )125mm ( )Xmm | |
| Or TABS | 4.8 or 6.3 | |
| Terminal | ( )Yes ( )No If yes,please show the terminal photo or drawing | |
