Home > Products > A-06-3 red cable 0.25mm2 pvc 36v malfunction indicator lamp

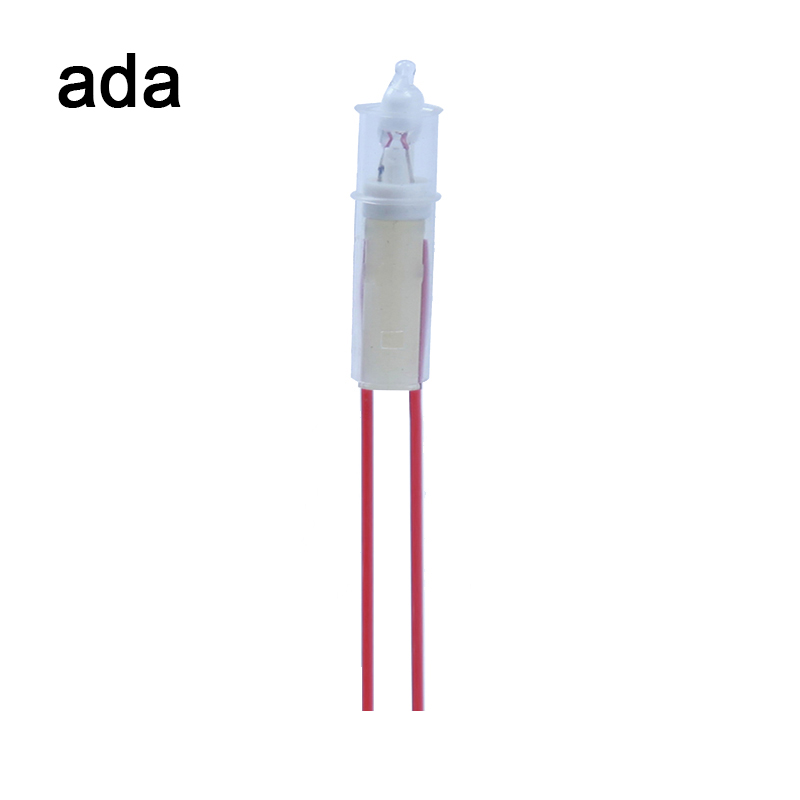

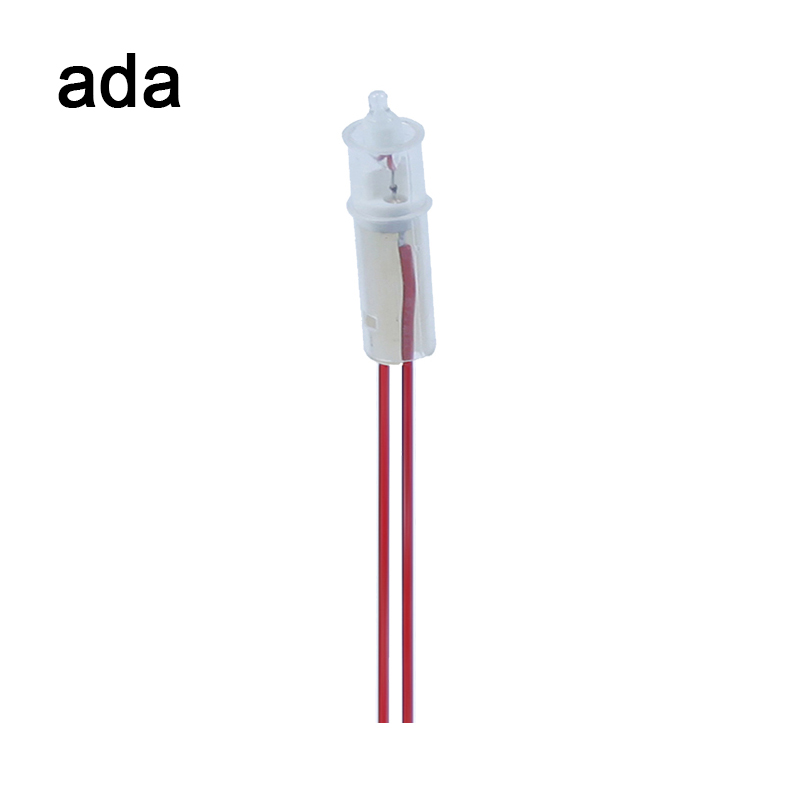

A-06-3 red cable 0.25mm2 pvc 36v malfunction indicator lamp
Click on the image to view the original image
Product： views：3A-06-3 red cable 0.25mm2 pvc 36v malfunction indicator lamp
Branch： ADA
Type： Equipment Indicator Lights
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 18:29
  Negotiated
Product Details
Overview
Quick Details
Type:
Equipment Indicator Lights
Light Source:
LED, Neon lamp,LED,Minature lamp
Input Voltage(V):
3v-400v
Lamp Power(W):
0.3
Lamp Luminous Flux(lm):
60
Lamp Luminous Efficiency(lm/w):
200
CRI (Ra):
80
Color Temperature(CCT):
Different kinds
Beam Angle(°):
diffused
IP Rating:
IP65
Certification:
CE, REACH, RoHS
Emitting Color:
Different kinds
Lamp Body Material:
PC
Place of Origin:
Jiangsu, China
Brand Name:
ADA
Striking Voltage (Vac):
95Max
Current (mA):
2.2mA(max),40mA(max),5mA(max)
Temperature (℃):
T90/T125/T150
Cable:
PVC or Silicone
Life:
25000HRS
lamp type:
NE-2 5*13/5mmLED
Supply Ability
Supply Ability:
20000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
3000-5000pcs/ctn,34*33*27cm,12kgs/ctn
Port
SHANGHAI,NINGBO
Lead Time:
Quantity(Pieces)1 - 2000 >2000
Est. Time(days)20To be negotiated

A-06-3 red cable 0.25mm2 pvc 36v malfunction indicator lamp



1.Main Technical Parameters





ModelA-06-3 mini signal light
Lighting sourceNeon lamp/Filament lamp/LED
Color of lensRed,Orange,Green,Blue,White and Transparent
Voltage3V,6V,12V,24V,110V,230V,400V
Current2.2mA(max),40mA(max),5mA(max)
power0.3w
Rated TemperatureT90/T125/T150
Life

10000/15000/25000HRS



 Every kind of our products has different colors and it"s according to customers.







2.Design Drawing





3.All Product Family



A:Indicator Light



A-06-3 red cable 0.25mm2 pvc 36v malfunction indicator lamp







B:Lighting Source Series

We apply all kinds of our products and we can make according to your samples and technical drawing by opening tools.









LED:In adding to standard led there is the opportunity to have a customized led for the following characteristics:

♦ dimensions

♦ luminous intensity

♦ viewing angle

♦ colour emitted light

♦ lens colour



 Filament Lamp:By request ,we can use filament lamp as lighting source of 6v,12v,24v light indicators.













Wire harness series





4.Our package





5.Our Working Place





6.CE









7.Payment



 T/T is the best ,we also supply L/c



8.Our company









Ordering guide(Indicator light &Signal units)



If you are satisfied with our products and service,please leave us positive feedback and welcome to contact us for the details.



If you are dissatisfied for any reason,plese give us THE OPPORTUNITY TO MAKE THINGS RIGHT before you leave negative/neutral feedback. Your opinions are very important to us.





When enquiry or order,pls choose following items:

Code



Ligh source

Filament lamp

6v/12v/24v



Neon and fluorescent

110/250/400v



LED

3/6/12/24/110/220/400v

Color of lens

White( )  Red( )  Orange( )  Creen( )  Bule( )

Color of lamps

White( )  Red( )  Orange( )  Creen( )  Bule(  )

Cables

Material

( )PVC  ( )SILICONE  ( )Teflon

Section

( )0.25mm2 ( )0.5 mm2 or on request

Length

( )50mm ( )75mm ( )100mm ( )125mm ( )Xmm
Or TABS4.8 or 6.3
Terminal( )Yes ( )No   If yes,please show the terminal photo or drawing
