Home > Products > 220v NE-2H glass indicator neon floor lamp

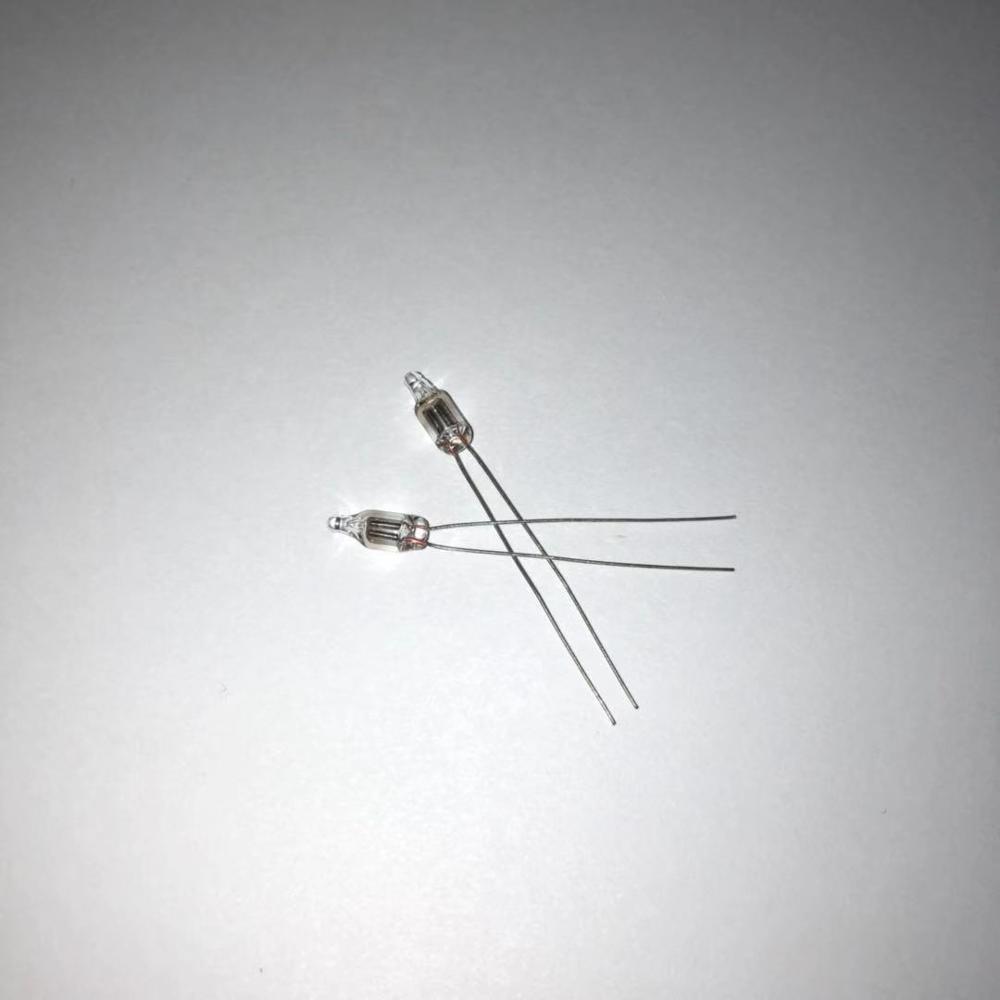

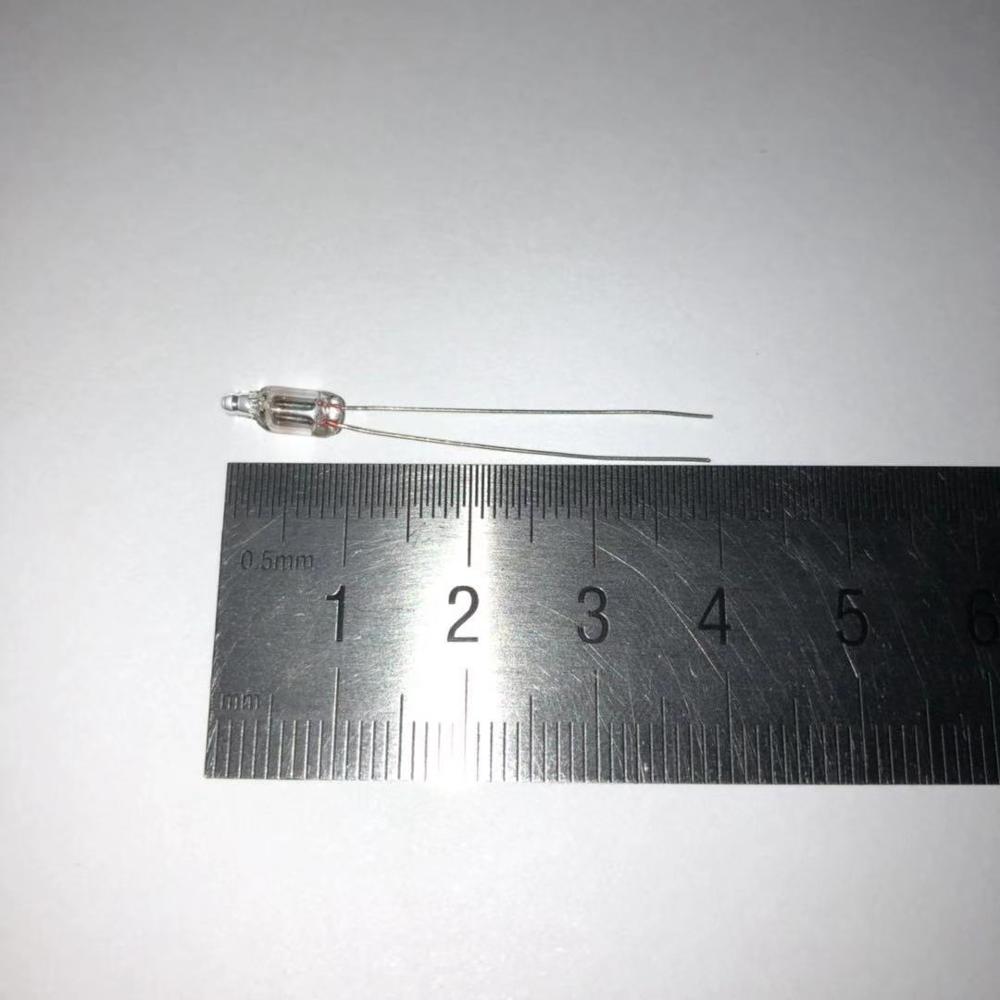

220v NE-2H glass indicator neon floor lamp
Click on the image to view the original image
Product： views：2220v NE-2H glass indicator neon floor lamp
Branch： ADA
Type： 4*10mm,5*13mm,6*13mm etc
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 18:29
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
ADA
Certification:
CE
Color:
Red, Red
Material:
Glass
Coating:
neon
Shape:
neon
Gas Type:
Ne
Input Voltage:
220v
name:
neon tubing
Brightness:
High
Type:
4*10mm,5*13mm,6*13mm etc
Working Volt (max):
According to your request design
Strike volt:
95/135v
Resistor:
150/82/470k
Current(max):
1mA(max)
Specification:
NE-2 series
Life:
25000
Packaging & Delivery
Packaging Details
40000pcs/carton
Lead Time:
Quantity(Pieces)1 - 100000 >100000
Est. Time(days)15To be negotiated

 Original neon bulb NE-2C NE-2 NE-2G indicator neon lamp

Product Description

NO.

Specification

BULB SIZE

LEGS

OPTO ELECTRONIC PARAMETER

SERIES RESISTOR (KΩ)

AVER.

Life

(h)

Diameter (mm)

Length (mm)

Diameter (mm)

Length (mm)

Breakdown voltage (max)

CURRENT (mA)

110~120

V AC

220~250

V AC

AC

DC

1

NE-2 3×10.5

3.2

10.5

0.30

30

65

90

0.3

150

510

25000

2

NE-2 4×10.5

4

10.5

0.35

30

65

90

0.5

100

330

50000

3

NE-2 5×13

5

13

0.40

30

65

90

0.5

100

330

50000

4

NE-2 5×16

5

16

0.40

30

65

90

0.5

100

330

50000

5

NE-2 6×13

6

13

0.40

30

65

90

0.5

100

330

50000

6

NE-2 6×16

6

16

0.40

30

65

90

0.5

100

330

50000

7

NE-2 6×18

6

18

0.40

30

65

90

0.5

100

330

50000

8

NE-2 6×20

6

20

0.40

30

65

90

0.5

100

330

50000

9

NE-2 6×22

6

22

0.40

30

65

90

0.5

100

330

50000








Company Information







Packaging & Shipping
FAQ

Q1. How can I get examples?
       A:You could get 1-3 pcs each model free samples, but you need bear the freight charge. You could tell us your courier account number or pay us the freight charge. We will send you samples within 7 days via international express, as DHL,FEDEX,UPS,TNT.

Q2. Can you produce according to the samples?
     A: Yes, we can produce by your samples or technical drawings. If we have not the same product, we could recommend you the similar model. We also could make the mould, but you need pay the mould charge.

Q3. What is your terms of payment?
       A: T/T 30% as deposit, and 70% before delivery. We"ll show you the photos of the products and packages before you pay the balance.
Q4. What is your terms of delivery?
       A: EXW, FOB,CIF…
Q5. Do you test all your goods before delivery?
        A: Yes, we have 100% test before delivery.
