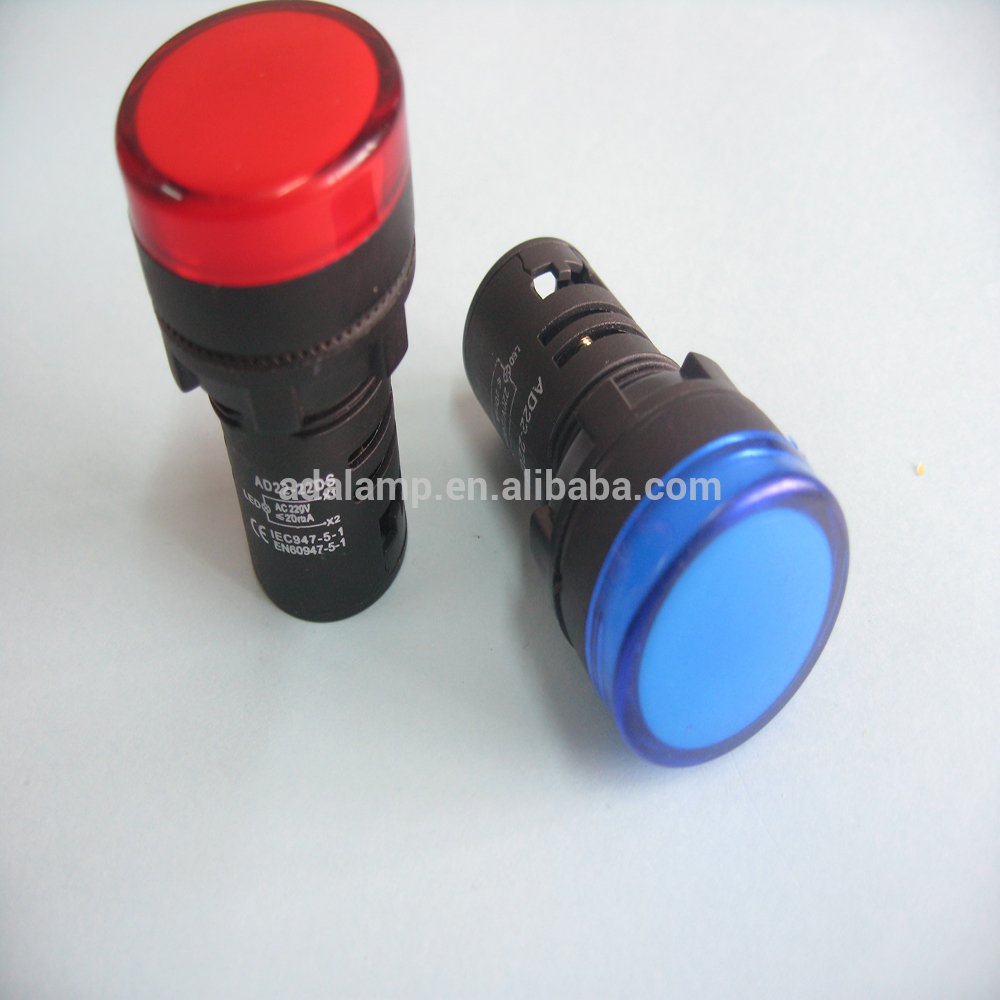

22mm indicator light led 24v pilot light
1.Main Technical Parameters
| Model | AD22-22DS |
| Installment Size | 22mm dia. |
| Lighting source | Neon lamp/Filament lamp/led |
| Color of lens | Red,Orange,Green,Blue,White and Transparent |
| Voltage | 3V,6V,12V,24V,110V,230V,400V |
| Current | 2.2mA(max),40mA(max),5mA(max) |
| power | 0.3w |
| Rated Temperature | T90/T125/T150 |
| Life | 10000/15000/25000HRS |
2.Design Drawing
3.All Product Family
A:Indicator Light Series
22mm indicator light led 24v pilot light
B:Light Source Series
We apply all kinds of our products and we can make according to your samples and technical drawing by opening tools.
LED:In adding to standard led there is the opportunity to have a customized led for the following characteristics:
♦ dimensions
♦ luminous intensity
♦ viewing angle
♦ colour emitted light
♦ lens colour
Filament Lamp:By request ,we can use filament lamp as lighting source of 6v,12v,24v light indicators.
C:Wire harness series
D:Water heater spare parts
4.Our package
5.Our Working Place
6.CE Certificate
7.Payment
T/T is the best ,we also supply L/C
8.The reason to choose us:
1)We have cooperated with famous companies such as philips,our qulity is guaranteed
2)We can provide the best qulity with the best price in our industry
3)We can manufacture as your order and what you want
9.Our company
Yancheng Ada Electronics Co.,Ltd.
International Dept: Room 2103, Jiangsu Yishiyuan Mansion, No.95 North Zhongshan Road,NANJING,JIANGSU,CHINA
ZIP CODE:210029
Factory add: XinXing Industrial Zone, Xinxing Town, Tinghu District,Yancheng, Jiangsu, China
Contact person: Nina
Tel: 0086-25-84692557
Mobile: 0086-13357732200
Fax: 0086-25-84200806
http://www.adalamp.cn
Ordering guide(Indicator light &Signal units)
If you are satisfied with our products and service,please leave us positive feedback and welcome to contact us for the details.
If you are dissatisfied for any reason,plese give us THE OPPORTUNITY TO MAKE THINGS RIGHT before you leave negative/neutral feedback. Your opinions are very important to us.
When enquiry or order,pls choose following items:
Code | ||
Ligh source | Filament lamp | 6v/12v/24v |
Neon and fluorescent | 110/250/400v | |
LED | 3/6/12/24/110/220/400v | |
Color of lens | White( ) Red( ) Orange( ) Creen( ) Bule( ) | |
Color of lamps | White( ) Red( ) Orange( ) Creen( ) Bule( ) | |
Cables | Material | ( )PVC ( )SILICONE ( )Teflon |
Section | ( )0.25mm2 ( )0.5 mm2 or on request | |
Length | ( )50mm ( )75mm ( )100mm ( )125mm ( )Xmm | |
| Or TABS | 4.8 or 6.3 | |
| Terminal | ( )Yes ( )No If yes,please show the terminal photo or drawing | |
