Home > Products > 8mm 5v 24 volt 220 volt signal lamp red led phone call indicator light with pins

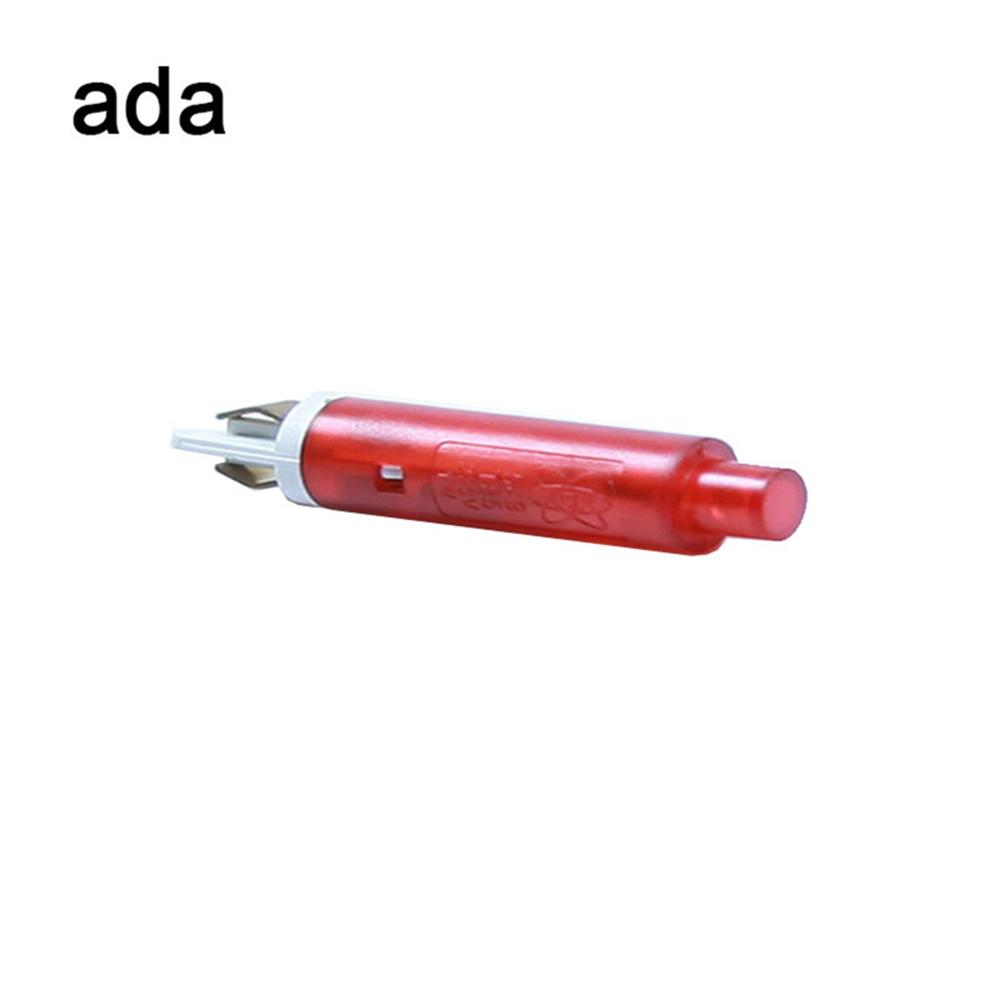

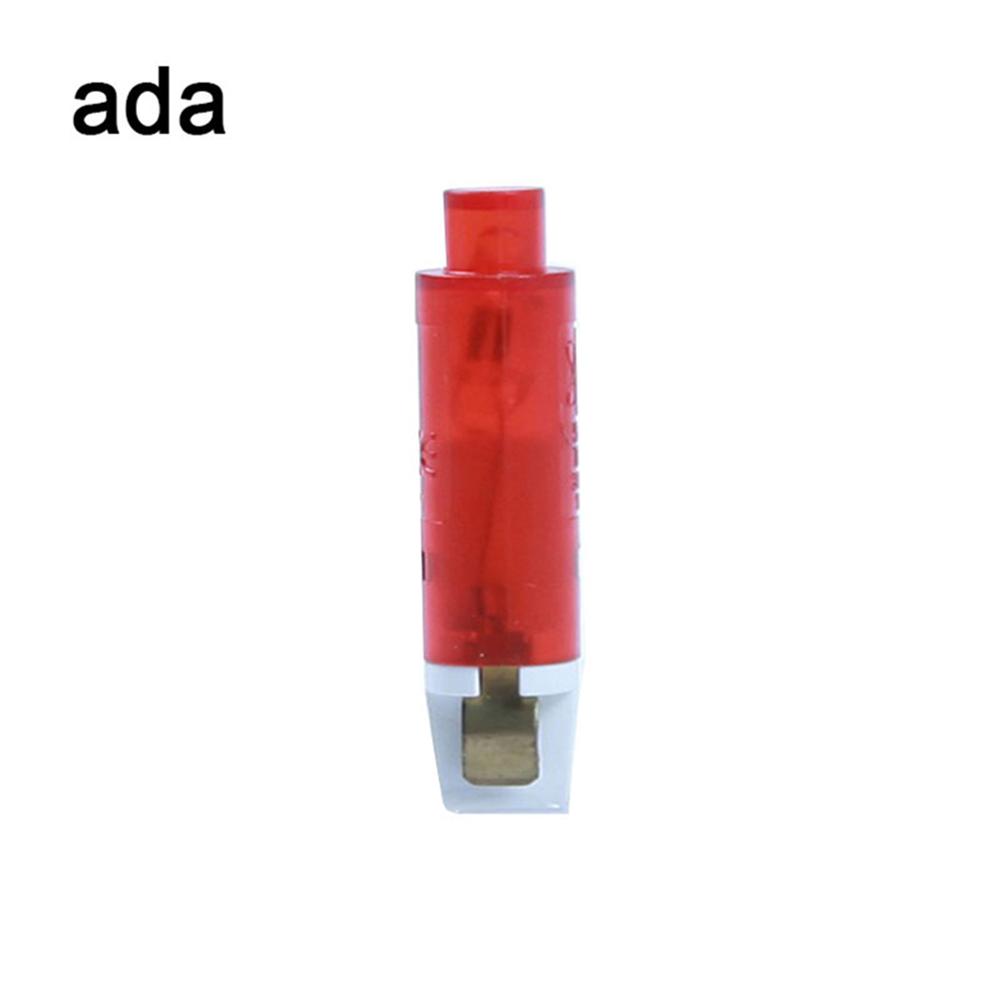

8mm 5v 24 volt 220 volt signal lamp red led phone call indicator light with pins
Click on the image to view the original image
Product： views：48mm 5v 24 volt 220 volt signal lamp red led phone call indicator light with pins
Branch： ADA
Type： Equipment Indicator Lights
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 18:29
  Negotiated
Product Details
Overview
Quick Details
Type:
Equipment Indicator Lights
Light Source:
LED, Neon lamp,LED,Minature lamp
Input Voltage(V):
3v-400v
Lamp Power(W):
0.3
Lamp Luminous Flux(lm):
60
Lamp Luminous Efficiency(lm/w):
200
CRI (Ra):
90
Color Temperature(CCT):
Different kinds
Beam Angle(°):
diffused
IP Rating:
IP65
Certification:
CE, REACH, RoHS
Emitting Color:
Different kinds
Lamp Body Material:
PC
Base Type:
BA9s
Place of Origin:
Jiangsu, China
Brand Name:
ADA
Model Number:
A-13
Panel Hole Size:
8mm
Striking Voltage (Vac):
95Max
Current (mA):
2.2mA(max),40mA(max),5mA(max)
Temperature (℃):
T90/T125/T150
Lamp Type:
NE-2 5*13/5mmLED
Cable:
PVC or Silicone or Teflon
Life:
25000HRS
Supply Ability
Supply Ability:
200000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
2500pcs/ctn,34*33*27cm,12kgs/ctn
Port
SHANGHAI,NINGBO
Lead Time:
200,000PCS can be delivered within 10 days.

8mm 5v 24 volt 220 volt signal lamp red led phone call indicator light with pins

1.Main Technical Parameters



Model A-13
Installment Size8mm dia.
Lighting sourceNeon lamp/Filament lamp/LED
Color of lensRed,Orange,Green,Blue,White and Transparent
Voltage3V,6V,12V,24V,110V,230V,400V
Current2.2mA(max),40mA(max),5mA(max)
power0.3w
Rated TemperatureT90/T125/T150
Life

10000/15000/25000HRS





  Every kind of our products has different colors and it"s according to customers.





2.Design Drawing

3.All Product Family



A:Indicator Light









B:Lighting Source Series

We apply all kinds of our products and we can make according to your samples and technical drawing by opening tools.





LED:In adding to standard led there is the opportunity to have a customized led for the following characteristics:

♦ dimensions

♦ luminous intensity

♦ viewing angle

♦ colour emitted light

♦ lens colour



 Filament Lamp:By request ,we can use filament lamp as lighting source of 6v,12v,24v light indicators.





4.Our package





5.Our Working Place





6.CE





7.Payment



 T/T is the best ,we also supply L/c
