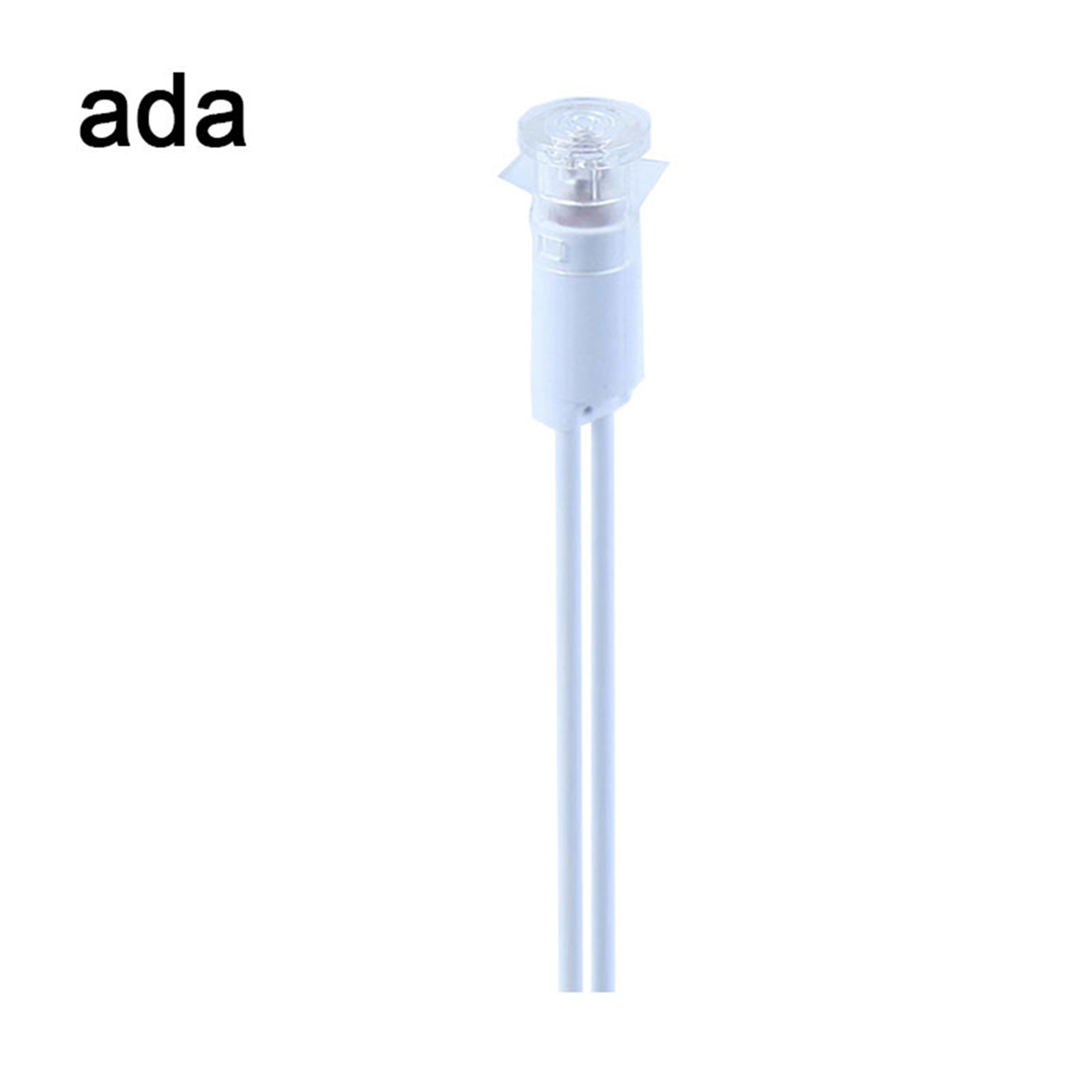

silver wire led string lights lamp holder neon indicator
Click on the image to view the original image
Product： views：4silver wire led string lights lamp holder neon indicator
Branch： ADA
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 18:29
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
China
Brand Name:
ADA
Model Number:
A-34
Application:
Home Appliance
Panel Hole Size:
10mm
Light Source:
Neon lamp,LED,Minature lamp
Striking Voltage (Vac):
95Max
Current (mA):
2.2mA(max),40mA(max),5mA(max)
Temperature (℃):
T90/T125/T150
Lamp Type:
NE-2 5*13/5mmLED
Cable:
PVC or Silicone or Teflon
Life:
25000HRS
Supply Ability
Supply Ability:
200000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
2000pcs/ctn,34*33*27cm,12kgs/ctn
Port
SHANGHAI,NINGBO
Lead Time:
Quantity(Pieces)1 - 5000 >5000
Est. Time(days)25To be negotiated

1.Main Technical Parameters





Model A-34
Installment Size9mm dia.
Lighting sourceNeon lamp/Filament lamp/LED
Color of lensRed,Orange,Green,Blue,White and Transparent
Voltage3V,6V,12V,24V,110V,230V,400V
Current2.2mA(max),40mA(max),5mA(max)
power0.3w
Rated TemperatureT90/T125/T150
Life

10000/15000/25000HRS





  Every kind of our products has different colors and it"s according to customers.







2.Design Drawing





3.All Product Family



A:Indicator Light



   6mm /7mm/8mm/9mm/10mm dia. indicator light







10mm dia .indicator light



12mm dia. Indicator Light &Signal units series



 B:Lighting Source Series





We apply all kinds of our products and we can make according to your samples and technical drawing by opening tools.







LED:In adding to standard led there is the opportunity to have a customized led for the following characteristics:

♦ dimensions

♦ luminous intensity

♦ viewing angle

♦ colour emitted light

♦ lens colour



 Filament Lamp:By request ,we can use filament lamp as lighting source of 6v,12v,24v light indicators.













4.Our package









5.Our Working Place









 6.Certificate



7.Payment



 T/T is the best ,we also supply L/c



8.Our company



Yancheng Ada Electronics Co.,Ltd.
International Dept: RM1208 TIANCHENG MANSION, NO.199 GUANGZHOU ROAD, NANJING,JIANGSU,CHINA ZIP CODE:210029
Factory add: XinXing Industrial Zone, Xinxing Town, Tinghu District,Yancheng, Jiangsu, China
Contact person: Jenna
Tel: 0086-25-84692557
Mobile: 0086-17715254524
Fax: 0086-25-84200806
http://www.adalamp.cn



Ordering guide(Indicator light &Signal units)







If you are satisfied with our products and service,please leave us positive feedback and welcome to







 contact us for the details.







If you are dissatisfied for any reason,plese give us THE OPPORTUNITY TO MAKE THINGS RIGHT before







you leave negative/neutral feedback. Your opinions are very important to us .







When enquiry or order,pls choose following items:



Code



Ligh source

Filament lamp

6v/12v/24v



Neon and fluorescent

110/250/400v



LED

3/6/12/24/110/220/400v

Color of lens

White()  Red()  Orange()  Creen()  Bule()

Color of lamps

White()  Red()  Orange()  Creen()  Bule()

Cables

Material

()PVC  ()SILICONE  ()Teflon

Section

()0.25mm2 ()0.5 mm2 or on request



Length





()50mm 75mm 100mm 125mm ()Xmm



Or TABS



4.8 or 6.3



Terminal



()Yes ()No If yes,please show the terminal photo or drawing
