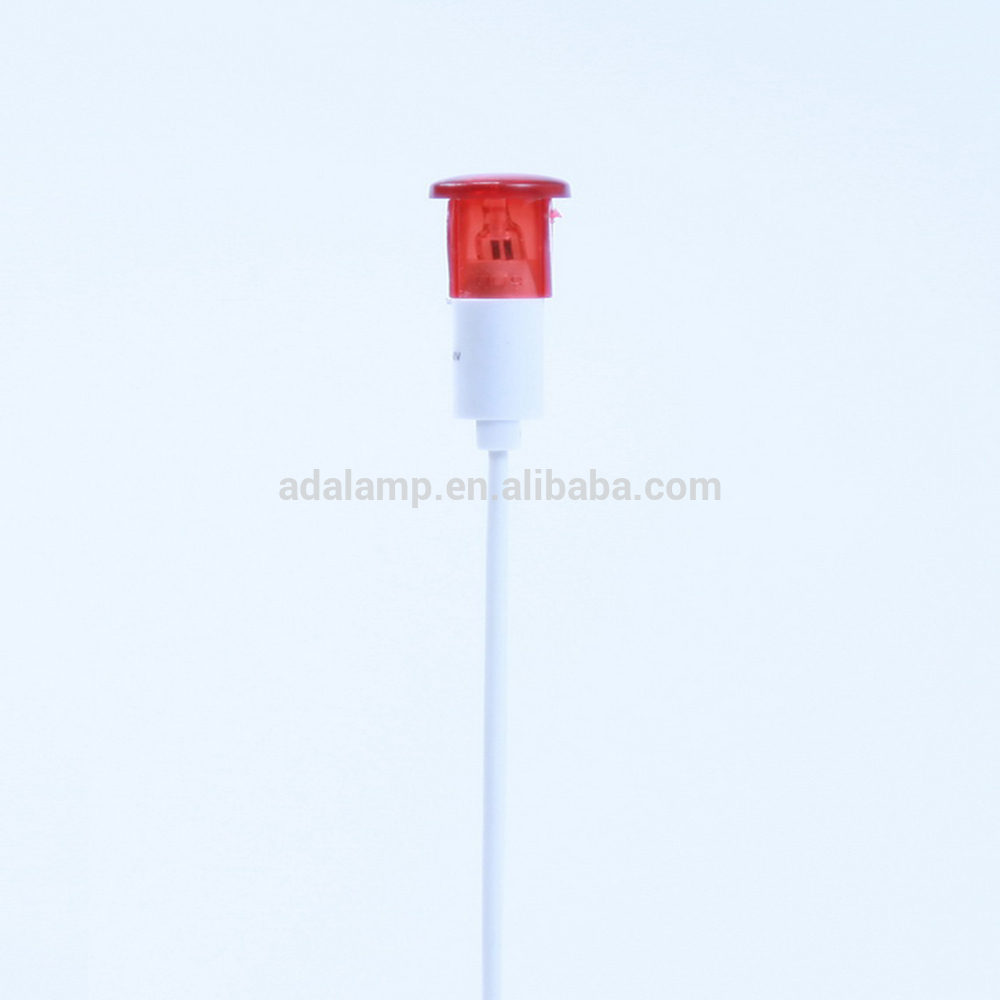

10mm dia. A-21-1 Neon Led Indicator Lamps
| CHARACTERISTICS of Neon Led Indicator Lamps | ||||||||
| LIGHT SOURCE | NEON LAMP,LED,MINATURE LAMP | |||||||
| WORKING VOLTAGE | VAC | 3V-400V | ||||||
| STRIKING VOLTAGE | VAC | 95Max | ||||||
| CURRENT | mA | 2.2mA(max),40mA(max),5mA(max) | ||||||
| LIFE HOURS | h | 25000 | ||||||
| TEMPERATURE | °C | T90/T125/T150 | ||||||
| APPROVALS | CE | |||||||
| COMPONENTS | ||||||||
| LAMP TYPE | NE-2 5*13/5mmLED | |||||||
| BODY | PC | |||||||
| LENS | RED or according to customer requirements | |||||||
| CABLE | PVC or Silicone or Teflon | |||||||
| TERMINALS | According to customer requiremetns. | |||||||
| Our type | A-21-1 | |||||||
| Package Details | ||||||||
| Package | 2000pcs/ctn | |||||||
| Meas.: | 0.03cbm/ctn | |||||||
| G.W.: | 12kgs/ctn | |||||||
When enquiry or order, pls choose following items:
Working Volt. | Miniature lamp | 6 / 12 / 24 V | |
Neon and fluorescent | 110 / 250 / 400 V | ||
Colour Cap | WHITE RED ORANGE GREEN BLUE | ||
Cables | Material | ( ) PVC ( )SILICONE | |
Diameter | ( )0.3 mm 2 ( )0.5 mm 2 | ||
Length | ( )50mm ( )75 mm ( )100 mm ( )125 mm ( )X mm | ||
Terminal | ( ) Yes ( ) No if yes, pls show the terminal photo or drawing | ||
Technical specifications and order instructions of neon indicators:
Maximum striking voltages for light sources neon lamps
Standard brightness types 65Vac 90Vdc
High brightness types 85Vac 135Vdc
Life for light sources neon lamps:
Typically 25000hrs(green lamp 15000hrs),(measured to a point when light output is a point when light output is a harf of that of its original level),the end of life is not usually a sudden failure.
Order instruction:
For orders,pls indicate:Type reference,maximum temperature of use or its key,voltage,color of lens and lamps,connection means(tabs6.3*0.8 or 4.8*0.8;cable pvc or silicone,cable length).
If not existing type,we can make according to your samples and technical drawing by opening toolings.
If you require special plastic parts,current,voltage,you can inform us,we can design it according to your requirments.
Yancheng Ada Electronics Co.,Ltd.
International Dept: Room 2103, Jiangsu Yishiyuan Mansion, No.95 North Zhongshan Road,NANJING,JIANGSU,CHINA
ZIP CODE:210029
Factory add: XinXing Industrial Zone, Xinxing Town, Tinghu District,Yancheng, Jiangsu, China
Contact person: Jenna
Tel: 0086-25-84692557
Mobile: 0086-17715254524
Fax: 0086-25-84200806
http://www.adalamp.cn
Ordering guide(Indicator light &Signal units)
If you are satisfied with our products and service,please leave us positive feedback and welcome to contact us for the details.
If you are dissatisfied for any reason,plese give us THE OPPORTUNITY TO MAKE THINGS RIGHT before you leave negative/neutral feedback. Your opinions are very important to us.
When enquiry or order,pls choose following items:
Code | ||
Ligh source | Filament lamp | 6v/12v/24v |
Neon and fluorescent | 110/250/400v | |
LED | 3/6/12/24/110/220/400v | |
Color of lens | White( ) Red( ) Orange( ) Creen( ) Bule( ) | |
Color of lamps | White( ) Red( ) Orange( ) Creen( ) Bule( ) | |
Cables | Material | ( )PVC ( )SILICONE ( )Teflon |
Section | ( )0.25mm2 ( )0.5 mm2 or on request | |
Length | ( )50mm ( )75mm ( )100mm ( )125mm ( )Xmm | |
| Or TABS | 4.8 or 6.3 | |
| Terminal | ( )Yes ( )No If yes,please show the terminal photo or drawing | |
