Led non-maintained 1*3w emergency conversion kit
for led downlight,led spot light and so on...,EPMO1700N-1
Product introduction:
EPMO Series: For 3W 1LED Load
EPMO converter is designed for use in emergency luminaries in conjunction with one LED and LED control gear led luminary manufacturers.The forward voltage range of 2.7v to3.6v makes it ideal for use with most one led luminaries.
EPMO1700N-1 can provide maximum 700mA LED current in emergency mode and the forward voltage range of 2.7v to 3.6v.
The modules provide constant current output LED current to load, provide maximum illumination whilst ensuring full battery duration.
IEC(EN)61347-2-7
IEC(EN)60598-2.22
EN55015
EN61000-3-2
EN61000-3-3
EN61547
Standard Feature:
Item No.EPMO1700N-1
| Led non-maintained 1*3w emergency conversion kit/Dc Dc inverter |
| One hour Duration |
| Emergency lighting LED driver for manual testing |
| Compatible with all dimmable and non-dimmable constant current LED driver (refer to LED driver compatibility) |
| Automatic shutdown of output if LED load is out of range |
| Constant power output |
| Maximum light output for all LED modules |
| Electronic charge system |
| Deep discharge protection |
| Short-circuit-proof battery connection |
| Polarity reversal protection for battery |
General Specification:
| Product name | Led non-maintained 1*3w emergency conversion kit/Dc Dc inverter |
| Item No. | EPMO1700N-1 |
| Rated supply voltage | 100-130VAC 50/60Hz or 220-240VAC 50/60Hz |
| Led module forward voltage range | 2.7-3.6v |
| Duration | One hour |
| Operation | Non-maintained(switchable maintained with external driver) |
| Battery | Ni-Cd 4.8v 1200mah |
| Charge current | 120mA |
| Recharge period | <24Hrs |
| Output power | 2.4W |
| Test @ Indicators | M7 switch@ Φ5 LED Green:charge |
| Ta | 0-40℃ |
| Type of protection | IP20 |
| Electronial connections | Push wire terminals |
| Product size | 150*40*30MM |
| Pcs/Carton | 50 |

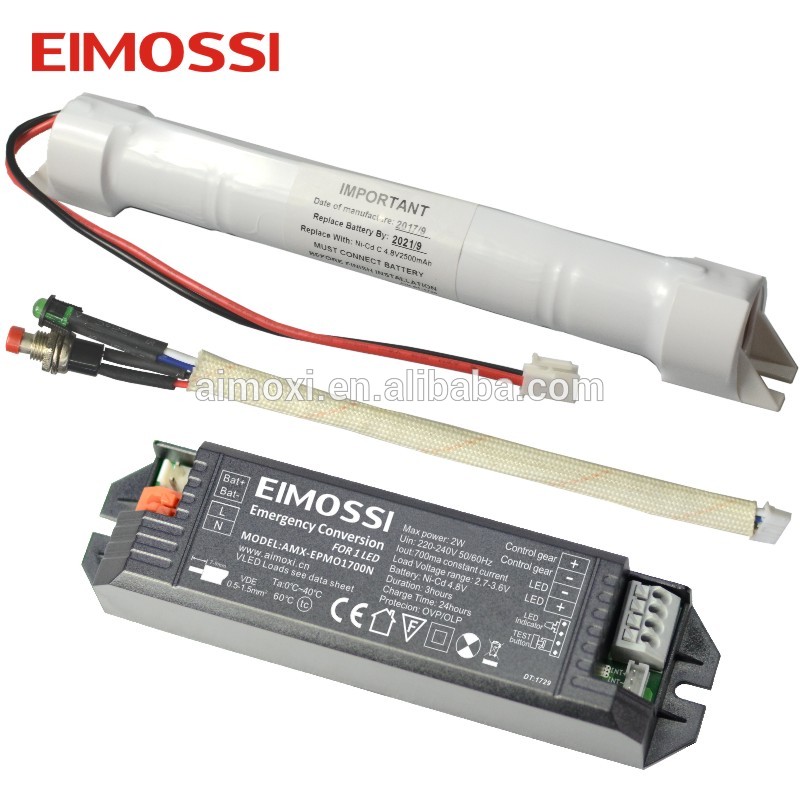

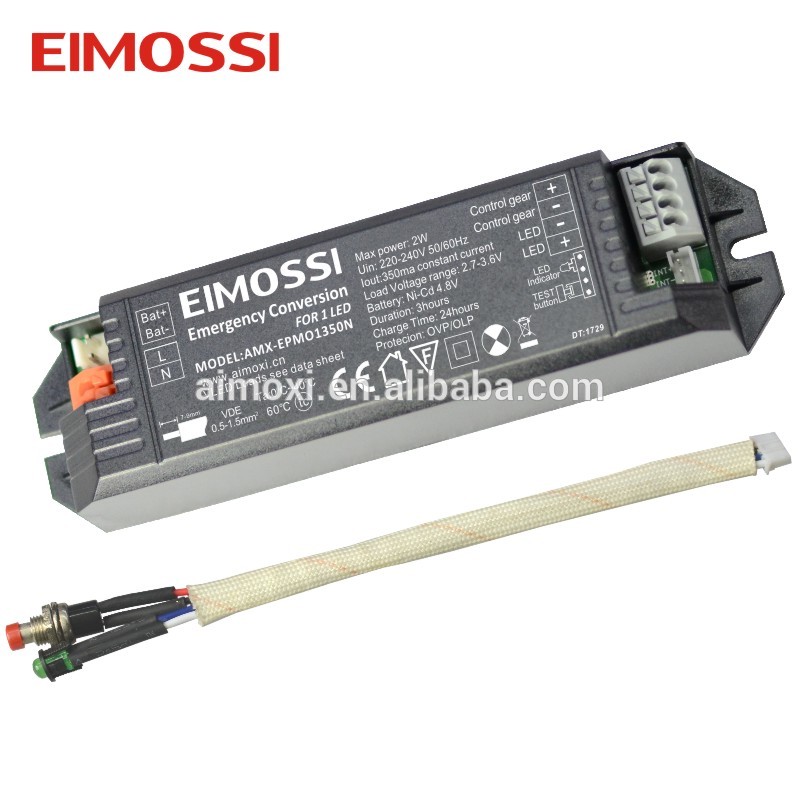

Product pictures:
More items emergency conversion kit for different luminaries provided, details please contact us...
Wiring diagram
