ni-cd backup double sided led exit sign,AMX-EM4060
Description&Features:
Product Description:
The sign comprises a silver anodised aluminium 40mm wide, chain-hanging ,wall mounted and
ceiling mounted, supporting an 5mm acrylic panel is printed with a dot matrix lens effect pattern
and overlaid with two pieces 1mm PMMA diffuser to provide high brilliance and even illumination
over the full surface of the sign , complete with a minimum 3 hour battery backup.
| 1.Alluminum+light guide plate+PMMA diffuser |
| 2.Screen printed legend |
| 3.Adνanced wide angle white LEDs as light source |
| 4.Efficient driver circuit |
| 5.Long-life, maintenance-free, rechargeable Ni-Cd batteries |
| 6.Internal solid-state transfer switch auto matically connects internal batteries to LED board and LED lamp heads for emergency illumination |
| 7.Oνer-charged and oνer-discharged protection |
| 8.85-265VACνoltage operation |
| 9.Provides excellent νiewing distances of 24 meters |
| 10.Standard:EN-60598-2-22 |
| Product name: Aluminium+Acrylic running man led emergency exit sign |
| Product size: 285*210*40mm |
| Duration: 3hours |
| Light source: 24Pcs SMD LED |
| Operation: Maintained/Non-maintained |
| Power source: 85-265VAC~50/60Hz |
| Recharge period: 24hours |
| Color Temperature: White |
| LED lifetime: >50,000 Hrs |
| Battery: Ni-cd 3.6v 800mah |
| Panel: 5mm light guide plate+2*1mm PMMA diffuser |
| Test: M3 push on button |
| Indicators: Φ3 LED Green:charge |
| Working temperature: 0°C~40°C |
| Average lifetime without any errors: >5,000 Hrs |
| IP Rating: IP20 |
| Suited for: Indoor |
| Package: A PP bag and a inner box for per piece.Also may be packed per the customer requirements |

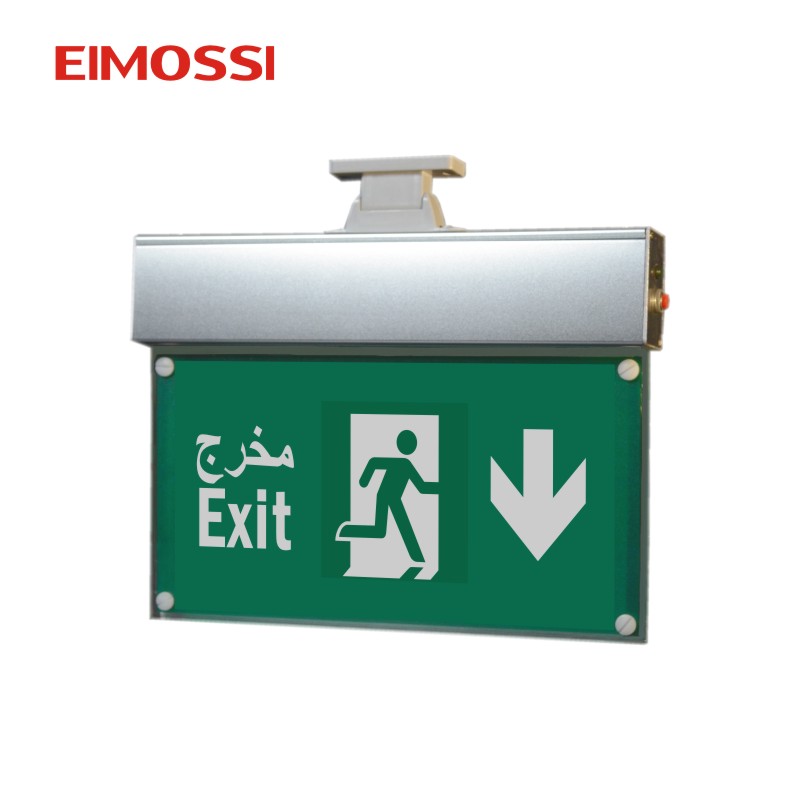

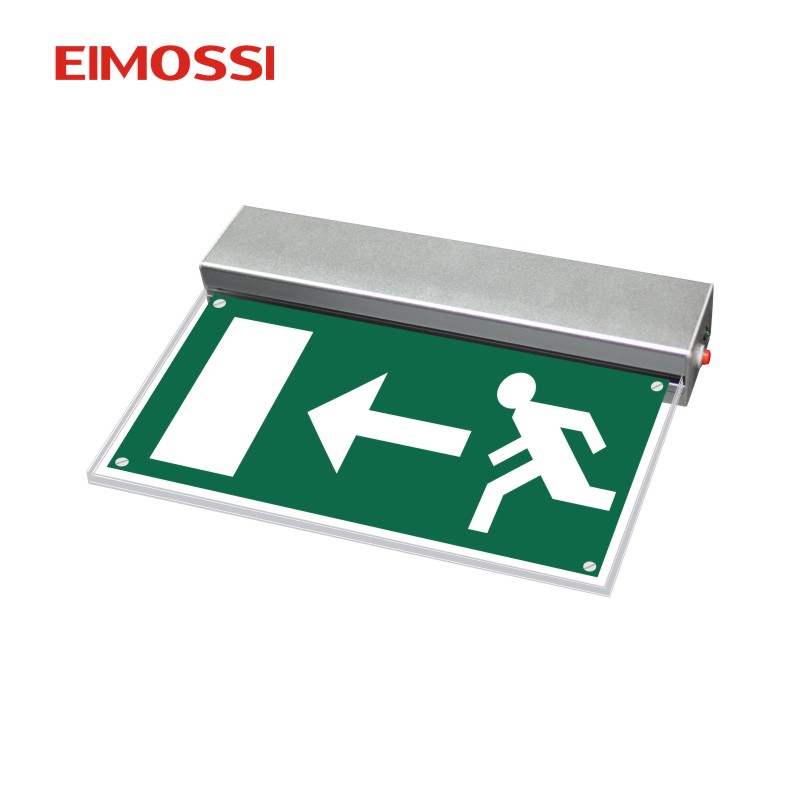

Product Pictures:
wall/suspended backup fire light led exit lighting
Legends:
Packaging Information:
| Dimension: 285*210*40mm |
| Accessories: 2 pieces of replaceable pictogram design |
| Package: a bag+inner box for per piece, 10 pcs put into an carton |
| Package size: 300*240*410mm(0.0295M3) |
| N.W.: 9.5KG |
| G.W.: 10.5KG |
H.S.:94054090.00 |
Accessories:
More products related:
Company Information:
FAQ:
1.Are you a factory or trading company?
We are a factory.
2.Could you print our own LOGO?
We can print your LOGO,welcome OEM.
3.Can I get a sample order for testing? How can I get it?
Yes,welcome sample order to test and check quality.Contact us online or send us email.
4.Which shipping methods are available?
We usually ship by DHL.UPS.FEDEX or TNT and by sea.
5.How about the lead time and delivery time of my order?
Lead time is 15-35 working days according the detail order;
6.How to order?
Please contact us online or send us email,we will send you PI.After payment,we will arrange produce your goods.
7.About warranty?
Our warranty period is one year for battery and two years for others.
