Home > Products > Plastic Bulkhead IP65 Fire light 1H 7W 3.6V led exit lighting

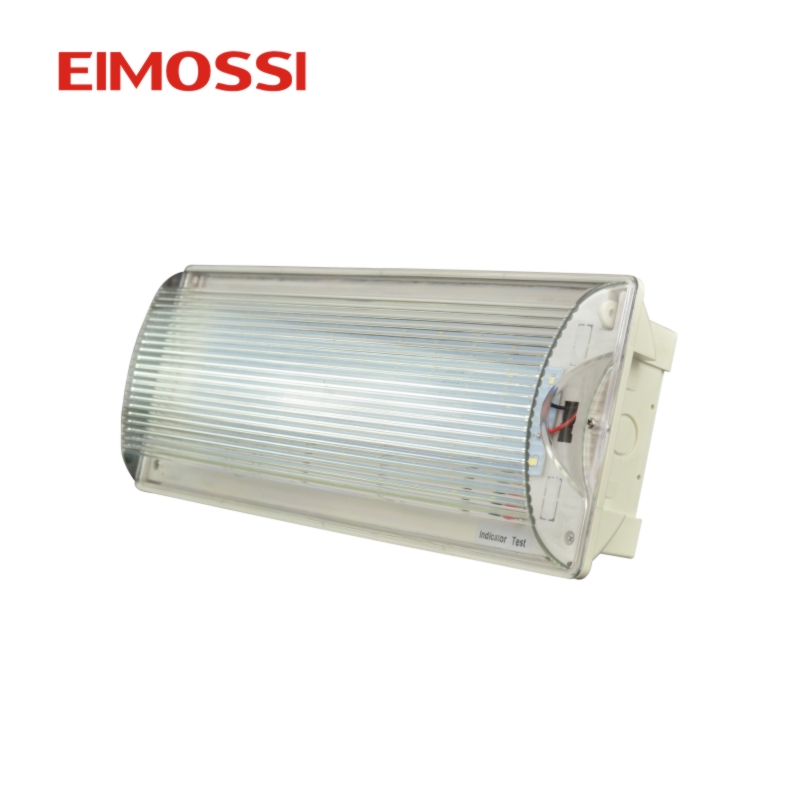

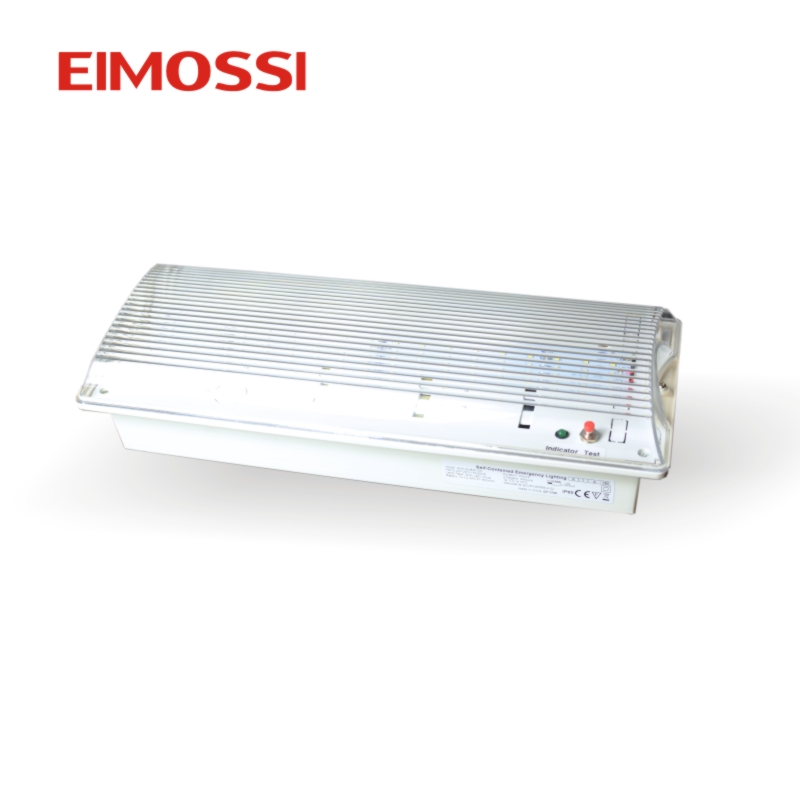

Plastic Bulkhead IP65 Fire light 1H 7W 3.6V led exit lighting
Click on the image to view the original image
Product: views:2Plastic Bulkhead IP65 Fire light 1H 7W 3.6V led exit lighting
Branch: EIMOSSI
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-11-19 19:18
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
EIMOSSI
Bulb Type:
LED
Battery Type:
Ni-Cd
Material:
Plastic
Usage:
Emergency light
Certification:
CE
Specifications:
7W
Product Name:
Bulkhead Waterproof 1H 7W 3.6V Maintained emergency exit light
Input Voltage:
110-127VAC 50/60 Hz OR 220-240VAC 50/60HZ
Light Source:
33pcs LED
Operation:
Maintained
Usage surounding:
IP65
Charge time:
24 Hours
Emergency Time:
60 Minutes
Application:
Security
Function:
Power Failure
Warranty:
2 Year
Supply Ability
Supply Ability:
200000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Plastic Bulkhead IP65 Fire light 1H 7W 3.6V led exit lighting
1.package:carton
2.package size:0.48*0.38*0.31M(0.057CBM)
3.10PCS/Carton
Port
zhongshan
Specification
Information
Plastic Bulkhead IP65 Firelight led exit lighting
input voltage
220-240VAC~50/60Hz
material
7W
light color
White
light source
33Pcs SMD LED
emergency time
60min
Battery
Ni-Cd  3.6V  AA 600Mah
warranty
2 years
Product Description

Product Details

Plastic Bulkhead IP65 Firelight led exit lighting.This waterproof bulkhead emergency light is sound water, wall/suspended mounting.PC clear diffuser with self-adhesive EXIT legend.Complete with a minimum 1 hours battery backup.

Product size: 355*135*85mm

Suited for: Indoor or outdoor

IP Rating: IP65

Product Details

Advanced wide angle white 33 SMD LEDs as a light source.
Efficient driver circuit.

Color Temperature: White
LED lifetime: >50,000 Hrs

Provides excellent viewing distances of 24 meters


Product Details

Long-life, maintenance-free, rechargeable Ni-cd batteries;

Internal solid-state transfer switch automatically connects internal batteries to LED board and LED lamp heads for emergency illumination;

Over-charged and over-discharged protection;

Innovative,Snap-together design for fast and easy installation

Product Details

SELV classified(outputs LED,batteries,status LED,test switch)

Wall/Suspended mounting


Packaging Information:

Product Dimension: 355*135*85mm
Package: a bag+inner box for per piece,                                                     10 pcs put into an carton

Package size: 480*380*310mm(0.057CBM)

N.W.: 7.8KG

G.W.: 9.2KG

H.S.:94054090.00

Plastic Bulkhead IP65 Fire light led exit lighting
AMX-ELB3513/E/N/60
AMX-ELB3513/E/M/60
AMX-ELB3513/E/N/180
AMX-ELB3513/E/M/180
Light source
33 SMD LEDs
33 SMD LEDs
33 SMD LEDs
33 SMD LEDs
Power
7W
7W
7W
7W
Input Voltage
220-240VAC~50/60Hz
220-240VAC~50/60Hz
220-240VAC~50/60Hz
220-240VAC~50/60Hz
Operation
Non-maintained
Maintained
Non-maintained
Maintained
Duration
1 H
1 H
3 H
3 H
Color Temperature
White
White
White
White
Recharge  time
24 H
24 H
24 H
24 H
Battery
Ni-Cd 3.6V AA600mah
Ni-Cd 3.6V AA600mah
Ni-Cd 3.6V 1500mah
Ni-Cd 3.6V 1500mah
Test
M7 push on button
M7 push on button
M7 push on button
M7 push on button
Indicators
Φ5 LED Green:charge
Φ5 LED Green:charge
Φ5 LED Green:charge
Φ5 LED Green:charge
Dimension
355*135*85mm
355*135*85mm
355*135*85mm
355*135*85mm
Working temperature
0°C~40°C
0°C~40°C
0°C~40°C
0°C~40°C
Lifetime without any errors
>5,000 Hrs
>5,000 Hrs
>5,000 Hrs
>5,000 Hrs
IP Rating
IP65
IP65
IP65
IP65
Installation Process
More products
Certifications
Company Information
FAQ

Q1.Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 4-5 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
