Factory direct sale illuminated laser warning signs Wholesale
Product Detail
| Product Name | For hospital warning messages x-ray in use led backlit sign |
| Light Source | LED |
| Input Voltage | 120-277VAC,100-240VAC,DC24V |
| Color | White |
| Function | Backlit illuminated sign |
| Control Method | Switch or External relay |
| Usage | Hospital,school,office,test room etc. |
| Installation | Wall mounted |
| life time | Over 50000 hours |
| Warranty | 1 Year |
Product Description:
Always Viewable messages when not illuminated
Different colors are available
Input DC24V,AC230V,AC110V for choice
Super brightness and energy-saving
Long-life save costs year after year
Reproduce Logo"s, graphics, symbols and custom messages
Applied For hospital,test room,test centre,school,research institute,university,laboratory

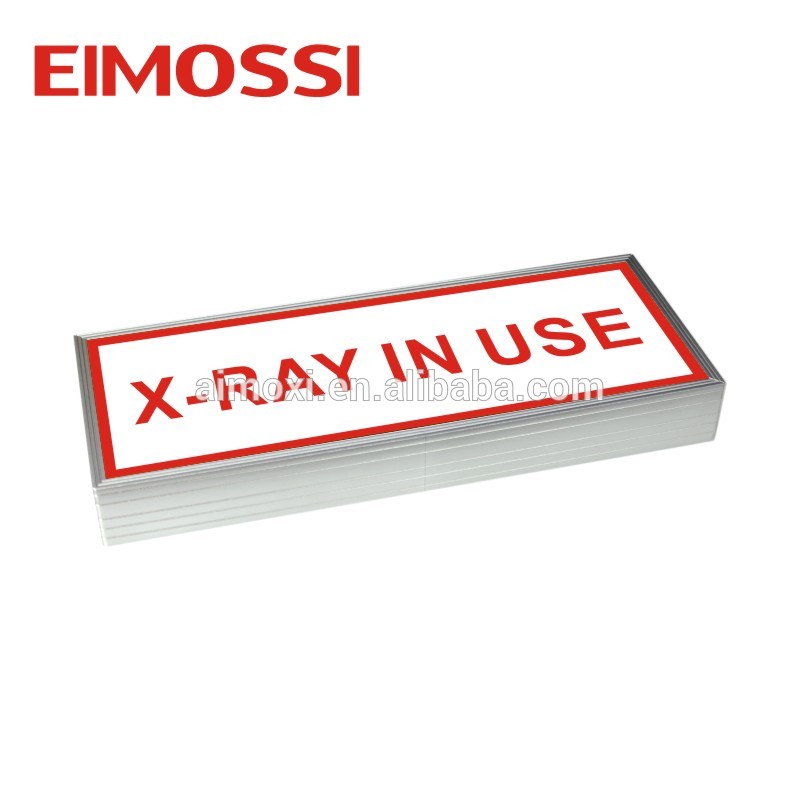

| Product name: LED LIGHT X-RAY IN USE SIGN |
| 1.Slim-Line LED Backlit Signs to display bright, bold messages when lighted and "Always Viewable" messages when not illuminated |
| 2.Sturdy one-piece, corrosion-resistant aluminum frame cabinet in duranodic bronze finish; Custom frame colors are available |
| 3.Indoor-rated signs using energy efficiently,high-intensity LED backlit illumination, saves consumers in operating costs year after year |
| 4.Display almost any message in bright, vivid colors of letters on a white background Frosted Finish |
| 5.Reproduce logo"s, graphics, symbols and custom messages |
| 6.Led"s offer a long service life...over 50,000 hours |
| 7.Optional feature: 3 in 1 dimming function(dim-to-off) or automatic variable brightness or controlled by an external 24VDC supply |
| 8.Typical uses include safety critical areas, professional practices such as dentists"and doctors"surgeries, hospitals, hotels, offices, airports or banks and much more |
| 9.Suited for: Indoor |
| 10.Package: A PP bag and an inner box for per piece.Also, may be packed per the customer requirements |
Product Specification:
| Product name: X-RAY in use |
| Operating Voltage: 120-277VAC 40~60HZ/100-240VAC 50~60HZ/24VDC |
| Power: 14W(MAX) |
| Light source: SMD LED |
| Control Method: 1.SW: Switch or External relay;2.DIM: 0-10V/PWM/Resistance |
| Function options: (only ac sw control method) AVB: Automatic variable brightness |
| Face: Single Face |
| Area available for legend: 442*162mm |
| LED lifetime: >50,000 Hrs |
| Dimension: 460*180*55mm |
| IP Rating: IP20 |
| Suited for: Indoor |
| Package: A PP bag and an inner box for per piece.Also, may be packed per the customer requirements |
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
