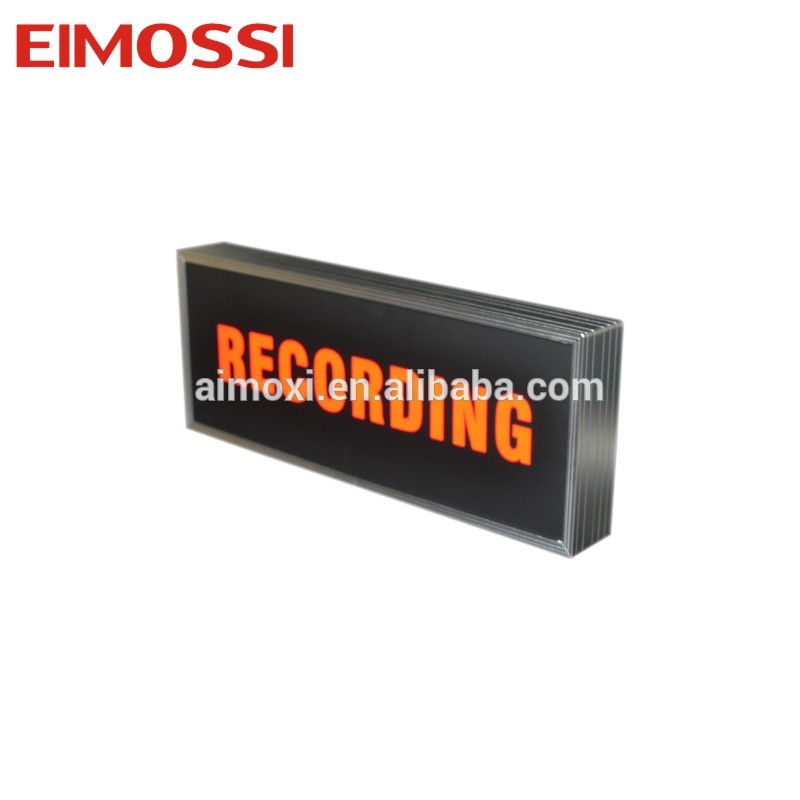

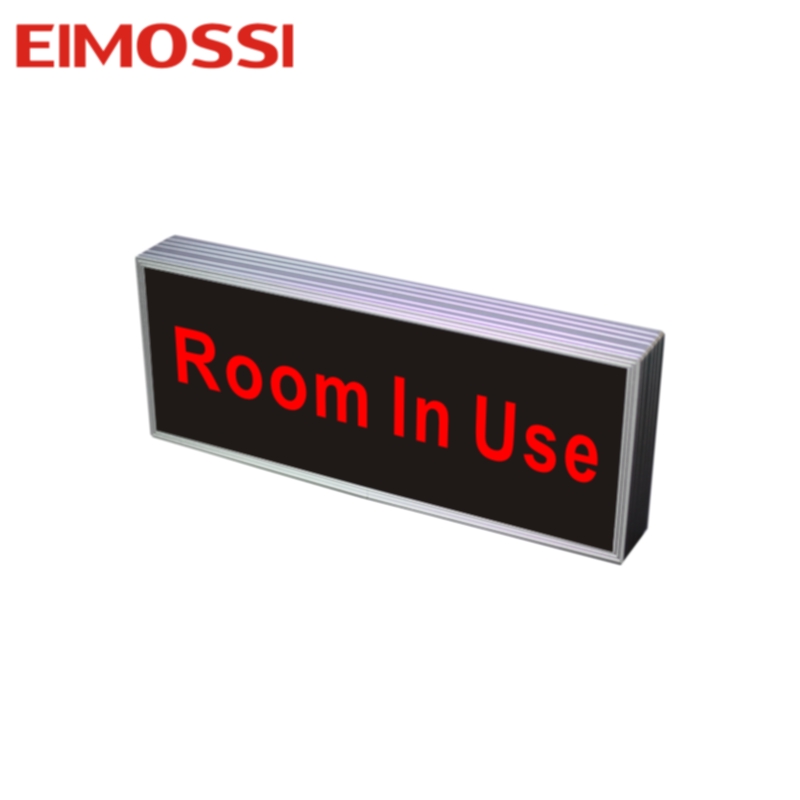

Redation on,Recording or General Indicator Light
1.Slim-Line LED Backlit Signs to display bright, bold messages when lighted and "Blank-Out" to show no messages when
not illuminated
2.Sturdy one-piece, corrosion-resistant aluminum frame cabinet in bronze finish; Custom frame colors are available
3.Indoor-rated signs using energy efficiently,high-intensity LED backlit illumination, saves consumers in operating costs
year after year
4.Display almost any message in bright, vivid colors of letters on a black background
5.Reproduce logo"s, graphics, symbols and custom messages
6.Led"s offer a long service life...over 50,000 hours
7.Optional feature: 3 in 1 dimming function(dim-to-off) or automatic variable brightness or controlled by an external
24VDC supply
8.Typical uses include safety critical areas, professional practices such as dentists"and doctors"surgeries, hospitals,
hotels, offices, airports or banks and much more
Item | Prduct Size | Display Area | Display Method | Color | Input Volts | Control Method | Function Options | Installation |
AMX-ISOB4618SW | 460*180mm | 442*162mm | Black face when turned off | One Color | AC110/220V DC12V/DC24V | Switch or External relay | - | Wall mounted |
AMX-ISOB4618AVB | 460*180mm | 442*162mm | Black face when turned off | One Color | AC110/220V DC12V/DC24V | Switch or External relay | Automatic variable brightness | Wall mounted |
AMX-ISOB4618DIM | 460*180mm | 442*162mm | Black face when turned off | One Color | AC110/220V DC12V/DC24V | Dimming-to-Off | - | Wall mounted |
| Dimension: 460*180*55mm |
| Package: a bag+inner box for per piece, 6 pcs put into an carton |
H.S.:94054090.00 |
