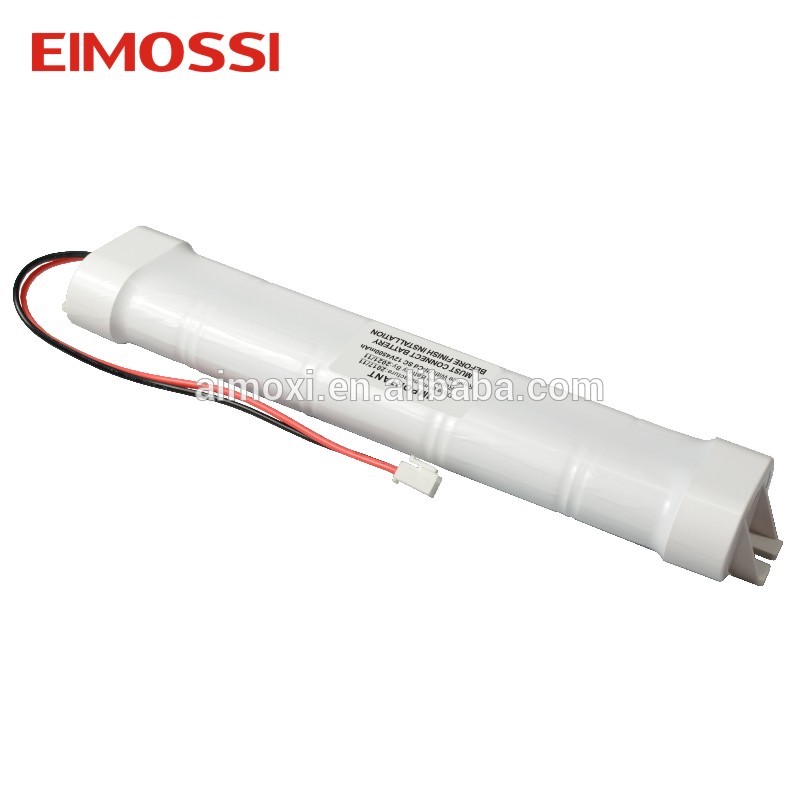

1-3H battery pack led emergency for light 6-60W With External Led Driver OUTPUT 0.45A 15-85v

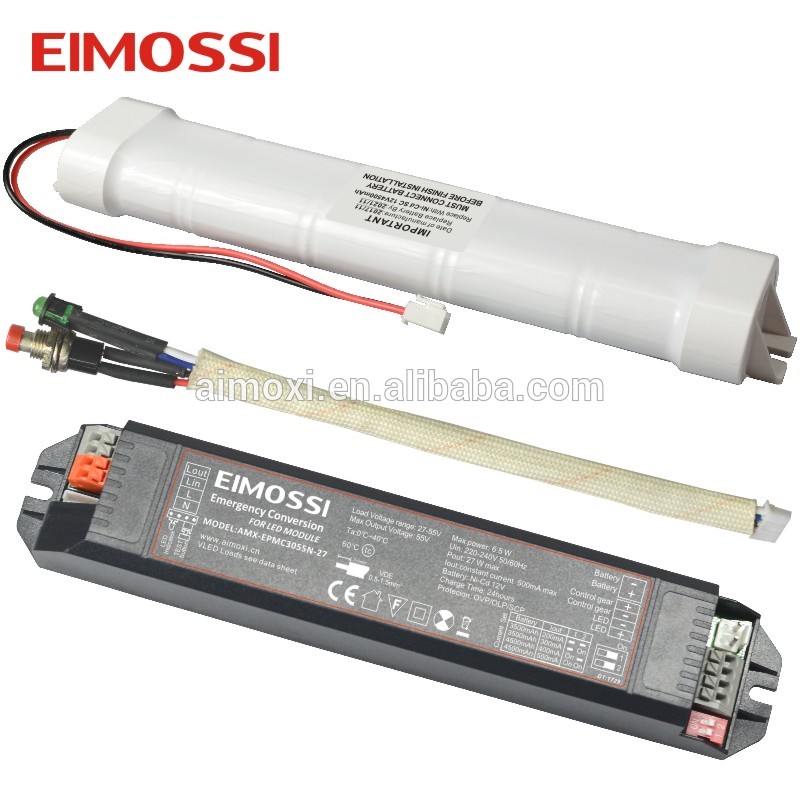

EPMC converter is designed for use in emergency luminaries in conjunction with LED modules and LED control.The lorward voltage range 15V to85V makes it ideal for use with most  LED modules.

EPMC series provides 4 kinds of emergency outputcurrent selection

            3085 N,3085N-10/12/14/16( DIP set100-200-300-400-500-600-700-800mA )

According to the requirements of the output power in emergency mode,through the external DIP switch setting.The modules are designed to be installed by breaking into the  low  voltageconnection betweenthe mains LED Driver and the LEDs and allows the LEDs to be operated as normal under mains healthy condi­ tions and operated atreduced light output in an emergency. The modules automatically adjusts the output LED power to provide the best match between the battery and the load,providing maximum illumination whilst ensuringlull battery duration and are compatible with a wide range of lighting

Standard Feature

3H duration

Emergency lighting LED Driver for manual testing

-Compatible with all dimmable and non-dimmable constant current LED Driver

2-pole technology: 2-poleLED module changeover and delayed power switching for the LED Driver

-Automatic shut down of output if LED load is out of range

-constant current power output

Maximum light output for all LED modules

Electronic charge system

-Deep discharge protection

-Short-circuit-prool battery connection

Polarity reversal protection for battery

TECHNICAL SPECIFICATION

1 Input voltage :AC220V - 240V, 50-60Hz
2 Normal function Indicating LED Equipped15-55VDC range
2 Emergency Function Testing Device Equipped
3 Emergency Time 3 hours
4 Battery Protection Device Equipped
5 Operating Temp 0 ~ 40℃
6 Battery High Temp Battery Pack, NI-CD battery
7 Charging Time 24 hours
8.Applications: LED light 60W or below

Applications

• Corridor/Stairs
• Washroom
• Warehouse
• Parking underground
• Cookroom/balcony
• Schools, Colleges & Universities
• Hospitals

How to select?

1 STEP:

Check led driver(output voltage and current)

16W/0.24A=66V

2 STEP

Check our emergency conversion kit datasheet and find out the info.

3 STEP

Adjust the DIP switches to select the emergency brightness you want.

All battery capacity meets for 3hours

6-60W 15-85V DIM power Emergency Conversion Kit

R echargeable Emergency Exit Led Light Conversion Kit Rechargeable  High-Quality Emergency Exit Led Light Conversion Kit Rechargeable   Led Emergency Power Supply, Rechargeable Emergency Conversion Kit For Led Tube
