- Support Dimmer:
- Yes
- Input Voltage(V):
- 5-24V
- Lamp Power:
- 360W
- Lamp Luminous Flux(lm):
- 100
- CRI (Ra>):
- 80
- Working Temperature(℃):
- -20 - 45
- Working Lifetime(Hour):
- 50000
- Lamp Body Material:
- Plastic
- Certification:
- CE, RoHS
- Place of Origin:
- Guangdong, China
- Brand Name:
- Allledlight
- Model Number:
- SP108E
- Application:
- HOTEL
- Light Source:
- LED
- SP107E::
- 5-24V Music controller
- Controled Method:
- wificontrol /App control
- Remote Distance:
- 20M
- Max. Load Power:
- 960 pixels
- Applicable Lights:
- led pixel strip
- Product size:
- 85mm*45mm*22mm
- Package:
- White Box
- Material:
- ABS
- Warranty:
- 2 Year
- Support IC Model:
- WS2812 SK6812 SK9822 RGBW APA102 LPD8806
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 9X5X3 cm
- Single gross weight:
- 0.15 kg
- Package Type:
- 500PCS/CTN
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 100 101 - 1000 >1000 Est. Time(days) 1 5 To be negotiated
LED Controller Features:
1) Long distance APP remote control via WIFI;
2) Support routing mode(AP) and LAN connection mode(STA);
3) Support almost every kind of one-wire or two-wire LED driver IC ;
4) Brightness adjustable, With 180 kinds of patterns and 8 kind of color adjustable patterns;
5) Creatively usingfrom-image-to-effect method for user toDIYany effect;
6) Support setting pixel number and segments number, able to control up to 2048pixels;
7) DC5V~24V widerangeworking voltage, preventing reverse connection of power supply;
8) User setting saving;
LED Controller App control:
Both IOS version and Android OS version are available. (hardware should support WIFI)
•Requires IOS version 10.0 or later;
•Requires Android OS version 4.4 or later;
•Search"LedShop"in App Store or Google pay or scan this QR code to download and install the App:
LED Controller Specifications:
Working temperature : -20~60 Degrees Celsius
Working Voltage : DC5V~24V;
Working Current :20mA~130mA;
Remote distance :30 Meters;
Product size : 85mm*45mm*22mm;
Product weight : 40g ;
Certificates : CE, RoHS;
Working Mode and Connecting:
AP(Access Point) mode:Controller and Phone connect directly, controller works as an access point.
Connect steps:
1) When the device is not connected to any WIFI network, power on the controller and wait for 20s and then controller will switch intoAP mode ;
2) In the WIFI setting page,find and connect the controller(named likeSP108E_xxx, the default pin code is 12345678),
3)Open the LED Shop App ,then the controller will be showed on the device list;
*STA(Station) mode:Controller and phone are in one same WIFI network, in this network, users can operate the controller smoothly.
Connect steps:
1)When the device is not connected to any WIFI network,power on the controller,controller will be remain inWait-For-Connet mode for 20 seconds;
2) Make sure that your phone is connected to a WIFI network, Open LED Shop APP, pressing the Add Device button,input the WIFI pin code, then press theOKto confirm and wait for the configure processing finish;
3) When controller successfully enter the WIFI network, it will be showed on the device list;
4) User can select the controller and remove it out of the network by pressing theRemove Device button,then the controller will switch into AP mode.
Package includes:
1x SP108E Bluetooth LED controller
1x 3pin female JST connector
1x Mini screwdriver
1x User manual
This device does not work under 5 ghz wifi

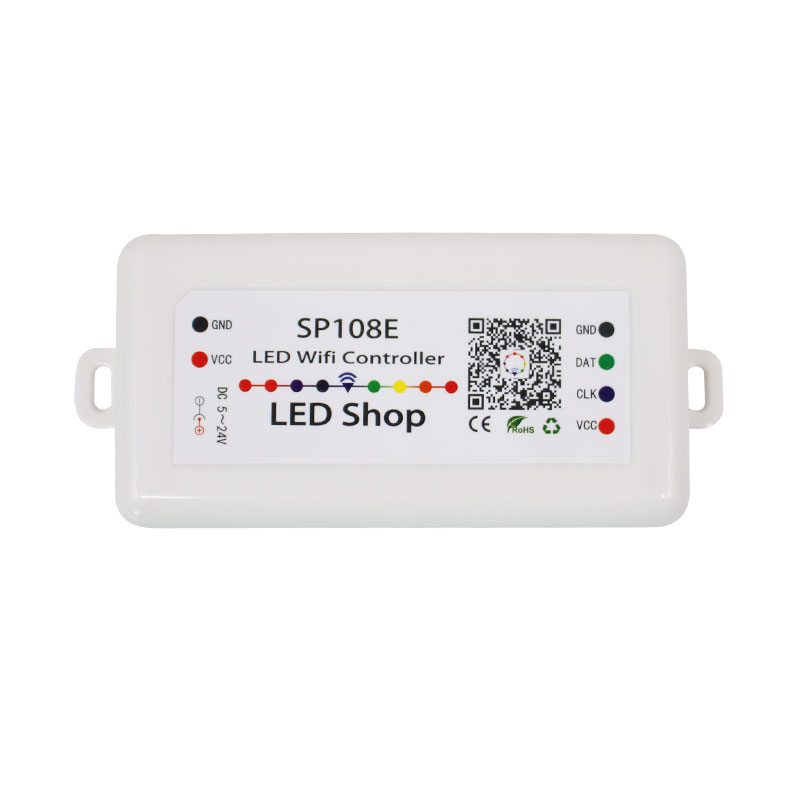

LED Controller Photos :
