WS2811 Magic LED Strip Light Data :
| Item Number | WS2811 |
| LED Type | SMD5050 |
| LED Quantity | 60Leds/M |
| Pixel Quantity | 20Pixel/m |
| IC Type | WS2811 |
| 1 WS2811 IC control 3 LED Chip, | |
| Signal Protocol | SPI (Data,GND,Positive) |
| Wattage | 12W/M |
| PCB Size | 10mm width, |
| Length | 5Meters /Reel |
| Working Voltage | DC512 |
| Light Color | digital RGB,Each LED individual control |
| IP Grade | IP33:Non waterproof with 3M tape |
| IP65:Soft glue Cover LEDS,3M tape | |
| IP67:Soft tube waterproof Or Soft Shrinkable tube wateproof | |
| PCB Color | White ,Black |
| Working temperature | -20 to 60°C |
| View Angle | 120° |
| Life Span | >50000hrs |
WS2811 Magic LED Strip Light IP Rate for Options :
30 IP30: 30leds/m WS2811 12V Non waterproof
30 IP67: 30leds/m WS2811 12V Waterproof in tube
48 IP30: 48leds/m WS2811 12V Non waterproof
48 IP67: 48leds/m WS2811 12V Waterproof in tube
60 IP30: 60leds/m WS2811 12V Non waterproof
60 IP67: 60leds/m WS2811 12V Waterproof in tube
IP65: Waterproof in Silicon Coating
White PCB: the PCB is white color
Black PCB: the PCB is black color
WS2811 Magic LED Strip Light Product Description :
Item Features:
This LED strip is wrapped by a silica gel hose which provide excellent water and dust proof
Low power consumption, Super-bright but running with low temperature
All the light spread and completely smooth, luminous very even
LED Type: 1 WS2811 IC control 3 LED Chip,
Long lifespan >50,000 hours
Available in different fixed colors and RGB (133changing modes can be realized)
Controller is designed for the magic led strip which can be available133 modes
Certified by both RoHS / CE / FCC
Specifications:
LED Type: 5050 + WS2811 IC
Power Consumption: 30 48 60 leds/m
Working Voltage: 12V
Protection grade: IP67 ( Tube Waterproof) and IP30 (Non-waterproof) ,IP65 ( Epoxy Waterproof)
Color: RGB
Viewing angle: 120°
storage temperature: -20°to 50°
Size ( L X W X H ): 5000 x 10 x 2.5 mm
Easy installation
Every three LEDs lamp(one 2811IC ) can be arbitrary cut off, good flexibility, easy installation, can be arbitrary bending.
Dream color lighting
Match use controller can appear colorful curtain-up/ flow water/raindrop/jump flash and so on hundreds of lighting effect,
you can also edit animation effect by Coreldraw/Flash/LedEdit software.
WS2811 Magic LED Strip Light Application :
Making led screen, led wall, advertising board. Apply to hotel, KTV, bars, advertisement company, decoration company,
the city lighting project, entertainment and leisure places lighting.
1roll led strip with antistatic bag

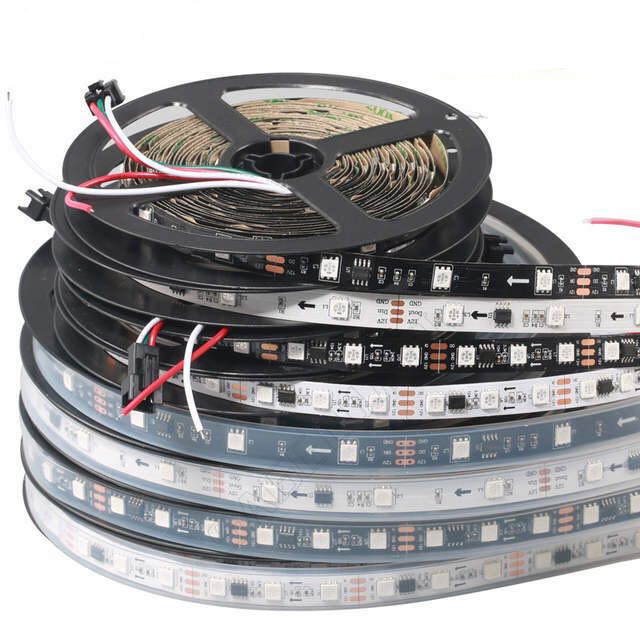

WS2811 Magic LED Strip Light Photo:
