DC12V WS2815 pixel led strip light,Addressable Dual-signal Smart,30/60 pixels/leds/m Black/White PCB,IP30/IP65/IP67
Click on the image to view the original image
Product： views：4DC12V WS2815 pixel led strip light,Addressable Dual-signal Smart,30/60 pixels/leds/m Black/White PCB,IP30/IP65/IP67
Branch： Allledlight
Size： 10X5X5 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 19:08
  Negotiated
Product Details
Overview
Quick Details
Support Dimmer:
Yes
Input Voltage(V):
12
Lamp Power:
30
Lamp Luminous Flux(lm):
100lm
CRI (Ra>):
80
Working Temperature(℃):
-20 - 40
Working Lifetime(Hour):
30000
Lamp Body Material:
Silicon
Certification:
CE, RoHS
Place of Origin:
Guangdong, China
Brand Name:
Allledlight
Model Number:
WS28115-60D
Application:
HOTEL
Light Source:
LED
Warranty(Year):
1-year
Emitting Color:
Changeable
LED Light Source:
5050SMD
Color Temperature(CCT):
Pixel
Beam Angle:
120 degree
Length:
1M
LED QTY:
30LED /60LED /144LED /M
PCB Background:
White ,Black
Protection Rate:
IP20,IP65,IP67
IC Type:
WS2815
Warranty:
1 year

Packaging & Delivery

Selling Units:
Single item
Single package size:
10X5X5 cm
Single gross weight:
0.1 kg
Package Type:
antistatic bag
Lead Time:
Quantity(Meter)1 - 200>200
Est. Time(days)5To be negotiated

 12V 30LED 60LED 144LED  per meter RGB programmable ws2815 LED pixel tape led strip light



WS2815 Magic LED Strip Light Data :



Product NameWS2815 30/60 /144leds/m led strip
VoltDC 12V
LED ChipSMD5050 RGB LED chip
IC Chip WS2812B(WS2811 IC built-in 5050 RGB LED chip)
PCB ColorWhite PCB, Black PCB
PCB Width12mm
LED SingalSPI
View Angle140°
Standard Reel Length5m/roll
Operating Temperature-20 ~ +40°C
Storage Temperature-40 ~ +80°C
Color Addressable full color
IP GradeIP30:Non waterproof with 3M  tape
IP65:Soft glue Cover LEDS,3M tape
IP67:Soft tube waterproof Or Soft Shrinkable tube wateproof
IP68:Soft tube+Glue filled waterproof

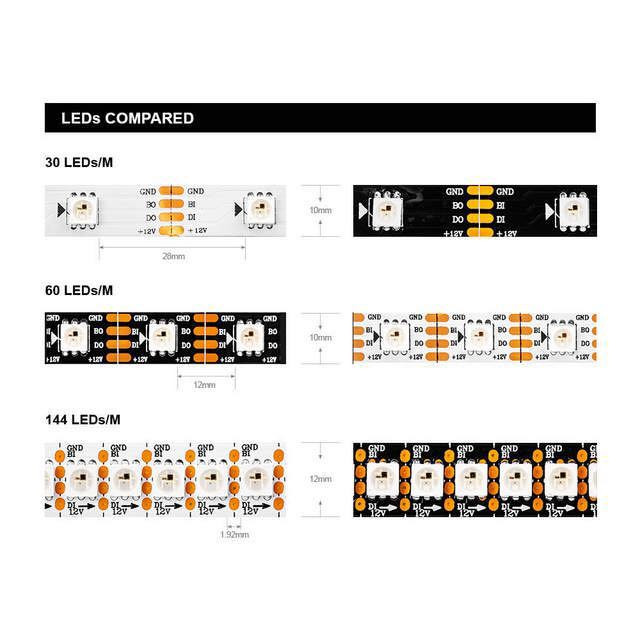

 WS2815 Magic LED Strip Light Product Description :I

TYPE
30leds/m
60leds/m
144 leds/m
IC
W2815
W2815
W2815
PCB width
10mm
10mm
12mm
standard  length
5 meter/roll
5meter /roll
1 meter/roll
PCB color
white/black
white/black
white/black
Voltage
DC12V
DC12V
DC12V
Watts
7.2w/m
14.4w/m
34.56w/m
cutted
per 1 LED
per 1LED
per 1 LED

FPC color: BLACK/White

Protection rate:    IP30 Non-Waterproof

                             IP65 Waterproof in Silicon Coating

                             IP67 Waterproof in Silicone Tube

Colors:Full color RGB, dream color changing;

Cuttable:every LED is cuttable;

Package:in anti-static bag,IP30 IP65 with 3M adhensive tape on the back

                (IP67 without 3M adhensive)

               each strip with one free male connector for connector



Easy installation
Every LEDs lamp(one 2815 IC )  can be arbitrary cut off, good flexibility, easy installation, can be arbitrary bending.

Dream color lighting
Match use controller can appear colorful curtain-up/ flow water/raindrop/jump flash and so on hundreds of lighting effect,

you can also edit animation effect by Coreldraw/Flash/LedEdit software.



WS2815 Magic LED Strip Light Application :

Making led screen, led wall, advertising board. Apply to hotel, KTV, bars, advertisement company, decoration company,

the city lighting project, entertainment and leisure places lighting.



WS2815 Magic LED Strip Light Package Include:

1m led strip with antistatic bag



WS2815  Magic LED Strip Light Photo:
