WS2812b Led Panel Chip 8x8 8x32 16x16 Pixels WS2812 SK6812 RGB Full Color Individually Addressable Digital Flexible Panel Screen

Click on the image to view the original image

Product：	views：3WS2812b Led Panel Chip 8x8 8x32 16x16 Pixels WS2812 SK6812 RGB Full Color Individually Addressable Digital Flexible Panel Screen
Branch：	Allledlight
Size：	10X10X3 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 19:08

Product Details

Overview

Quick Details

Support Dimmer:: Yes

Input Voltage(V):: DC5V

Lamp Power:: 28.8

Lamp Luminous Flux(lm):: 100lm

CRI (Ra>):: 80

Working Temperature(℃):: -20 - 40

Working Lifetime(Hour):: 30000

Lamp Body Material:: Silicon

Certification:: CE, RoHS

Place of Origin:: Guangdong, China

Brand Name:: Allledlight

Model Number:: WS2812B-8X8

Application:: LANDSCAPE

Light Source:: LED

Name:: RGB Full Color Panel Screen

LED Light Source:: 5050SMD

Beam Angle:: 180 Degree

Width:: 8/16/32

LED QTY:: 480LED /Roll

PCB Background:: ,Black

Protection Rate:: IP20,

Pixel/PCS:: 64 /256 Pixel

IC Type:: WS2812B (IC Built in LED)

Warranty:: 1 Year

Packaging & Delivery

Selling Units:: Single item

Single package size:: 10X10X3 cm

Single gross weight:: 0.15 kg

Package Type:: Static Bag package

Lead Time:

Quantity(Piece)	1 - 100	101 - 1000	>1000
Est. Time(days)	2	7	To be negotiated

LED Pixel Product Description

Three size:

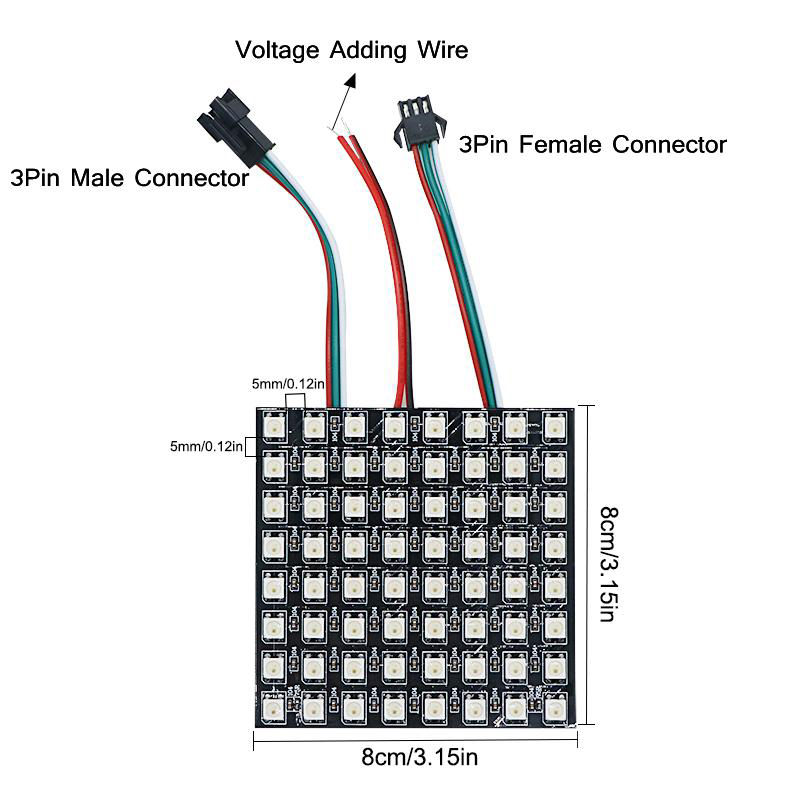

8*8, 64leds, 8cm*8cm

16*16, 256leds, 16cm*16cm

8*32, 256leds, 8cm*32cm

pixels WS2812 led digital flexible panel light(ws2811 IC controlled),DC5V input

Work with the programmable SD controller(not included), it can make flexible LED screen

Arduino IC Digital Addressable Dream Color RGB LED Strip

Arduino compatible.You can control the strip by your programmable arduino.

Technology advantages

The WS2811 SMD5050 RGB LED, every led built-in(embedded) an WS2811 IC,, therefore every one led lignting effect can be control, every rgb led is digital addressable.

Easy installation

Every one LED lamp can be arbitrary cut off, good flexibility, easy installation, can be arbitrary bending.

Dream color lighting

Match use controller can appear colorful curtain-up/ flow water/raindrop/jump flash and so on hundreds of lighting effect, you can also edit animation effect by Coreldraw/Flash/LedEdit software.

Led Pixel Application

Making led screen, led wall, advertising board. Apply to hotel, KTV, bars, advertisement company, decoration company, the city lighting project, entertainment and leisure places lighting.

1. Emitting color: pixel RGB , IC WS2812

2. Work voltage: DC 5V

3. Power: 0.3W/pixel

6. waterproof level: Non-waterproof

7. Working mode: external controller Arduino compatible.

8. Connection: VCC: RED; GND:BLACK; DAT:BLUE

Led Pixel Package:

1* LED Pxiels panel

Led Pixel Note:

The package not include any power adapter and RGB controller!

WS2812B Led Panel Must Use DC5V Power Supply,

And Must Need Led Controller Control!
