Home > Products > 30 LEDs/M 2811 16703 Pixels Programmable Individual Addressable LED Strip light WS2811 16703 5050 RGB 12V Black LED Tape lamp
30 LEDs/M 2811 16703 Pixels Programmable Individual Addressable LED Strip light WS2811 16703 5050 RGB 12V Black LED Tape lamp
Click on the image to view the original image
Product： views：430 LEDs/M 2811 16703 Pixels Programmable Individual Addressable LED Strip light WS2811 16703 5050 RGB 12V Black LED Tape lamp
Branch： Allledlight
Size： 10X5X5 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 19:08
  Negotiated
Product Details
Overview
Quick Details
Support Dimmer:
Yes
Input Voltage(V):
12V
Lamp Power:
30
Lamp Luminous Flux(lm):
100lm
CRI (Ra>):
80
Working Temperature(℃):
-20 - 40
Working Lifetime(Hour):
30000
Lamp Body Material:
Silicon
Certification:
CE, RoHS
Place of Origin:
Guangdong, China
Brand Name:
Allledlight
Model Number:
16703/WS2811 -30SMD
Application:
indoor and outdoor project
Light Source:
LED
Emitting Color:
Changeable
LED Light Source:
5050SMD
Color Temperature(CCT):
Pixel
Beam Angle:
120 degree
Length:
1M
LED QTY:
30LED /M
PCB Background:
White ,Black
Protection Rate:
IP20,IP65,IP68
IC Type:
16703/WS2811
Warranty:
1 year

Packaging & Delivery

Selling Units:
Single item
Single package size:
10X5X5 cm
Single gross weight:
0.1 kg
Package Type:
antistatic bag
Lead Time:
Quantity(Meter)1 - 12 - 5000>5000
Est. Time(days)23To be negotiated



Non Waterproof and Waterproof strip do not include Controller.

16703 /WS2811 LED Strip Product Features:

1.LED Sources: 16703 / 2811 IC 5050 LED

2.LED Quantity: 30led/m 60led/m ,5m/roll

3.Beam Angle: 120°viewing angle

4.Color:  RGB magic color

5.Working Voltage: 12V DC

6.PCB Width: Non Waterproof 12mm,Waterproof  15mm

7.Type:IP67 Waterproof,Non Waterproof



16703/ WS2811  LED Strip RF Magic Controller:

1.Working temperature: -20-60 degree

2.Supply voltage: DC12V

3.Output: Two SPI signal

4.External dimension: L90 * W60 * H25 mm

5.Net weight: 120 g

6.Rated power: 2W

16703 /WS2811  LED Strip Applications:

1.Path & contour marking

2.Elegant interior decoration

3.Architectural decorative lighting

4.Amusement park and theater lighting

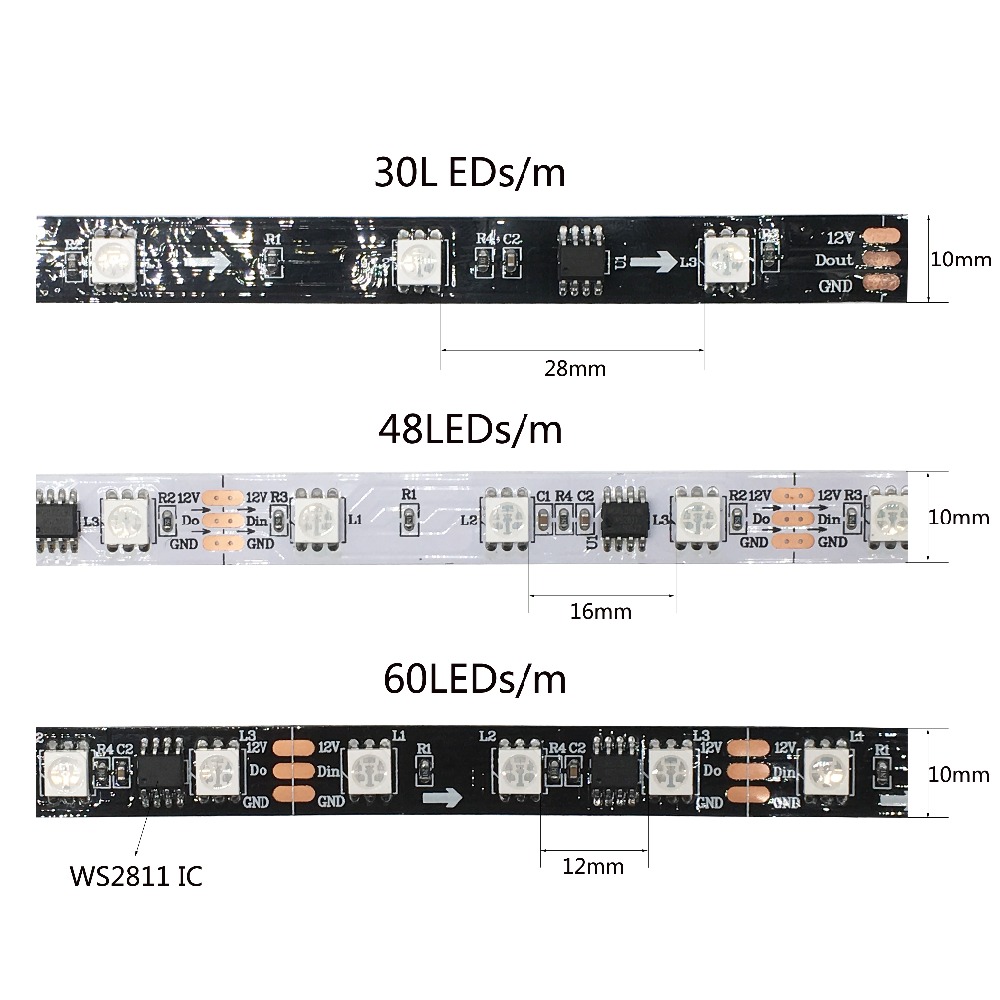

16703 /WS2811  LED Strip Product Pictures:
