LED Power Supply Product Description :
DC 12V 1A / 2A / 3A / 5A /6A/ 8.3A / 10A / 12.5A/15A / 16.7A/20A/30A/40A/50A Switch Power Supply Adapter
Power:12W/24W/36W/60W//72W/100W/120W/150W/180W/200W/240W/360W/480W/600W
Input Voltage: AC100V-265V
Output Voltage: DC 12V
Output Current: 1A~50A
Shell Material: Metal case / Aluminum case
Safety Compliance: FCC / CE /Rohs
High price-effective, reliability with industry standards
Built-in over voltage, over current, and short circuit protection
Working Temperature: 0~40C
Storage Temperature: -20~60C
Ambient Humidity: 0~95% Non-Condensation
LED Power Supply Features
| Model | S-250-5 | S-250-12 | S-250-15 | S-250-24 | S-250-27 | S-250-48 | |
| output | DC voltage | 5V | 12V | 15V | 24V | 27V | 48V |
| Voltage tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | |
| Rated current | 40A | 20A | 16A | 10A | 9A | 5.2A | |
| Current range | 0~40A | 0~20A | 0~16A | 0~10A | 0~9A | 0~5.2A | |
| Rated power | 200W | 240W | 240W | 240W | 243W | 249.6W | |
| Ripple&noise | 150mvp-p | 150mvp-p | 180mvp-p | 180mvp-p | 180mvp-p | 200mvp-p | |
| DCvoltageADJ.range | -9%~+10% | ±10% | ±10% | ±10% | ±10% | ±10% | |
| input | Voltage range | 85-265VAC(selected by switch), | |||||
| frequency | 47~63HZ | ||||||
| AC current | 4.5A/115VAC,2.5A/230VAC | ||||||
| efficiency | 82% | 84% | 84% | 85% | 85% | 86% | |
| Inrush current | Cold start current25A/115VAC,40A/230VAC | ||||||
| Leakage current | < 2.5mA/240VAC | ||||||
| protection | overload | Rated output power110%~135% start over load protection | |||||
| protection type:hiccup mode,auto-recovery after fault condition is removed | |||||||
| Over voltage | 6.8~8.2V | 15.6~17.8V | 18.6~20.8V | 30.6~33.2V | 42.6~44.2V | 54.8~56.6V | |
| protection type:hiccup mode,auto-recovery after fault condition is removed | |||||||
| Over temperature | TSW1detect on heatsink of power transistor≥95℃±5℃, start over temperature protection | ||||||
| protection type:hiccup mode,auto-recovery after temperature become normal | |||||||
| environment | Working temp,humidity | -10℃~+60℃,20%~90%RH | |||||
| Storage temp,humidity | -20℃~+85℃,10%~95%RH non-condensing | ||||||
| Withstand vibration | 10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes | ||||||
| safety | Withstand voltage | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||||
| Isolation resistance | I/P-O/P,I/P-FG,O/P-FG:100Mohms/500VDC | ||||||
| Fit standard | Safety standard | Compliance to UL1012 | |||||
| EMC standard | Compliance toEN55022,CLASSA | ||||||
| others | Dimension | L198 x W109 x D50 mm | |||||
| Weight/packing | 0.7kg/24pcs/17.5kg/0.034 m³/1.2CUFT | ||||||
| note | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and25℃of ambient temperature. | ||||||
| 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. | |||||||
| 3. Tolerance : includes set up tolerance, line regulation and load regulation. | |||||||
Please Noted: This Power Supply Unit haven"t included installation instruction, wiring cable, on/off switch, or screws.
(3.2A Weight:220G Size:L110 x W78 x D36 mm)
(5A Weight:368G Size:L159 x W98 x D42 mm)
(10A Weight:368G Size::L159 x W98 x D42 mm)
(15A Weight:590G Size:L198 x W98 x D43 mm)
(20A Weight:808G Size:L198 x W109 x D50 mm)
(30A Weight:900G Size:L214 x W113 x D50 mm)
About Calculate Method:
If Your LED Strip 60LEDs/m, and each LED 0.2W, then calculate max LED Strip Length: 0.2W/LED × 60LEDs/m=12W/m, 24W(this listing)÷12W/m=2m,
So, Support the LED Strip(60LEDs/m, 0.2W/LED) Length (Max)=2m
LED Power Supply Typical Applications
LED Modules, LED Pixel modules, LED strips
Security surveillance industry
Other industrial applications

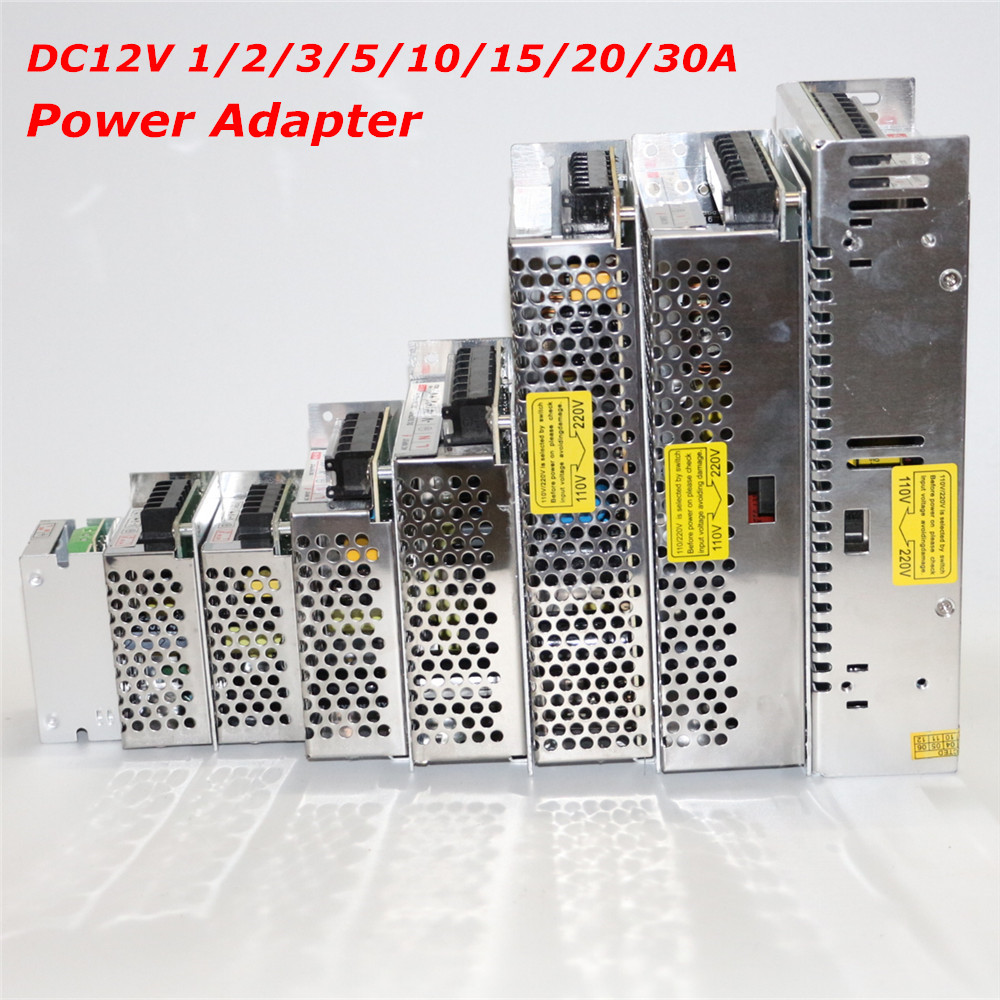

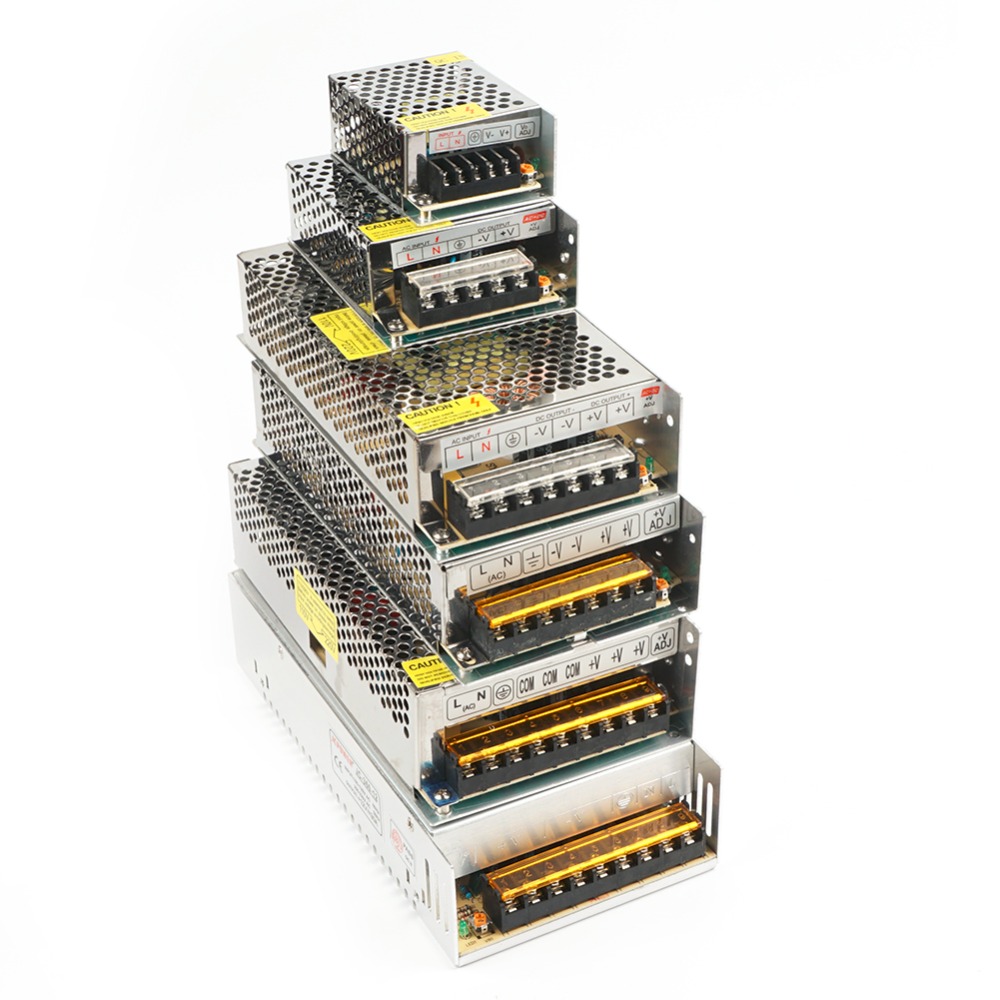

LED Power Supply Photos:
