Home > Products > 50pcs/string DC5V 12mm WS2811 addressable RGB led smart pixel node,with all color wire,IP68 rated

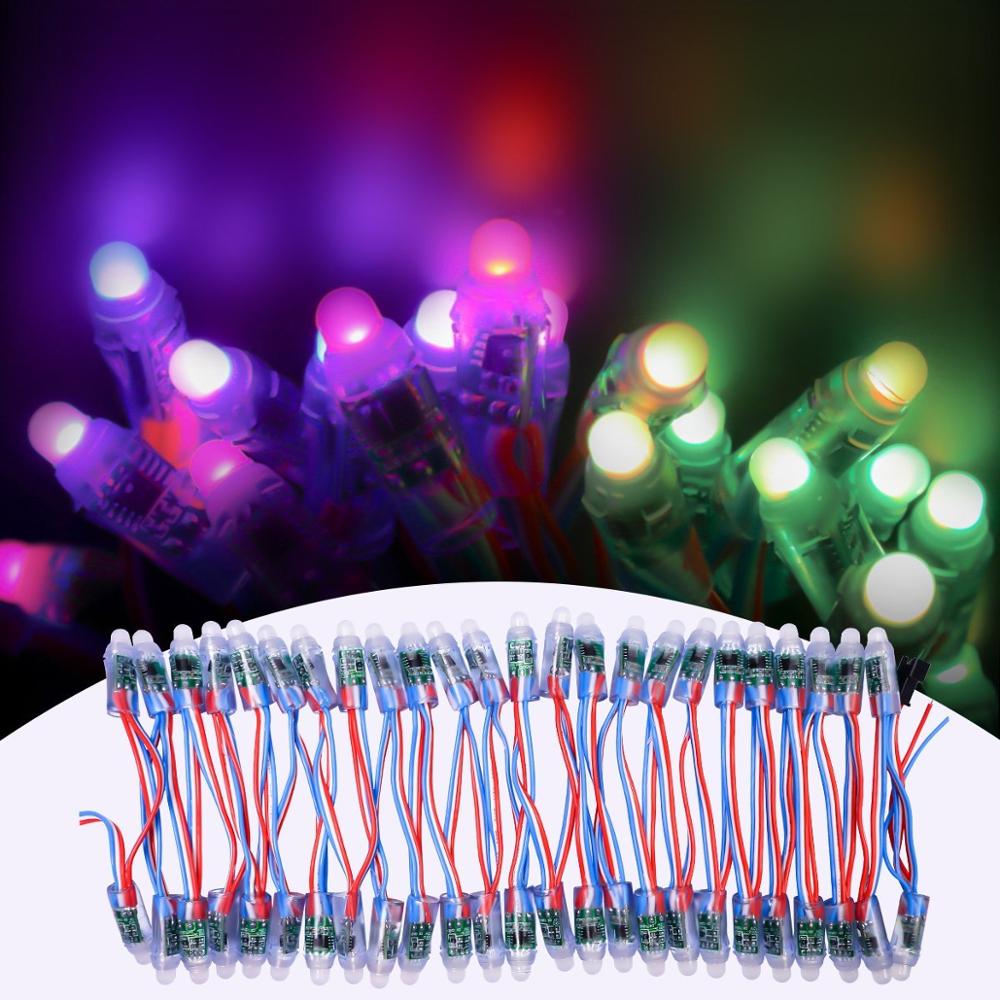

50pcs/string DC5V 12mm WS2811 addressable RGB led smart pixel node,with all color wire,IP68 rated
Click on the image to view the original image
Product： views：250pcs/string DC5V 12mm WS2811 addressable RGB led smart pixel node,with all color wire,IP68 rated
Branch： allledlight
Type： LED Modules
Size： 6X6X5 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 19:08
  Negotiated
Product Details
Overview
Quick Details
Type:
LED Modules
Chip Material:
GaAs
Emitting Color:
Tri-Color(Red-Blue-Green)
Luminous Intensity:
80
Luminous Flux(lm):
100
Optical Attenuation(%):
3
Power:
10W
Power Dissipation:
0.3W
Viewing Angle(°):
120-160
Color Rendering Index(Ra):
80
Color Temperature:
RGB
Operating Temperature(℃):
-20 - 80
Storage Temperature(℃):
-20 - 80
Place of Origin:
Guangdong, China
Brand Name:
allledlight
Certification:
CE, RoHS
Product name:
12mm Round Led Pixel
Modules No:
50modules/string
Color:
RGB digital color
Voltage:
Led Point Light 5v
IP Grade:
Waterproof IP68
IC Type:
Ws2811/p9813/16716/6803/2801
Shape:
Round Shape
MOQ:
1string (50 pcs)
Aging Time:
24 Hours
Warranty:
2 Years

Packaging & Delivery

Selling Units:
Single item
Single package size:
6X6X5 cm
Single gross weight:
0.3 kg
Package Type:
QTY :2000pcs/ctn Meas :34*34*24CM G.W : 20KGS
Lead Time:
Quantity(Set)1 - 500>500
Est. Time(days)3To be negotiated

DC5V ip68 ws2811 rgb pixel led module 12mm light string use outdoor
12mm square LED WS2801 RGB pixel string light
2.IP68,DC5V,Square Shape
3.digital full color,50nodes/string
4.warrant 2years
WS2811 RGB Pixel LED Module Specification:

Model: WS2811 LED pixel
light source: F8RGB*1
IC Model: WS2811 IC
Quantity: 50 LEDs / set
LED Shape: Round
Color: full color, 24-bit
Gray level: 256
Length: 11.5ft (3.5m) per set
Size: Please refer to the picture
The standard operating voltage: DC 5V
Power: 0.3W/LED (15W/Set)
Waterproof: IP68 waterproof
Connection: Red: +5V; White: DATA; Blue: GND

WS2811 RGB Pixel LED Module Kindly note
1) It comes without power supply and controller. You"ll need a controller such as an Arduino to use them.
2) The work voltage of the LED string must be 5V DC. Otherwise, it will be burnt out.
3) If you want to hook up more than one string, an external power supply is very necessary.
4) There are small arrows on circuit board to show the direction of the data flow. This will help you confirm the input and output end.

WS2811 RGB Pixel LED Module Package:
50pcs WS2811 LED pixels light

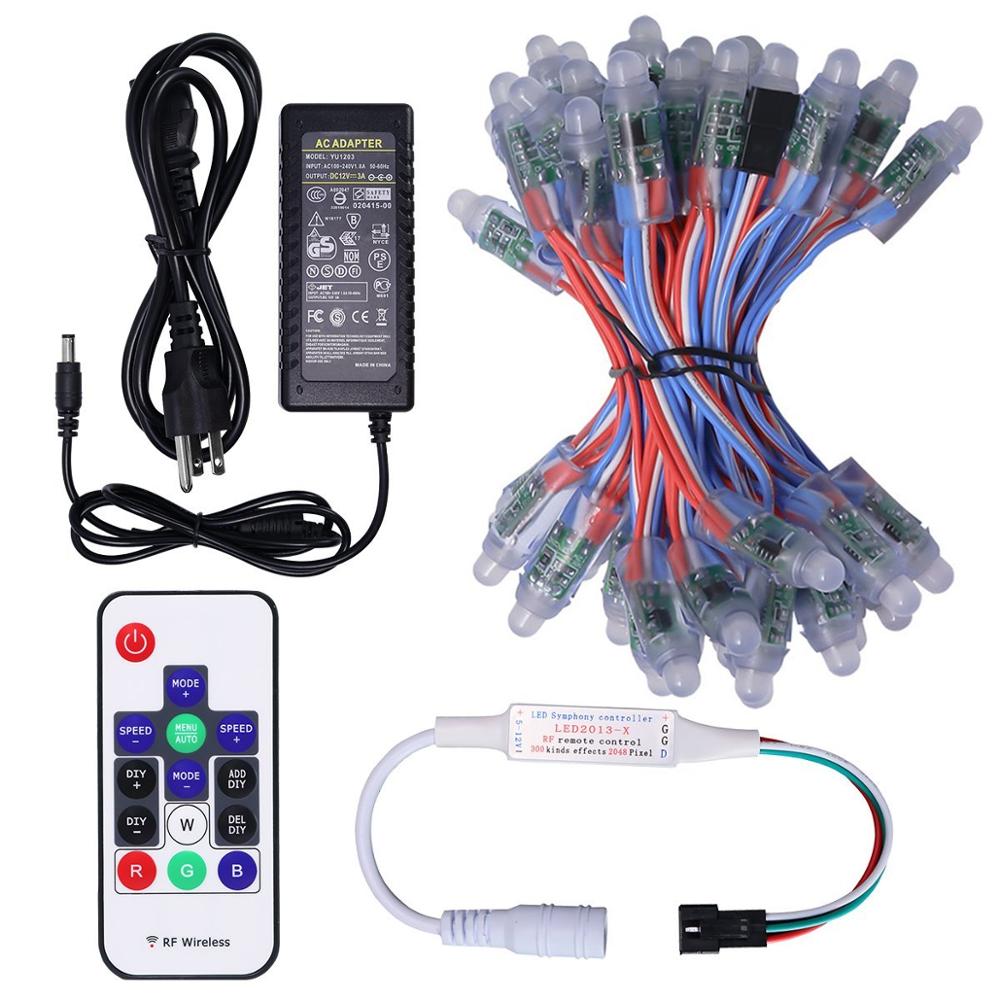

 WS2811 RGB Pixel LED Module More Photos:
