Home > Products > 24V Switching Power Supply Power Source Transformer 3A AC 110V 220V to DC 12 V 24 V volt Converter CCTV Power Supply
24V Switching Power Supply Power Source Transformer 3A AC 110V 220V to DC 12 V 24 V volt Converter CCTV Power Supply
Click on the image to view the original image
Product： views：324V Switching Power Supply Power Source Transformer 3A AC 110V 220V to DC 12 V 24 V volt Converter CCTV Power Supply
Branch： allledlight
Size： 17X11X5 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 19:08
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
allledlight
Model Number:
S-24V-3A
Output Power:
101 - 200W
Output Type:
Single
Output Voltage:
24V
Output Frequency:
50/60Hz
Output Current:
3A
Input Voltage:
220V
Efficiency:
83%
Case material:
Aluminium
Operation volt:
0-50℃
Test:
100% full load burn-in test
Load Variation:
3%
IP Rate:
IP20
Warranty:
2 Years
Certification:
CE ROHS
Application:
LED Strip Light ,LED Display ,CCTV Camera

Packaging & Delivery

Selling Units:
Single item
Single package size:
17X11X5 cm
Single gross weight:
0.45 kg
Package Type:
Colorbox or white box 100pcs/ctn
Lead Time:
Quantity(Piece)1 - 360>360
Est. Time(days)3To be negotiated
LED Power Supply Specification :
Item No.S-24V-72W
Rated Load72W Max
Output VoltageDC24V (Constant Voltage)
Output Current0-3A
Input VoltageAC110 OR AC220
Dimming Range5%
DimensionL160*W100*H42mm
G.Weight360g
Working Temperature-30°C~50°C
Temperature Rise≤30°C
Storage temperature-30~100°C
IP codeIP20
Cooling ModeAir Cooling
Warranty2 Years
CertificateCE RoHS
ProtectionOver-Voltage,Over-Current,Over-load,Short-Circuit Protection
FunctionIndoor Power Supply

LED Power Supply Dimension :
Type (Output)Size (LxWxH)mmIntput Voltage (AC)
24V 1A 24W85mm*58mm*33mm100-120V 200-220V
24V 2A 48W110mm*78mm*36mm100-120V 200-220V
24V 2.5A 60W110mm*78mm*36mm100-120V 200-220V
24V 3A 72W160mm*98mm*43mm100-120V 200-220V
24V 5A 120W199mm*98mm*42mm100-120V 200-220V+/- 15%
24V 8.3A 200W199mm*98mm*42mm100-120V 200-220V+/- 15%
24V 10A 240W200mm*110mm*50mm100-120V 200-220V+/- 15%
24V 15A 360W215mm*114mm*50mm100-120V 200-220V+/- 15%

LED Power Supply Features :
100% brand New Power Converter
Power: 60W
Input Voltage: 100 ~ 120V AC, 200 ~ 240V AC (Preset 230V)
Output Voltage: 24V DC
Output Current: 0 ~ 2.5A
Shell Material: Metal case / Aluminum base
Protection: Shortage Protection, Overload Protection, Over Voltage Protection
Widely used in Industrial automation, LED display, communications, etc.
Safety Compliance: CE / EM
Ambient Humidity: 0 ~ 95% Non-Condensation
IN-DOOR USE ONLY
This Power Supply Unit "DOES NOT" come with installation instruction, wiring cable, on / off switch, or screws
Professional installation of qualified electrician is highly recommended

Wiring:
L, N, END: AC power input
+ V: DC power input
-V: DC power output
+ adj: fine adjustment of output voltage with LED

How to calculate Support max LED Strip Length:
Assumption Your LED Strip 60LEDs/m,and each LED 0.2W,then calculate max LED Strip Length 0.2W/LED X 60LEDs/m=12W/m, 60W(this listing)÷12W/m=5m,So,Support the LED Strip(60LEDs/m,0.2W/LED) Length (Max)=5M (Not suggest for use in bathroom)

LED Power Supply Typical Applications
LED Modules, LED Pixel modules, LED strips




LED Power Supply Package Content
1pc power adapter

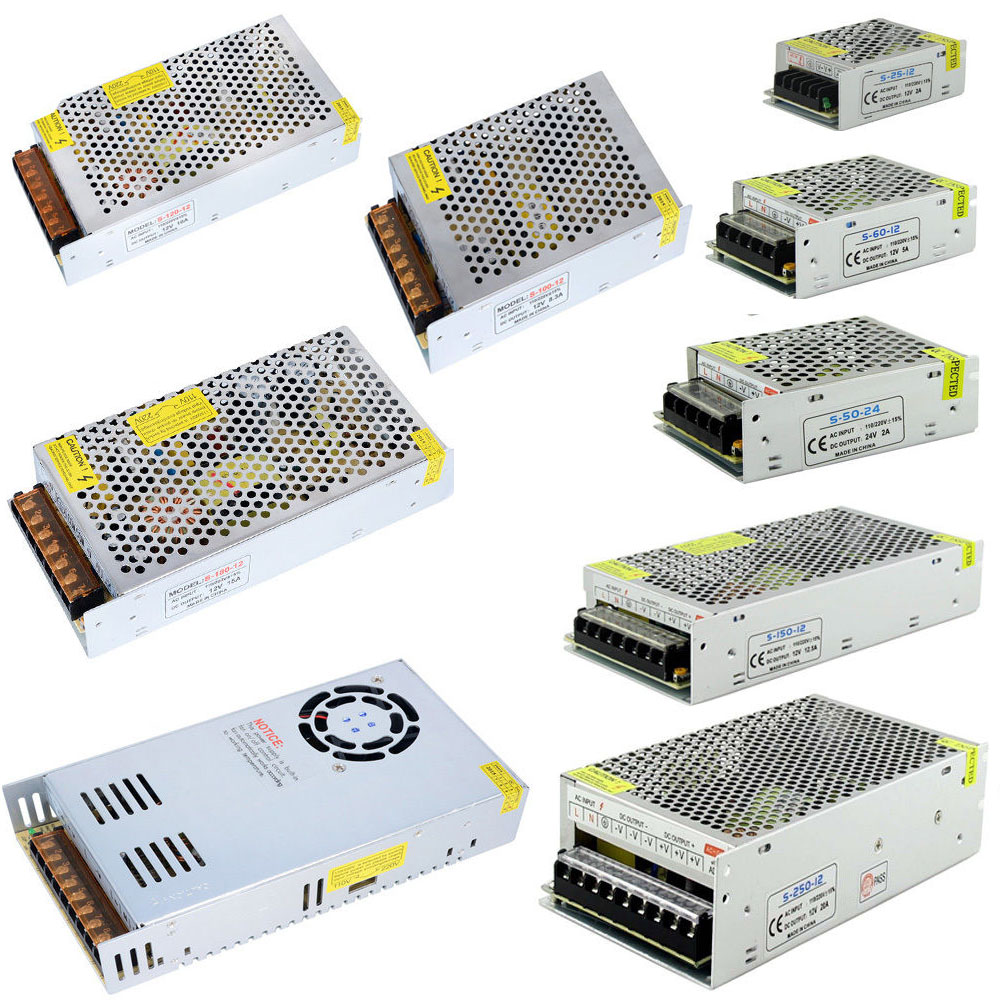

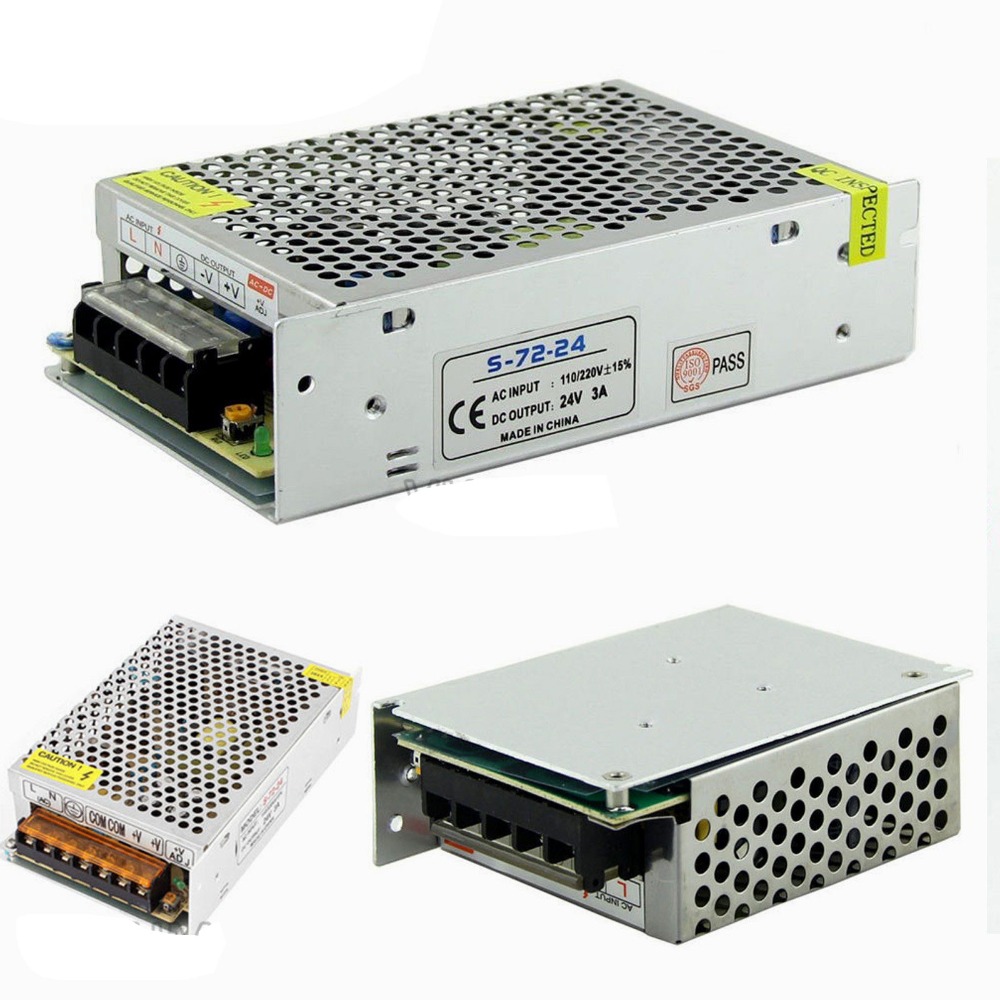

LED Power Supply Photos:
