- Support Dimmer:
- Yes
- Type:
- Flex LED Strips
- Input Voltage(V):
- 5-24V
- Lamp Power:
- 360W
- CRI (Ra>):
- 80
- Working Temperature(℃):
- -20 - 45
- Working Lifetime(Hour):
- 50000
- Lamp Body Material:
- Plastic
- Certification:
- CE, RoHS
- Place of Origin:
- Guangdong, China
- Brand Name:
- Allledlight
- Model Number:
- SP107E
- Application:
- HOTEL
- Light Source:
- LED
- SP107E::
- 5-24V Music controller
- Controled Method:
- music control /App control
- Remote Distance:
- 20M
- Max. Load Power:
- 960 pixels
- Applicable Lights:
- led pixel strip
- Product size:
- 85mm*45mm*22mm
- Package:
- White Box
- Material:
- ABS
- Warranty:
- 2 Year
- Support IC Model:
- WS2812 SK6812 SK9822 RGBW APA102 LPD8806
- Item Type:
- Light Strips
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 9X5X3 cm
- Single gross weight:
- 0.1 kg
- Package Type:
- 500PCS/CTN

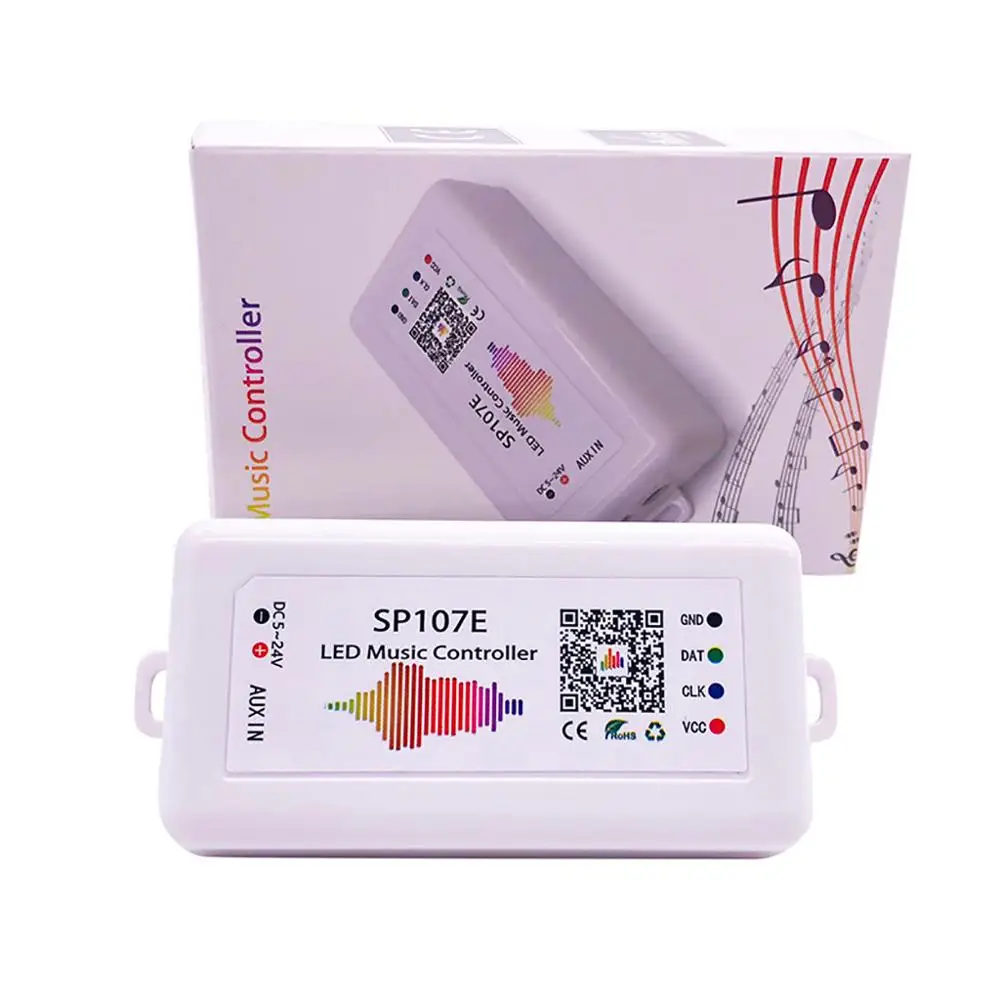

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 100 101 - 1000 >1000 Est. Time(days) 1 5 To be negotiated
LED Controller Specification :
1.LED Controller Feature :
1) Long distance APP remote control via Bluetooth;
2) Support almost every kind of one-wire or two-wire LED driver IC ;
3) Brightness adjustable, With 180 kinds of patterns and 8 kind of color adjustable patterns;
4) Creatively usingfrom-image-to-effect method for user toDIYany effect;
5) Support setting pixel number and segments number, able to control up to 2048pixels;
6) DC5V~24V widerangeworking voltage, preventing reverse connection of power supply;
7) User setting saving;
2. App control:
Both IOS version and Android OS version are available.
•Requires IOS version 10.0 or later;
•Requires Android OS version 4.4 or later;
•Search”Led Chord”in App Store or Google pay or scan this QR code to download and install the App:
3. Specifications:
Working temperature : -20~60 Degrees Celsius
Working Voltage : DC5V~24V;
Working Current :20mA~130mA;
Remote distance :30 Meters;
Product size : 85mm*45mm*22mm;
Product weight : 40g ;
Certificates : CE, RoHS;
4. Instructions:
APP Operations:
1. Make sure you have turned on Bluetooth on your phone;
2. Open the APP, drag to refresh the device list, select device name “SP107E” to connect the controller, once connected you will able to rename your controller;
3. Select RGB order and IC type;
4. Adjust the pixel number;
5.Press ENTER.
Audio Input:
There are two ways to input the audio signal on SP107E, AUX IN, and Build-IN microphone;
•AUX IN: Plug the supplied audio split cable into the “AUX IN” jack, connect the audio output source(MP3, Phone or tablet…)and the speaker(or headset), the controller will automatically switch into AUX input mode;
•MIC: Disconnect the audio cable, the controller will automatically switch into microphone input mode.
Package includes:
1x SP107E music LED controller
1x User manual
