WS2182B 74Leds/m 74Pixels/m 5V Digital LED Strip :
WS2182B 74Leds/m 74Pixels/m 5V Digital LED Strip Feature:
| Item Number | WS2812B-96LED-M |
| LED Type | SMD5050 |
| LED Quantity | 96Leds/M |
| Pixel Quantity | 96Pixel/m |
| IC Type | WS2812B/SK6812 |
| (IC Built in SMD5050 RGB LED) | |
| Signal Protocol | SPI (Data,GND,Positive) |
| Wattage | 28.8W/M |
| PCB Size | 12mm width, |
| Length | 5Meters /Reel |
| Working Voltage | DC5V |
| Light Color | digital RGB,Each LED individual control |
| IP Grade | IP20:Non waterproof with 3M tape |
| IP65:Soft glue Cover LEDS,3M tape | |
| IP66:Soft tube waterproof Or Soft Shrinkable tube wateproof | |
| IP68:Soft tube+Glue filled waterproof | |
| PCB Color | White ,Black |
| Working temperature | -20 to 60°C |
| View Angle | 120° |
| Life Span | >50000hrs |
WS2812B 74Leds/m 74Pixels/m 5V Digital LED Strip Specifications:
Input voltage:DC5v;
Power:
Power:
30leds/m----9watt/meter
60leds/m----18watt/meter
74leds/m----22watt/meter
96leds/m----28.8watt/meter
100leds/m----30watt/meter (100leds/m only black PCB ,no white PCB)
144leds/m----43.2watt/meter
LED resource:WS2812B led(5050 SMD RGB LED with built-in improved version of ws2811 ic)
LED:each LED is separately controlled
IC Type: improved version ws2812 IC(built inside the 5050 smd rgb led)
of IC: (1 IC drives 1 led chip);
Pixels: 30/60/74/96/100/144/meter;
Grey scale: 256;
Bits/color:8-bits/color;
FPCB Width: 30leds/m----10mm
60leds/m----10mm
74leds/m----12mm
96leds/m----12mm
144leds/m----12mm
FPC color: BLACK/White
Protection rate: IP30 Non-Waterproof
IP65 Waterproof in Silicon Coating

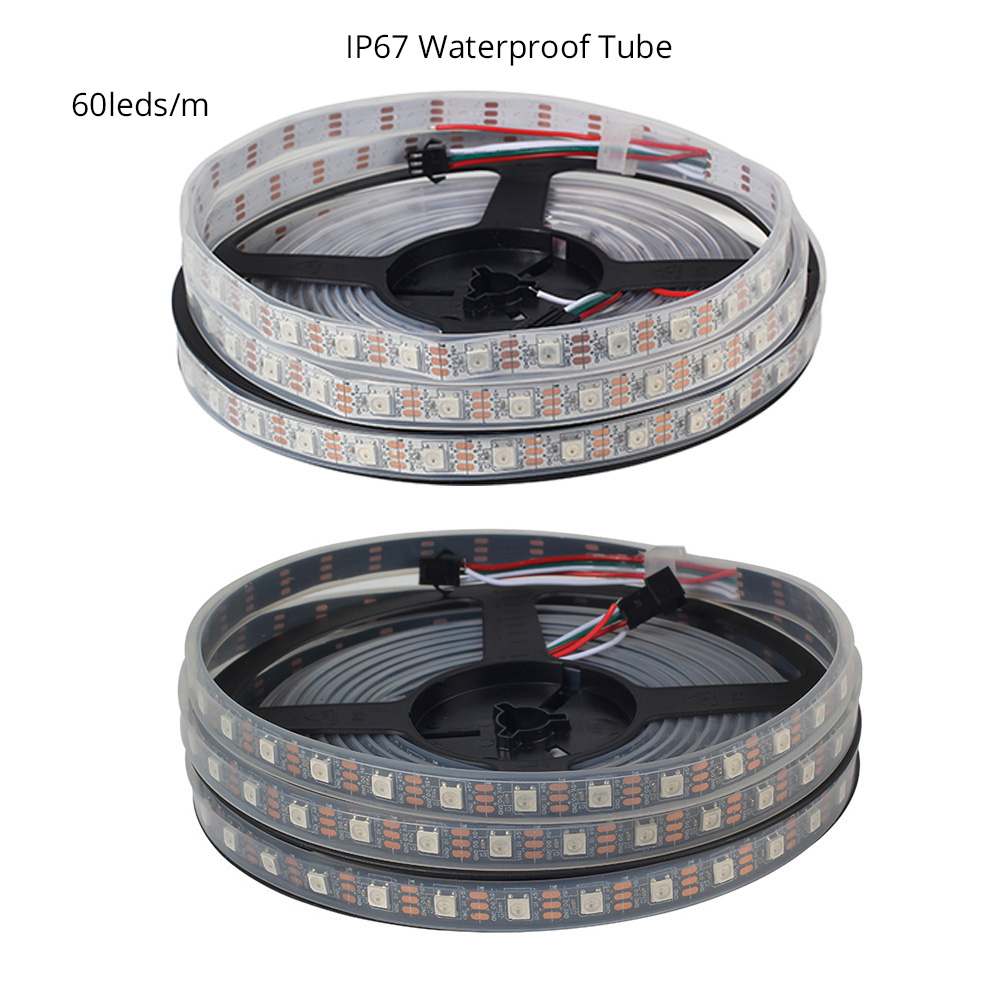

IP67 Waterproof in Silicone Tube
Colors:Full color RGB, dream color changing;
Cuttable:every LED is cuttable;
Package:in anti-static bag,IP30 IP65 with 3M adhensive tape on the back
(IP67 without 3M adhensive)
each strip with one free male connector for connector
60leds/m----18watt/meter
74leds/m----22watt/meter
96leds/m----28.8watt/meter
100leds/m----30watt/meter (100leds/m only black PCB ,no white PCB)
144leds/m----43.2watt/meter
LED resource:WS2812B led(5050 SMD RGB LED with built-in improved version of ws2811 ic)
LED:each LED is separately controlled
IC Type: improved version ws2812 IC(built inside the 5050 smd rgb led)
of IC: (1 IC drives 1 led chip);
Pixels: 30/60/74/96/100/144/meter;
Grey scale: 256;
Bits/color:8-bits/color;
FPCB Width: 30leds/m----10mm
60leds/m----10mm
74leds/m----12mm
96leds/m----12mm
144leds/m----12mm
FPC color: BLACK/White
Protection rate: IP30 Non-Waterproof
IP65 Waterproof in Silicon Coating
IP67 Waterproof in Silicone Tube
Colors:Full color RGB, dream color changing;
Cuttable:every LED is cuttable;
Package:in anti-static bag,IP30 IP65 with 3M adhensive tape on the back
(IP67 without 3M adhensive)
each strip with one free male connector for connector
WS21812B 74Leds/m 74Pixels/m 5V Digital LED Strip Caution:
1.Storage temperature:-40°to +80°
operating temperature:-25°to +60°
2.installation surface must be smooth,clean and dry.
3.the part of LED components can not be fixed on the surface of the sharp edge.
4.strip should not be collided or crushed.
5.strip can be cut following the cutting lines.
operating temperature:-25°to +60°
2.installation surface must be smooth,clean and dry.
3.the part of LED components can not be fixed on the surface of the sharp edge.
4.strip should not be collided or crushed.
5.strip can be cut following the cutting lines.
WS2812B 74Leds/m 74Pixels/m 5V Digital LED Strip Package Include:
1roll led strip with antistatic bag

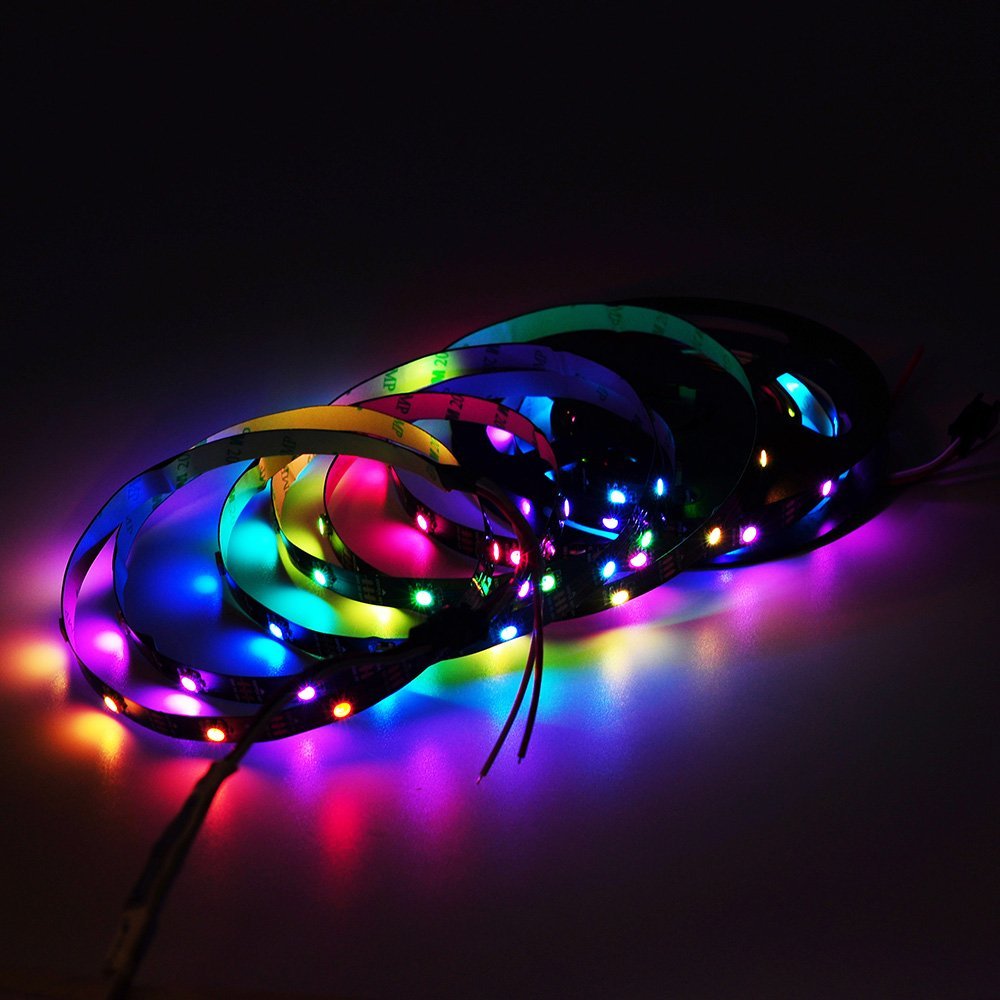

WS2812B 74Leds/m 74Pixels/m 5V Digital LED Strip Light Photo:
