WS2812B Magic LED Strip Light Feature :
1. Addressable full color led strip
(WS2812B)——WS2811 IC built-in 5050 RGB LED chip.
2. Individually control :1 IC & 1 LED chip.
3. Standard Reel Length: 1 meter/roll, also can be customized.
4. Cutted: 1 integrated RGB LEDs per segment, can be cutted per 1LED.
5. Sticky: with 3M adhesive on back side for sticky.
screw+silicon clip, or 3M adhesive back side.
WS2812B Magic LED Strip Light Data :
| Product Name | WS2812B 100leds/m led strip |
| Volt | DC 5V |
| LED Chip | SMD5050 RGB LED chip |
| IC Chip | WS2812B(WS2811 IC built-in 5050 RGB LED chip) |
| PCB Color | White PCB, Black PCB |
| PCB Width | 10mm/ 12MM |
| LED Singal | SPI |
| View Angle | 140° |
| Standard Reel Length | 5m/roll |
| Operating Temperature | -20 ~ +40°C |
| Storage Temperature | -40 ~ +80°C |
| Color | Addressable full color |
| IP Grade | IP20:Non waterproof with 3M tape |
| IP65:Soft glue Cover LEDS,3M tape | |
| IP66:Soft tube waterproof Or Soft Shrinkable tube wateproof | |
| IP68:Soft tube+Glue filled waterproof |
WS2812 Magic LED Strip Light Product Description :
Item Features:
This LED strip is wrapped by a silica gel hose which provide excellent water and dust proof
Low power consumption, Super-bright but running with low temperature
All the light spread and completely smooth, luminous very even
Long lifespan >50,000 hours
Available in different fixed colors and RGB (133changing modes can be realized)
Controller is designed for the magic led strip which can be available133 modes
Certified by both RoHS / CE / FCC
Specifications:
LED Type: 5050 + (Build WS2812B IC inside)
LED QTY : 100 leds/m
Working Voltage: 5V
Protection grade: IP67 ( Tube Waterproof) and IP20 (Non-waterproof) ,IP65 ( Epoxy Waterproof)
Color: RGB
Viewing angle: 120°
storage temperature: -20°to 50°
Size ( L X W X H ): 5000 x 10 x 2.5 mm
Easy installation
Every LEDs lamp(one 2812B IC ) can be arbitrary cut off, good flexibility, easy installation, can be arbitrary bending.
Dream color lighting
Match use controller can appear colorful curtain-up/ flow water/raindrop/jump flash and so on hundreds of lighting effect,
you can also edit animation effect by Coreldraw/Flash/LedEdit software.
WS2812B Magic LED Strip Light Application :
Making led screen, led wall, advertising board. Apply to hotel, KTV, bars, advertisement company, decoration company,
the city lighting project, entertainment and leisure places lighting.
1m led strip with antistatic bag

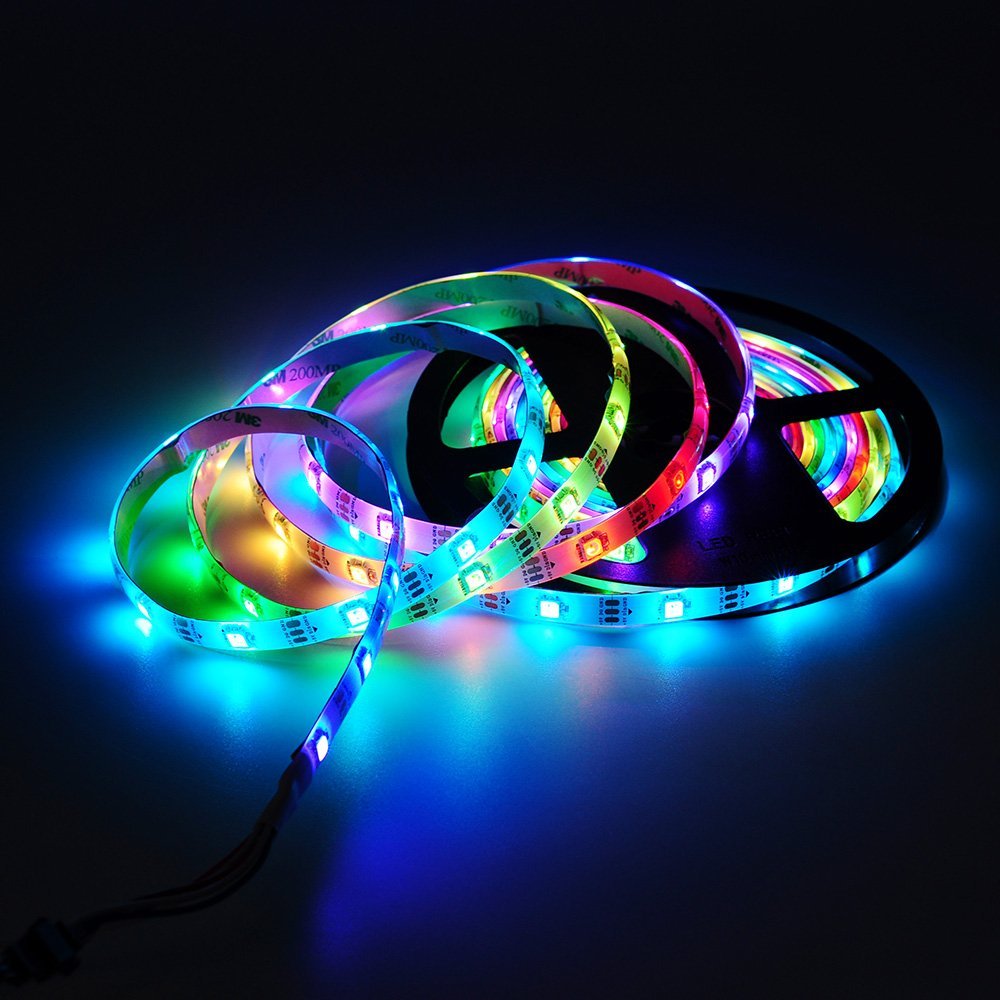

WS2812B Magic LED Strip Light Photo:
