24V 240W Power Adapter for LED Strip light Supply Transformer
Click on the image to view the original image
Product: views:524V 240W Power Adapter for LED Strip light Supply Transformer
Branch: allledlight
Size: 21X12X7 cm
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-11-19 19:09
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
allledlight
Model Number:
S-10A-24V
Output Power:
201 - 300W
Output Type:
Single
Input Voltage:
24V
Output Voltage:
220
Output Frequency:
50/60Hz
Output Current:
10A
Efficiency:
83%
Case material:
Aluminium
Operation volt:
0-50℃
Feature:
Switching Power Supply
Test:
100% full load burn-in test
Load Variation:
3%
IP Rate:
IP20
Warranty:
2 Years
Certification:
CE ROHS
Application:
LED Strip Light ,LED Display ,CCTV Camera

Packaging & Delivery

Selling Units:
Single item
Single package size:
21X12X7 cm
Single gross weight:
0.8 kg
Package Type:
White Box 36PCS/CTN
Lead Time:
Quantity(Piece)1 - 108109 - 3000>3000
Est. Time(days)25To be negotiated
LED Power Supply Product Description:
Model No.S-10A-24V
OUTPUTDC VOLTAGE24V
RATED CURRENT10A
CURRENT RANGE0~25A
RATED POWER240W
RIPPLE & NOISE(max).150mVp-p
VOLTAGE ADJ.RANGE3-5V
VOLTAGE TOLERANCE ±1.0%
LINE REGULATION ±0.5%
LOAD REGULATION ±0.5%
SETUP,RISE TIME1000ms, 50ms/230VAC  1000ms,   50ms/115VAC  at full load
HOLD UP TIME(Typ.)20ms/230VAC      16ms/115VAC at full load
INPUTVOLTAGE RANGE90 ~ 132VAC / 180 ~ 264VAC by switch    254 ~ 370VDC
FREQUENCY RANGE47~63HZ
EFFICIENCY(Typ.)87%
AC CURRENT(Typ.)4.5A/115VAC          2.5A/230VAC
INRUSH CURRENT(Typ.)40A/115VAC          55A/230VAC
LEAKAGE CURENT<3.5mA / 240VAC
PROTECTIONOVERLOAD105 ~ 150% rated output power
Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE27.6 ~ 32.4V
Protection type :Shut down O/P voltage, re-power on to recover
OVER TEMPERATURE95°C+5°C (3.3V); 100°C+5°C(5V); 90°C+5°C (7.5V); 85°C+5°C(12~24V); 80°C+5°C(27~36V); 75°C+5°C(48V) (TSW1) Detect on case
Protection type : Shut down O/P voltage, recovers automatically after temperature goes down
ENVIRONMENTWORKING TEMP.-20~+50°C (Refer to "Derating Curve")
WORKING HUMIDITY20~90% RH non-condensing
STORAGE TEMP HUMIDITY-20~+85°C, 10~95%RH
TEMPCOEFFICIENT±0.03% /°C(0~50°C )
VIBRATION10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMCSAFETY STANDARDSU60950-1 approved
WITHSTAND VOLTAGEI/P-O/P:3KVAC     I/P-FG:1.5KVAC     O/P-FG:0.5KVAC
ISOLATIONRESISTANCEI/P-O/P, I/P-FG, O/P-FG :100M Ohms / 500VDC / 25°C/ 70% RH
OTHERSMTBF271.9Khrs min MIL-HDBK-217F(25°C)
DIMENSION215*114*50mm (L*W*H)
PACKING0.36Kg

LED Power Supply Features
Input Voltage: 85-265V
Output Voltage: 24V DC
Output Current: 10A
Shell Material: Metal case / Aluminum base
Protection: Shortage Protection, Overload Protection, Over Voltage Protection
Widely used in Industrial automation, LED display, communications, etc.
Safety Compliance: CCC/ FCC / CE
Working Temperature: 0~40
Storage Temperature: -20~60
Ambient Humidity: 0~95% Non-Condensation

LED Power Supply Typical Applications
LED Modules, LED Pixel modules, LED strips

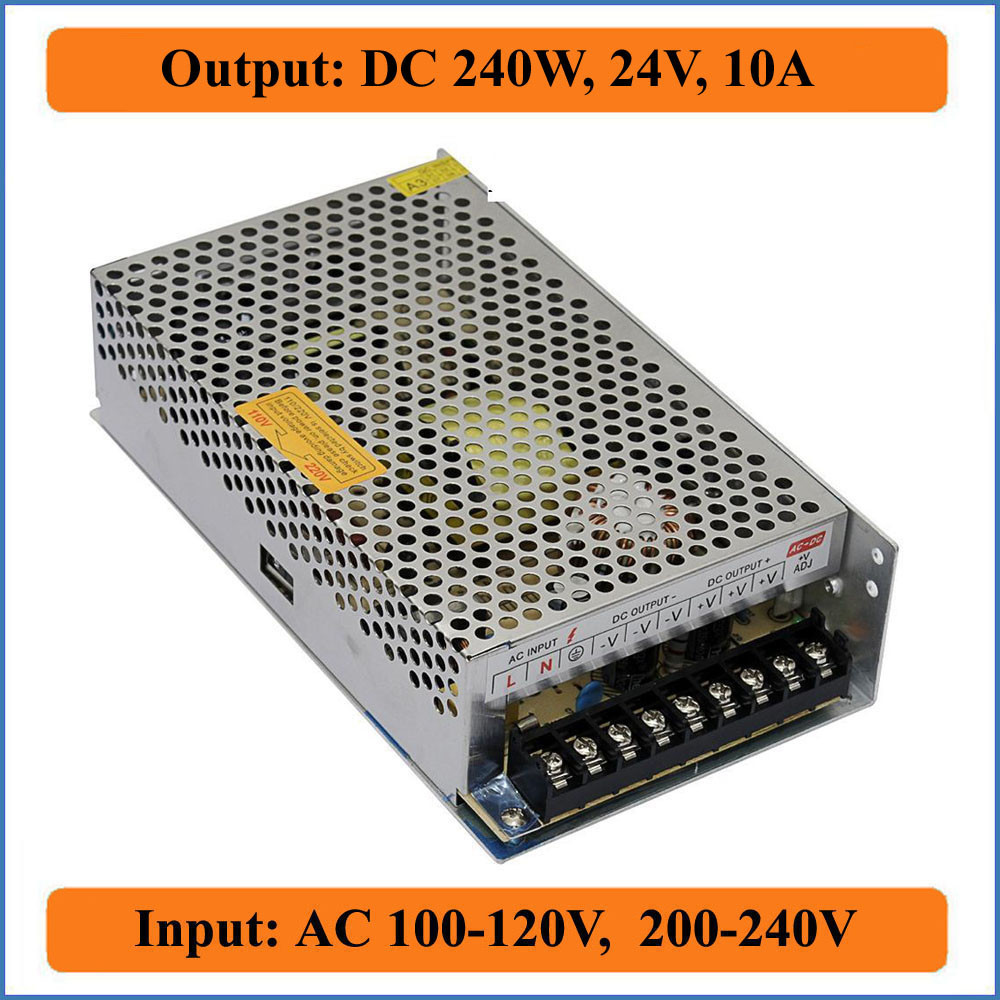

LED Power Supply Photos:
