Home > Products > Factory wholesales 5050 smd rgb led strip ws2811
Factory wholesales 5050 smd rgb led strip ws2811
Click on the image to view the original image
Product： views：6Factory wholesales 5050 smd rgb led strip ws2811
Branch： Allledlight
Size： 8X8X3 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 19:09
  Negotiated
Product Details
Overview
Quick Details
Support Dimmer:
Yes
Input Voltage(V):
DC12V
Lamp Power:
30
Lamp Luminous Flux(lm):
100lm
CRI (Ra>):
80
Working Temperature(℃):
-20 - 40
Working Lifetime(Hour):
30000
Lamp Body Material:
Silicon
Certification:
CE, RoHS
Place of Origin:
Guangdong, China
Brand Name:
Allledlight
Model Number:
WS2811-60LED-M
Application:
HOTEL
Light Source:
LED
LED Light Source:
5050SMD
Beam Angle:
120 degree
Length:
5M/Roll
PCB Background:
White ,Black
Protection Rate:
IP20,IP65,IP67
Pixel/m:
30Pixel/m
IC Type:
WS2811
OEM & ODM:
Available
Warranty:
1 Year
PCB Width:
10mm / 12mm

Packaging & Delivery

Selling Units:
Single item
Single package size:
8X8X3 cm
Single gross weight:
0.1 kg
Package Type:
Static Bag package
Lead Time:
Quantity(Meter)1 - 10001001 - 5000>5000
Est. Time(days)37To be negotiated

WS2181 60Leds/m 30Pixels/m 12V Digital LED Strip Feature:



Item NumberWS2811-60LED-M
LED TypeSMD5050
LED Quantity60Leds/M
Pixel Quantity30Pixel/m
IC TypeWS2811
 3 LED 1ic  SMD5050 RGB LED)
Signal Protocol SPI (Data,GND,Positive)
Wattage9W/M
PCB Size10mm width,
Length5Meters /Reel
Working VoltageDC12
Light Colordigital RGB,Each LED individual control
IP GradeIP20:Non waterproof with 3M  tape
IP65:Soft glue Cover LEDS,3M tape
IP67:Soft tube waterproof Or Soft Shrinkable tube wateproof
IP68:Soft tube+Glue filled waterproof
PCB ColorWhite ,Black Color
Working temperature-20 to 60°C
View Angle120°
Life Span>50000hrs



Note:
The price is only Led Strip, Not Included Power Supply or Led Controller!
WS2811 Must Use DC12V Power Supply AND Led Controller to Control!
Every 0.5meter with solder joints, please note!



WS2181 60Leds/m 30Pixels/m 12V  Digital LED Strip Specifications:


(1) Working Voltage: DC 12V
(2) LED Source: SMD 5050 RGB
(3) LED Chip: Epistar
(4) LED QTY: 30/48/60/96/144 LED/M
(5) IC QTY: 10/16/20/32/48 Pcs/M
(6) Power: 9/14.4/18/28.8/43.2 W/M
(7) Grey Scale: 256 / Color
(8) Cutability: 3 led / cutting ( External 2811 ic, 1 ic control 3 LED )
(9) Beam Angle: 120 °
(10) Color Mode: 133Pattern & 100 Speeds
(11) Dimension: 5000mm x 10mm x 2.4mm
(12) Packaging: 5m / roll 12v ws2811 rgb strip + 3 pin connector


PCB color:

White: White PCB;  Black: Black PCB



Protection grade:

(1) IP30 --- No waterproof, for indoor use

(2) IP65 --- Silicone coating, easy cut, outdoor use

(3) IP67 --- Silicone tube, need reseal after cut, outdoor use

(4) IP68 --- IP65+IP67, can work underwater ( if you need we can make for you ! )



WS2181 60Leds/m 30Pixels/m 12V Digital LED Strip Caution:
1.Storage temperature:-40°to +80°
operating temperature:-25°to +60°
2.installation surface must be smooth,clean and dry.
3.the part of LED components can not be fixed on the surface of the sharp edge.
4.strip should not be collided or crushed.
5.strip can be cut following the cutting lines.



WS2181 60Leds/m 30Pixels/m 12V Digital LED Strip Package Include:

1roll led strip with antistatic bag

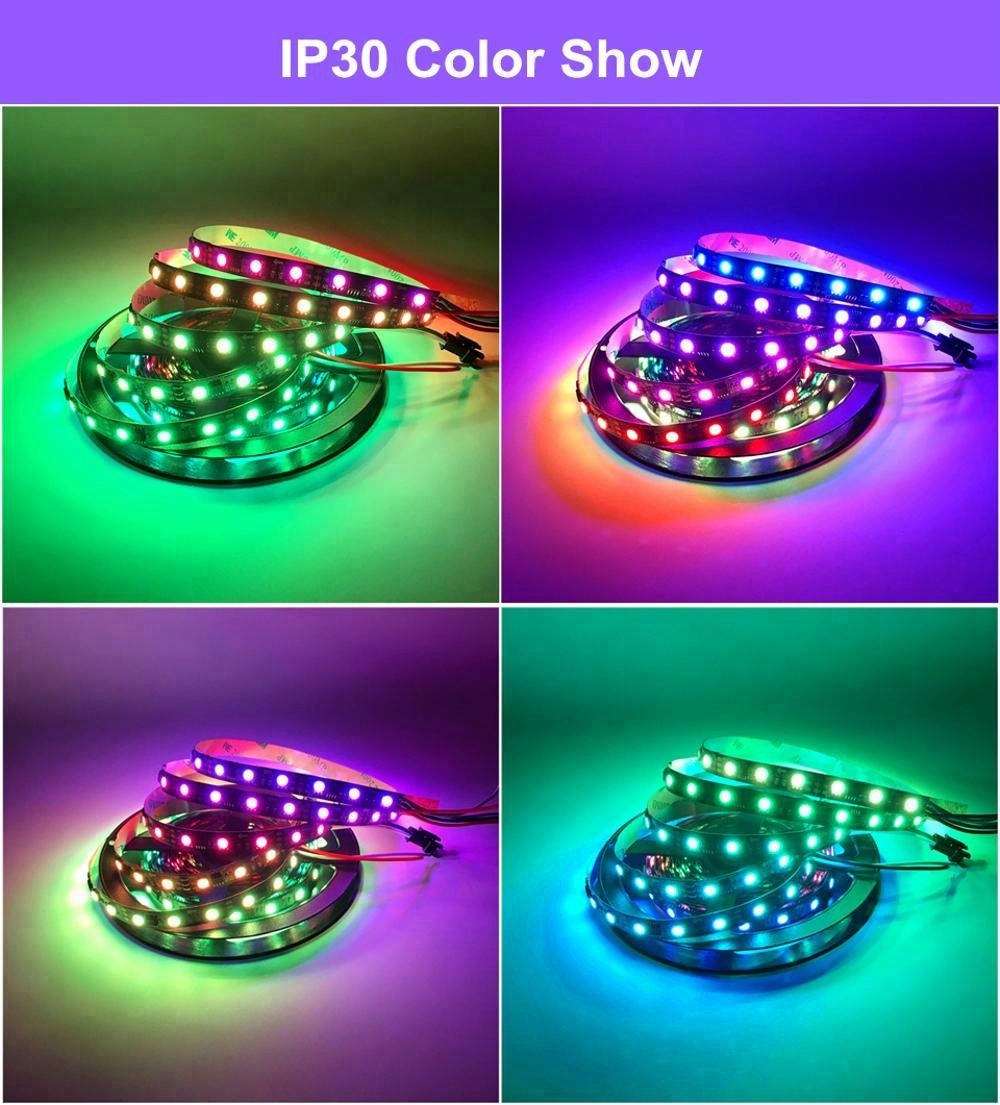

WS2181 60Leds/m 30Pixels/m 12V Digital LED Strip Light Photo:
