Home > Products > Full Color WS2811 LED Strip DC12V Black / White PCB 5050 RGB Smart IC Pixel Control WS2812B Led Strip Light
Full Color WS2811 LED Strip DC12V Black / White PCB 5050 RGB Smart IC Pixel Control WS2812B Led Strip Light
Click on the image to view the original image
Product： views：1Full Color WS2811 LED Strip DC12V Black / White PCB 5050 RGB Smart IC Pixel Control WS2812B Led Strip Light
Branch： Allledlight
Type： Flex LED Strips
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 19:09
  Negotiated
Product Details
Overview
Quick Details
Type:
Flex LED Strips
Input Voltage(V):
DC12V
Lamp Power:
30
Lamp Luminous Flux(lm):
100lm
CRI (Ra>):
80
Working Temperature(℃):
-20 - 40
Working Lifetime(Hour):
30000
Lamp Body Material:
Silicon
Certification:
CE, RoHS
Place of Origin:
Guangdong, China
Brand Name:
Allledlight
Model Number:
WS2811-60LED-M
Light Source:
LED
Beam Angle:
120 degree
Length:
5M/Roll
LED QTY:
300LED /Roll
PCB Background:
White ,Black
Protection Rate:
IP20,IP65,IP68
Pixel/m:
20Pixel/m
IC Type:
WS2811
OEM & ODM:
Available
Aging Time:
24 Hours
Warranty:
1 Year
Item Type:
Light Strips
Color Temperature(CCT):
Pixel
LED Light Source:
5050SMD
Emitting Color:
Changeable
Supply Ability
Supply Ability:
50000 Roll/Rolls per Week
Packaging & Delivery
Packaging Details
Static Bag package
Port
Yantian Shenzhen Port

WS2811 Magic LED Strip Light Data :



Item NumberWS2811
LED TypeSMD5050
LED Quantity60Leds/M
Pixel Quantity20Pixel/m
IC TypeWS2811
  1 WS2811 IC control 3 LED Chip,
Signal Protocol SPI (Data,GND,Positive)
Wattage14.4W/M
PCB Size10mm width,
Length5Meters /Reel
Working VoltageDC12V
Light Colordigital RGB,Each LED individual control
IP GradeIP20:Non waterproof with 3M  tape
IP65:Soft glue Cover LEDS,3M tape
IP66:Soft tube waterproof Or Soft Shrinkable tube wateproof
IP68:Soft tube+Glue filled waterproof
PCB ColorWhite ,Black
Working temperature-20 to 60°C
View Angle120°
Life Span>50000hrs



 WS2811 Magic LED Strip Light Description:

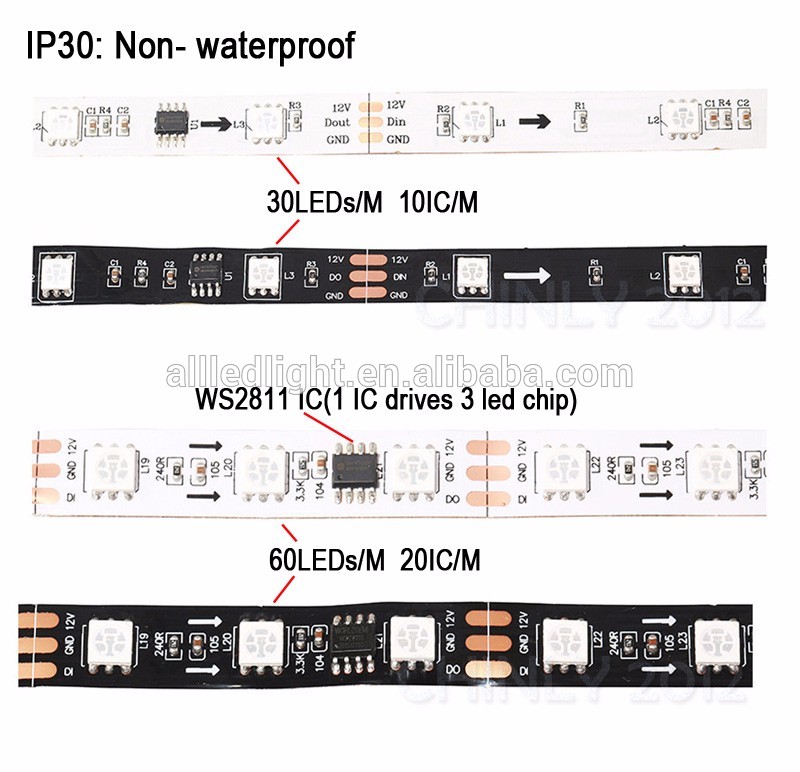

1.LED Type: 5050SMD with External IC WS2811 (1 IC control 3leds)

2.PCB color: White PCB / Black PCB

3.LED numbers: 30LEDs/m,60LEDs/m

4.Strip Length: 0.5m/1m/2m/3m/4m/5m

5.Power: 7.2w/m (30leds/m) , 18w/m (60leds/m)

6.Waterproof Protection class :  IP30 - No Waterproof ,  IP65 - Waterproof in Silicon Coating  , IP67 - Waterproof in Silicone Tube

7.PCB Width:  30leds/m strip -10mm , 60leds/m strip -10mm

8.Operating voltage:DC12V

9. Operating temperature: -20 to 50 °

10.Viewing Angle: 120 °

11.IP30/IP65 Strip Have Double side Adhesive Tape On The Back,Ip67 Strip has not Double Adhesive on the Back,Installation Surface Must Be Smooth, Clean And Dry

12.Colors:Full color RGB, dream color changing

 WS2811 Magic LED Strip Light Application:

Making led screen, led wall, advertising board, apply to hotel, KTV, bars, advertisement company, decoration company, the city lighting project, entertainment and leisure places lighting.



 WS2811 Magic LED Strip Light Package Include:

1pcs led strip (not include any controller or adapter,need to order separately)

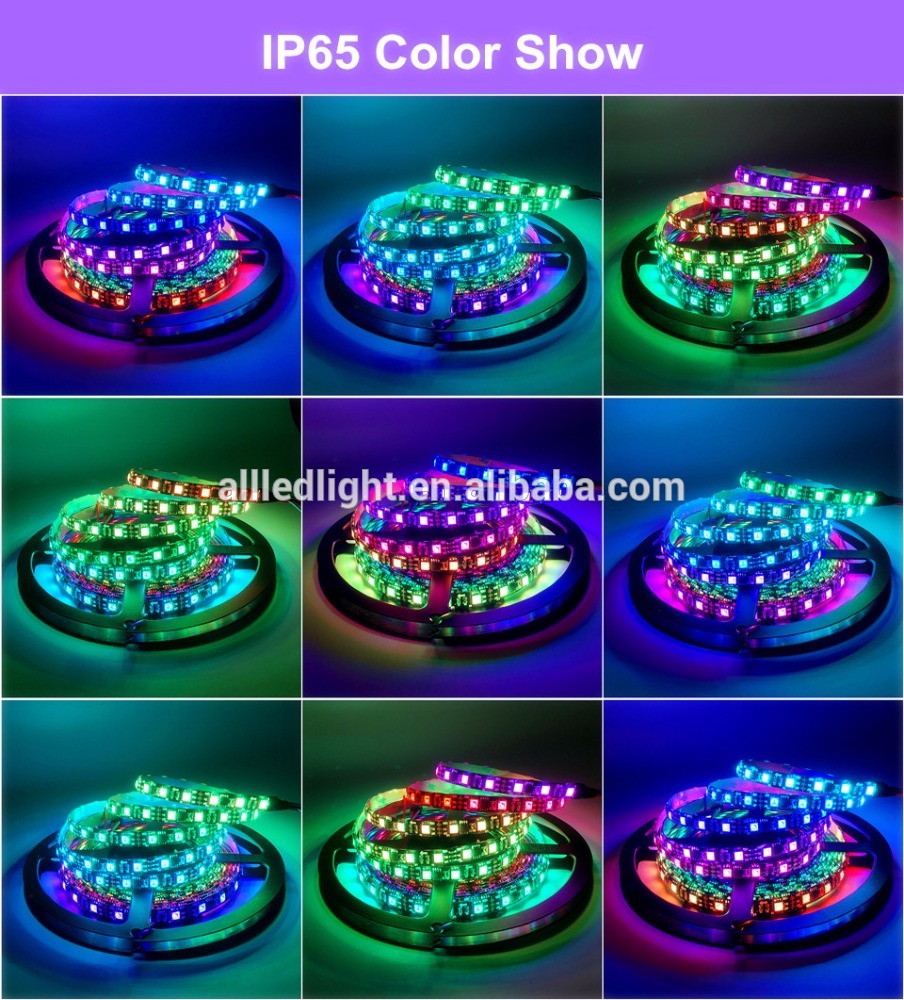

WS2811 Magic LED Strip Light More Photos :
