WS2182B 30Leds/m 30Pixels/m 5V Digital LED Strip :
WS2182B 30Leds/m 30Pixels/m 5V Digital LED Strip Feature:
| Item Number | WS2812B-30LED-M |
| LED Type | SMD5050 |
| LED Quantity | 30Leds/M |
| Pixel Quantity | 30Pixel/m |
| IC Type | WS2812B/SK6812 |
| (IC Built in SMD5050 RGB LED) | |
| Signal Protocol | SPI (Data,GND,Positive) |
| Wattage | 9W/M |
| PCB Size | 10mm width, |
| Length | 5Meters /Reel |
| Working Voltage | DC5V |
| Light Color | digital RGB,Each LED individual control |
| IP Grade | IP20:Non waterproof with 3M tape |
| IP65:Soft glue Cover LEDS,3M tape | |
| IP66:Soft tube waterproof Or Soft Shrinkable tube wateproof | |
| IP68:Soft tube+Glue filled waterproof | |
| PCB Color | White ,Black |
| Working temperature | -20 to 60°C |
| View Angle | 120° |
| Life Span | >50000hrs |
WS2812B 30Leds/m 30Pixels/m 5V Digital LED Strip Specifications:
*Architectural lighting
*Amusement park
*Amusement park
*Theatre and aircraft cabin mood lighting
*Hallway and walkway lighting
*Backlighting for signage letters
*Cove lighting
*Emergency exit path lighting
*Cabinet and under counter lighting
*Exhibition stands and panels
*Display cases
WS21812B 30Leds/m 30Pixels/m 5V Digital LED Strip Caution:
1.Storage temperature:-40°to +80°
operating temperature:-25°to +60°
2.installation surface must be smooth,clean and dry.
3.the part of LED components can not be fixed on the surface of the sharp edge.
4.strip should not be collided or crushed.
5.strip can be cut following the cutting lines.
operating temperature:-25°to +60°
2.installation surface must be smooth,clean and dry.
3.the part of LED components can not be fixed on the surface of the sharp edge.
4.strip should not be collided or crushed.
5.strip can be cut following the cutting lines.
WS2812B 30Leds/m 30Pixels/m 5V Digital LED Strip Package Include:
1roll led strip with antistatic bag

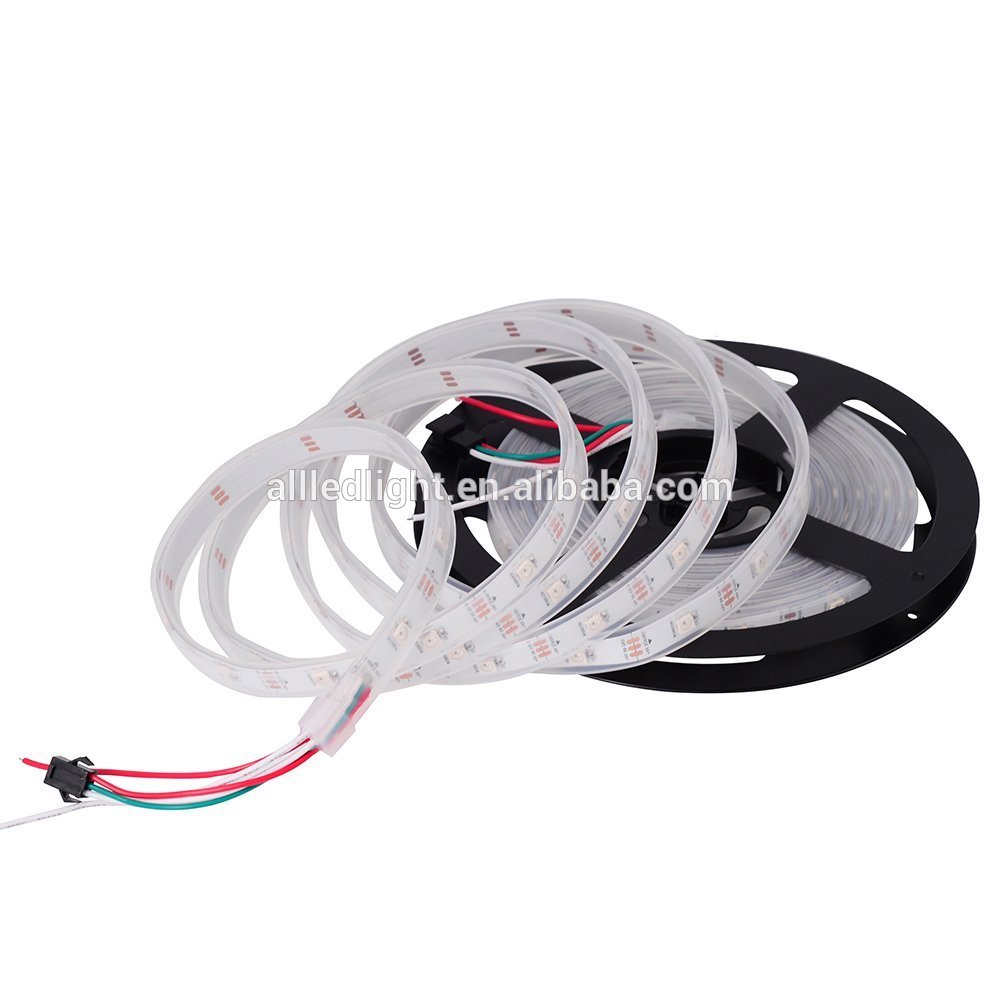

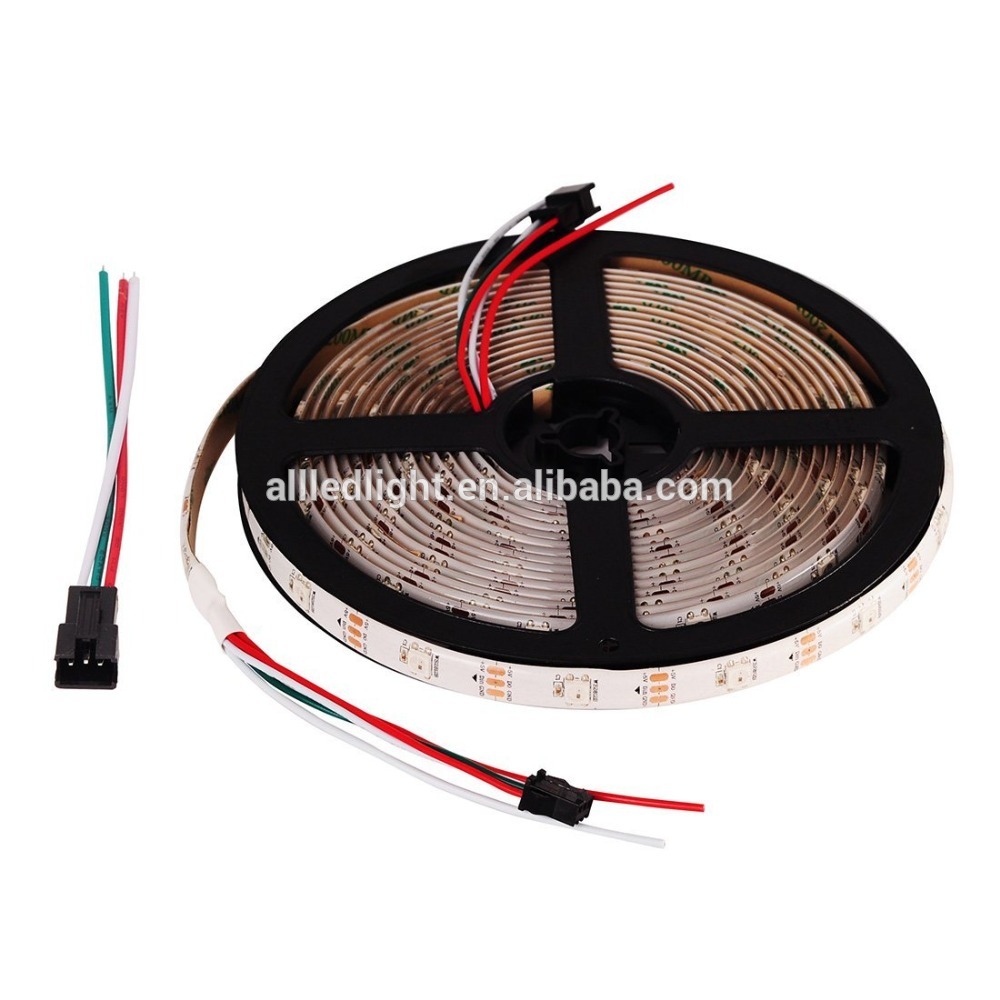

WS2812B 30Leds/m 30Pixels/m 5V Digital LED Strip Light Photo:
