- Place of Origin:
- Guangdong, China
- Light Source:
- LED
- Input Voltage(V):
- 5v
- Lamp Luminous Flux(lm):
- 300
- CRI (Ra>):
- 80
- Working Temperature(℃):
- -20-60
- Working Lifetime(Hour):
- 50000
- IP Rating:
- IP65
- Certification:
- RoHS, EMC
- Warranty(Year):
- 1
- Brand Name:
- Star Sources
- Model Number:
- G20
- Application:
- HOTEL, Garden, Energy storage
- Power Supply:
- DC
- Capacity:
- 2600mAH
- LED QTY:
- 12 x .05W LED
- Length:
- 155*40*34 MM
- Special Features:
- Dimmable +magnets+adhesive
- Working Time:
- 4-50Hours
- Volt:
- 5V
- Power Source:
- AC & Battery
- Aging Time:
- 24 Hours
- Package:
- Gift Box
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 25X15X15 cm
- Single gross weight:
- 0.25 kg
- Package Type:
- Gift Box

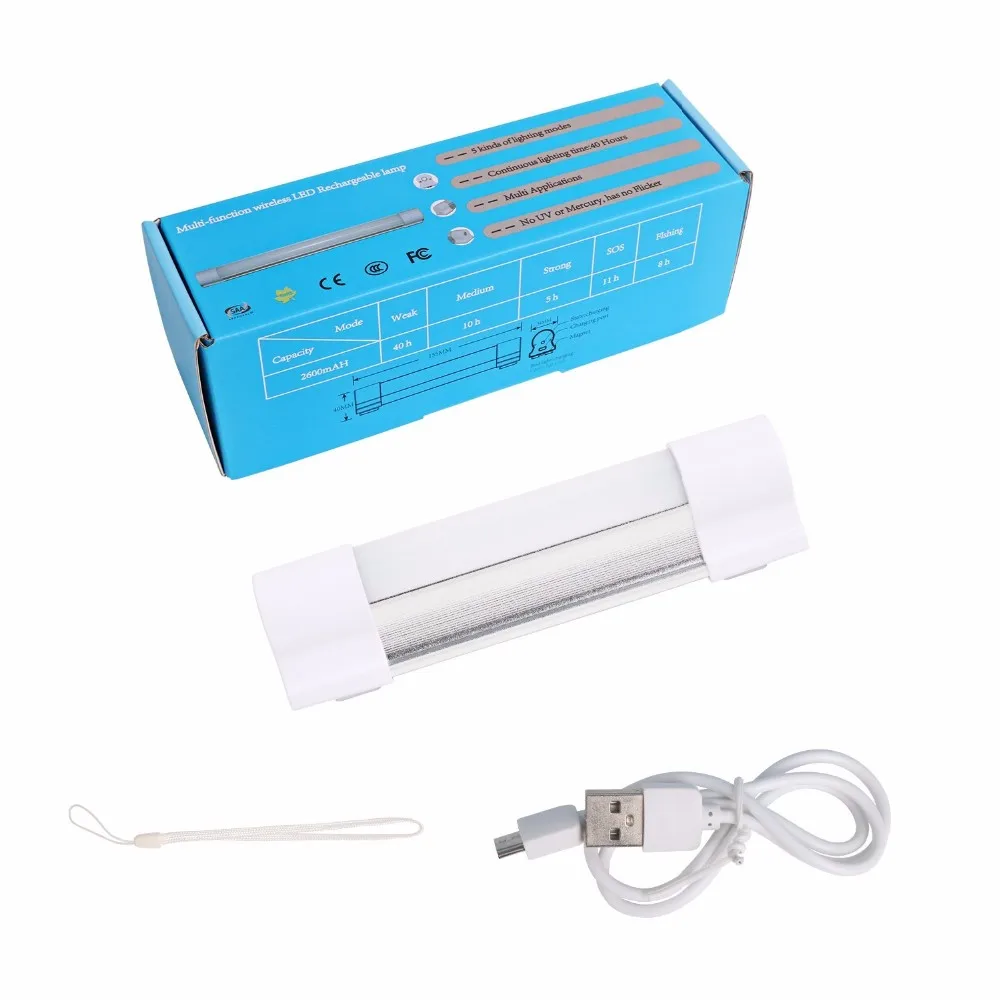

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 500 >500 Est. Time(days) 3 To be negotiated
G20 Portable LED Emergency Lamp Usage :
1.Weak/Medium/Strong:Short press the button and switch the light into Weak/Medium/Strong/Off 4 cycle step by step.
2.Flashing/SOS: Long press the button 2 seconds to get in Flashing,than long press the button another 2 seconds to get in SOS During the Flashing/SOS,short press the button to get in strong model.
3.charging :Red is charging ,Green is full.
4.charging treasure function output: 5V 2.1A.
G20 Portable LED Emergency Lamp Specifications:
1.Input voltage/current:DC5V 2±0.2A
2.Battery Capacity:2600±50mAh
3.Charge Hour:1.5-2.5H
4.Weight:140±5g
5.Lifetime:
1):Strong:3-4H
2):Medium:6-7H
3):Weak:39-40H
4):Strobe Mode:6-7H
5):SOS Mode:7-8H
6.Output Power:
1):Strong:1.8-2W
2):Medium:0.9-1.1W
3):Weak:0.1-0.3W
7.Shape:Milk Shape
8.Beam Angle:120°
9.SMD:2835
10.LED Quantity:Red:12pcs White:13pcs
11.Ra>70
12.CCT: CW:6000-6500K
13.Luminous flux:
1).High(Max):200Lm
2).Middle(Max):100Lm
3).Low(Max):20Lm
14.Battery lifetime:300 times (capacity above 80%)
G20 Portable LED Emergency Lamp Multiple Security Protection:
1. Over-current Protection
2. Overcharge Protection
3. Short Circuit Protection
4. Regulator Protection
5. Temperature Protection
6. Leakage Protection

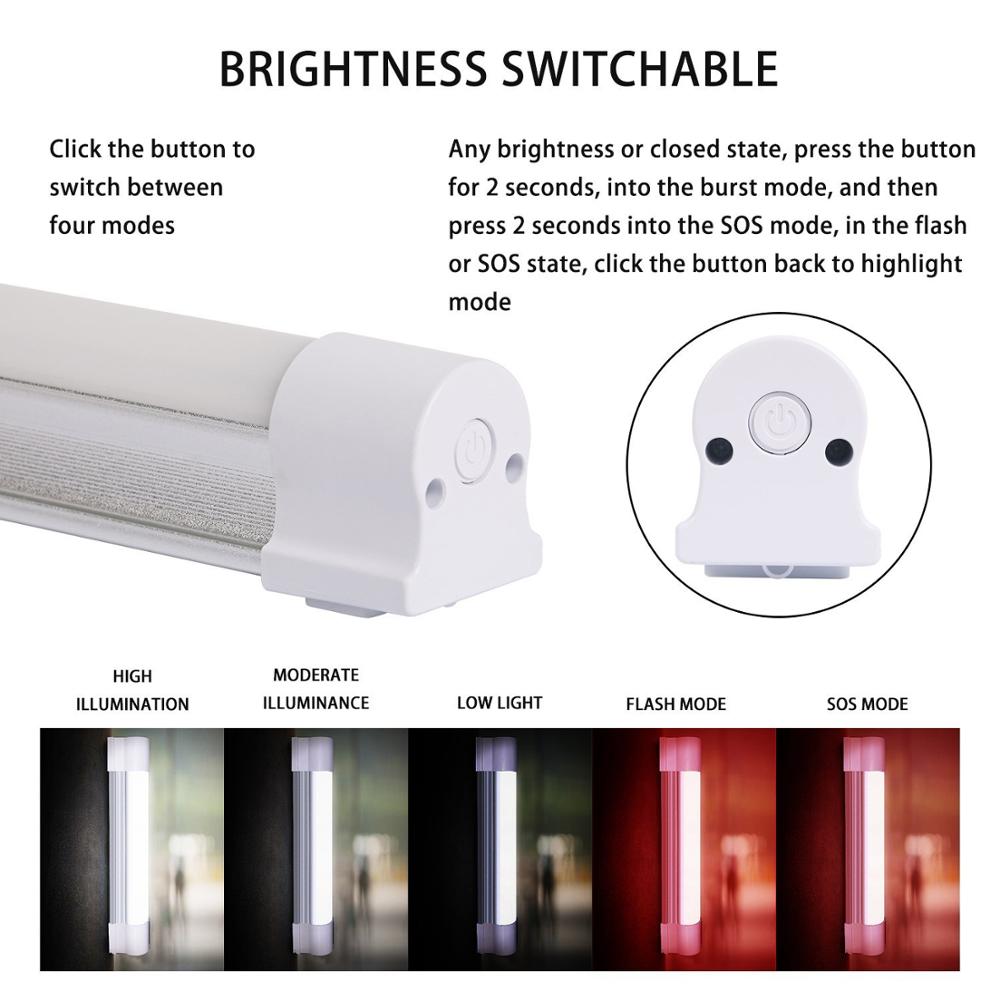

G20 Portable LED Emergency Lamp Operational Guide:
- In the oFF state, click the button four-speed cycle switch: low brightness, medium brightness, high brightness, off;
- During brightness State or Off the state, to press the button for 2 seconds to enter into the burst mode, and then press 2 seconds to enter the SOS mode, in the burst or SOS state, click the button to return to highlight mode;
- Indicator light: red light when charging, green light for Full.
G20 Portable LED Emergency Lamp Application :
It is ideal for corridors, workshops, basements, indoor garages, stairwells, doorways, closets, and other dark places in your home and shed.
G20 Portable LED Emergency Lamp Natural light - Health to protect the eyes
Led light use low voltage current driver, no flashing, no glare, evenly intensity, wide lighting foot; It is soft, smooth, continuous,and it is the ideal light source.
G20 Portable LED Emergency Lamp Easy to install
This is LED light can be mounted almost anywhere! Choose to hang it up on your wall or attached it onto any magnetic surface.
G20 Portable LED Emergency Lamp Package Content:
- 1 x G20 portable LED lamp
- 1 x User Manual
-1 x rechargeable wire
-1 x hang cable
G20 Portable LED Emergency Lamp Photos:
