high quality g23 led pl lamp ,with 52pcs 5050smd,10W,AC85V-265V , Pure White Color
G24 LED Light Specifications:
| Model | G23-5050SMD-52D-PW |
| Input Voltage | AC85-265V (50-60HZ) |
| LED Color | Warm White (3000-3200K) Pure White (4000-4500K) Cool White (6000-6500K) |
| LED QTY | 60PCS 5050SMD |
| LED Source | Epistar LED From Taiwan |
| Base Type | G23/G24/E27 |
| Beam Angle | 180° |
| Power Consumption | 12W |
| Lamp Lumen (Lm) | 1200LM±10% |
| Color Rendering Index | ≥80 Ra±5% |
| Power Factor | ≥0.95 |
| Working Temperature | -20°C- +55° |
| Dimensions | 165*35MM |
| IP Grade | IP40 |
| Shell Material | Aluminium +Clear PC |
| Certificate | CE RoHS |
| Package | White Box |
| Lifespan | 50000 Hours |
| Warranty | 2 Years |
| Application Environment | Indoors Use Only |
G24 PL LED Light Features:
1. Energy-saving and environmentally friendly, high brightness
2. no UV or IR light radiation
3. Easy to install and maintain and normal base type E can be matched.1.Energy: the white LED consumes only 1/10 the energy of an halogen lamp, 1/4 of an energy-saving lamp
4. Use high thermal conductivity aluminium, good heat dissipation
5. Long life: average 40,000 hours or more
6. Light health: No ultraviolet, infrared or other radiation, no glare or interference reduces visual fatigue
7. Green: No lead, mercury, or other pollutants, environmentally friendly.
9. Green Product, and No strobe, no radiation, friendly to eyes and body.
10. Variable designs are available according to your installation environment .Instant start,no flickering, no humming.
11. New inner high efficiency (95%) With heat protection system, the constant current driver can work under unstable voltage.
12. Special circuit design,each LED can work separately thus it can avoid the influnence that a broken LED causes.
13. Working Temperature: -10~+60.
14. No electric wave.
15. No such hazard that mercury or lead enters the environment.
16. No RF interference.
17. Warranty: 2 years.
18. Adopt high brightness and low light decline led. Good quality power LED source.
19. Can choose colour temperatures from 2700k-7000k , color rendering index can be higher than 70, or 80.
G24 PL LED Light Application:
1. Replace traditional evergy saving plug lamps
2. High-class strores, shipping malls, hotel, meeting room, exhibition, office, home, commercial theater, museum lighting, fashionable dress act lighting.
3. More and more people are joining the movement to care for the environment and for human health. Be One of Them!
G24 PL LED Light Install Cautions:
1. Cut off the power supply before replacing the lamp.
2. Keep away from direct sunshine and high temperature.
3. Indoor use only.
4. If any question about the installation, consult a competent electrician.

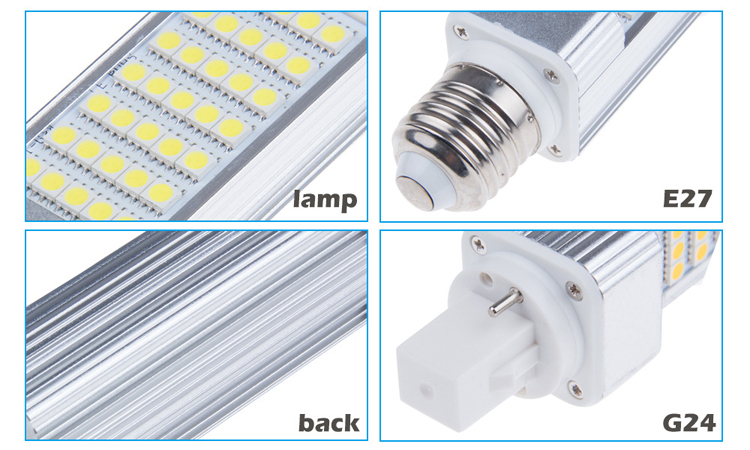

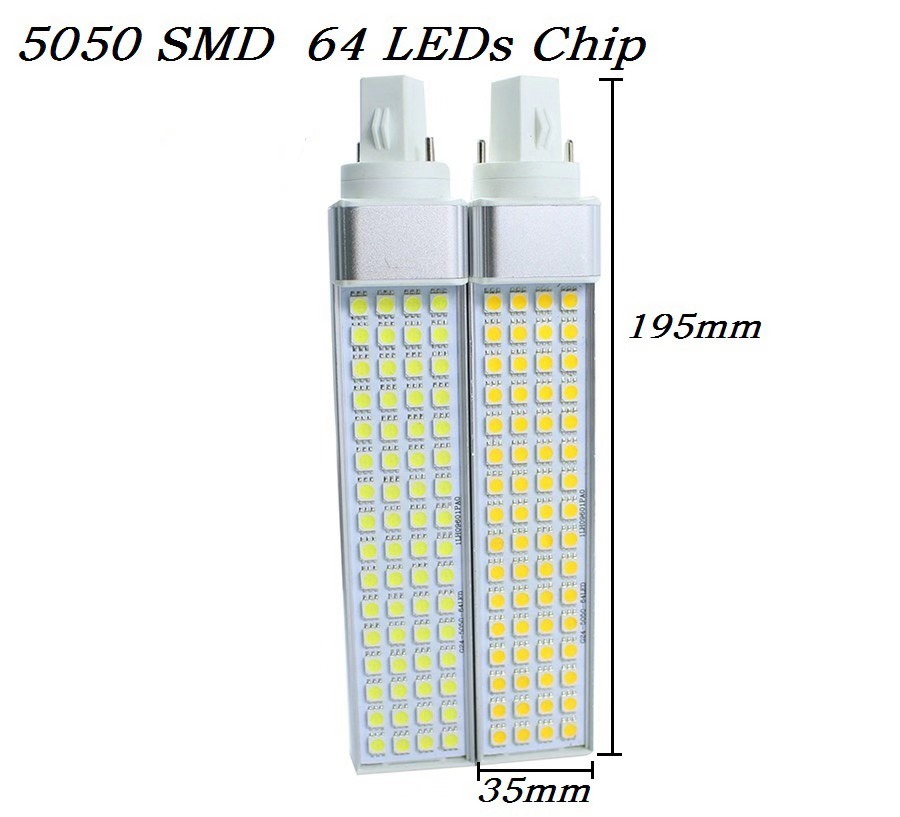

G24 PL LED Light More Photos :
