- Light Source:
- LED
- Input Voltage(V):
- AC85-265V
- Lamp Luminous Flux(lm):
- 2400
- CRI (Ra>):
- 75
- Working Temperature(℃):
- -20 - 55
- Working Lifetime(Hour):
- 50000
- IP Rating:
- IP54
- Certification:
- CE, RoHS
- Warranty(Year):
- 2
- Place of Origin:
- Guangdong, China
- Brand Name:
- Allledlight
- Model Number:
- E40-28X1W-6K
- Beam Angle(°):
- 180
- Application:
- Garden, high-way,urban major&secondary road
- Lamp Power(W):
- 28
- Lamp Body Material:
- Aluminum
- Lamp Luminous Efficiency(lm/w):
- 80
- Base Type:
- E40/E27
- LED QTY:
- 28PCS 1W LEDs
- Led Luminous Efficiency:
- 110-120lm/w
- Power Factor(PF):
- > 0.95
- Material:
- Aluminum, PMMA, PBT
- Warranty:
- 2 Years
- Supply Ability:
- 1000 Piece/Pieces per Week
- Packaging Details
- White Box Package
QTY/CTN :16PCS/CTN
CTN SIZE :50*46*27CM
G.W :21KGS
- Port
- FOB Shenzhen
- Lead Time:
Quantity(Pieces) 1 - 100 >100 Est. Time(days) 7 To be negotiated

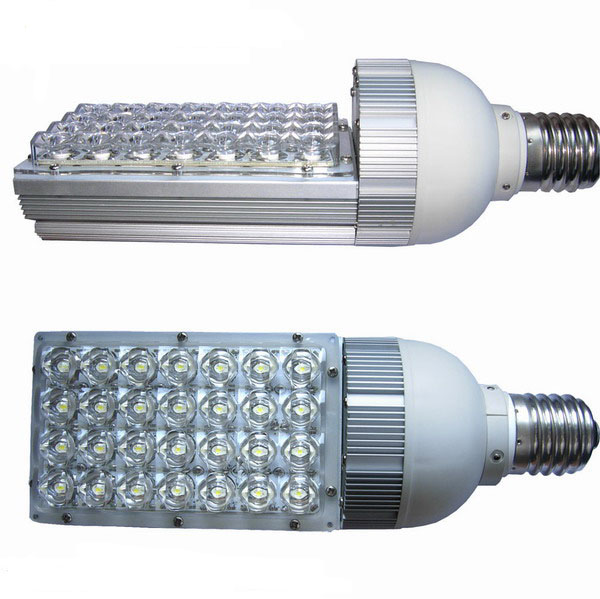

E40 E27 led street light outdoor 28W street light AC85-265V 2 years Warranty Replaced CFL HPS
E40 LED Street Light Specifications:
Model NO. | E40-28X1W-6K |
Power | 28*1W |
LED QTY | 28PCS LEDs |
voltage | AC85-265V |
LED Light source | Epistar or Bridgelux |
Beam angle | 180degree |
Size of product | D90*H260MM |
LED Color | Warm White (3000-3200K) Pure White (4000-4500K) Cool White (6000-6500K) |
Lamp base | E27/E40 |
Working temperature | -20-+55° |
Lamp luminus Flux(lm) | 2200-2300LM |
Power factor | >0.9 |
Color rendering index | 75-80Ra |
Materials | copper PCB, Aluminum base |
Lamp body material | alluminum |
Protection rating | IP54 |
Warranty | 2 years |
Working lifespan | 50,000hrs |
Certification | CE, ROHS |
E40 LED Street Light Feature:
1. CE and RoHS approved.
2. Die-casting aluminum casing and high intensity toughened glass cover
3. High efficiency and power factor LED driver
4. Wide radiation angle, huge lighting area
5. Start without delay and flicker free
6. Good color rendering
7. Warm and cold color temperature are available
8. High shock & vibration resistant
9. Ideal heat dissipation design
10. No UV & IR, No Blinking and No Mercury & Lead free
11. Patented fixture design and Led package technology
12. Energy saving system, saving 50% energy than the conventional Metal halide lamp, Sodium Light or HPS light
E40 LED Street Light Application:
1. Tunnel, Subway, Underground Lighting;
2. Gymnasium, Sports Stadium Lighting;
3. Building, Billboard Lighting;
4. Gas Station, Garage Lighting;
5. Park, Garden Lighting;
6. Workshop, Factory Lighting;
7. Warehouse, Storage Lighting;
8. Yard, Square Lighting;
9. Road,Highway Lighting;
10. Station,Dock Lighting etc.

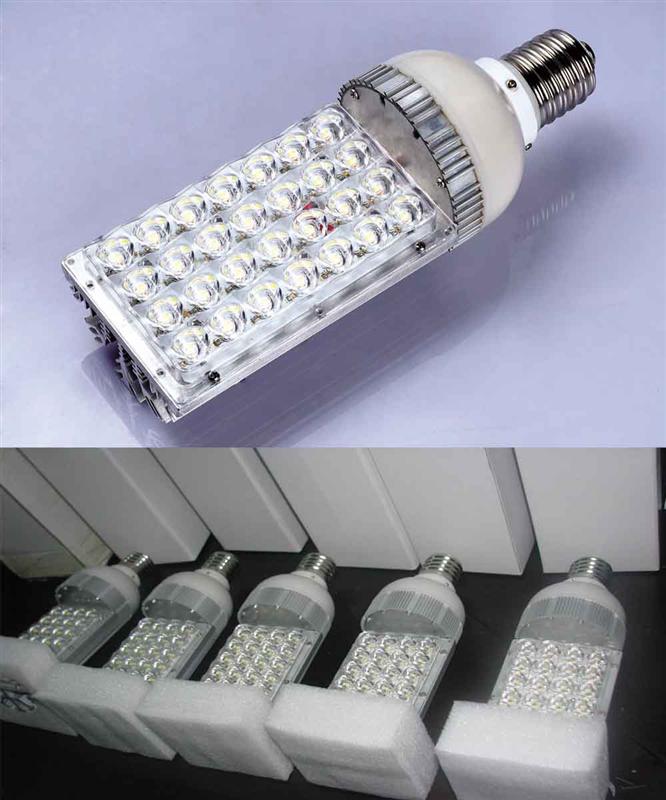

E40 LED Street Light More Photos & aging test :
