Click on the image to view the original image
Note:
The price is only Led Strip, Not Included Power Supply or Led Controller!
SK6812 Magic LED Strip Light Feature :
30, 60, 144: 30leds/m,60leds/m,144leds/m
IP30: Non- waterproof
IP65: Waterproof in Silicon Coating
IP67: Waterproof in SiliconTube
(RGBCW 6000-6500K ;RGBWW 2700-3000K ; RGBNW 4000-4500K)
the length as you choose
LED source :5050SMD RGBW built-in SK6812 chipset
Voltage(DC):5V
Power: 144LEDs/meter -------43.2W / Meter
60LEDs/meter ---------18W / Meter
30LEDs/meter ---------9W / Meter
LED type :SMD5050
IC type : SK6812
LED/per meter:30, 60,144leds/Meter (each LED is separately controlled)
IC/per meter: 30, 60,144IC/Meter (1 IC drives 1 led chip)
Pixel /per meter :30, 60,144Pixels/Meter
Grey Grade: 256
Color: RGBW (WW 2700-3000K ; CW 6000-6500K;NW 4000-4500K)
PCB color:White / Black available
Waterproof Grade:IP30-----NON-Waterproof
IP65-----Epoxy
IP67-----silicone tube
IP30,IP65 ,There is a 3 M self-adhesive tape at the back side. You can install easily
SK6812 Magic LED Strip Light Data :
| Product Name | SK6812 -30LED-60LED- 144leds/m led strip |
| Volt | DC 5V |
| LED Chip | SMD5050 RGBW LED chip |
| IC Chip | WS2812B(WS2811 IC built-in 5050 RGB LED chip) |
| PCB Color | White PCB, Black PCB |
| PCB Width | 12mm |
| LED Singal | SPI |
| View Angle | 140° |
| Standard Reel Length | 1m/roll |
| Operating Temperature | -20 ~ +40°C |
| Storage Temperature | -40 ~ +80°C |
| Color | Addressable full color |
| IP Grade | IP30:Non waterproof with 3M tape |
| IP65:Soft glue Cover LEDS,3M tape | |
| IP67:Soft tube waterproof Or Soft Shrinkable tube wateproof | |
| IP68:Soft tube+Glue filled waterproof |
SK6812 Magic LED Strip Light Product Description :
Item Features:
This LED strip is wrapped by a silica gel hose which provide excellent water and dust proof
Low power consumption, Super-bright but running with low temperature
All the light spread and completely smooth, luminous very even
Long lifespan >50,000 hours
Available in different fixed colors and RGB (133changing modes can be realized)
Controller is designed for the magic led strip which can be available133 modes
Certified by both RoHS / CE / FCC
SK6812 Magic LED Strip Light Application :
Making led screen, led wall, advertising board. Apply to hotel, KTV, bars, advertisement company, decoration company,
the city lighting project, entertainment and leisure places lighting.
1m led strip with antistatic bag

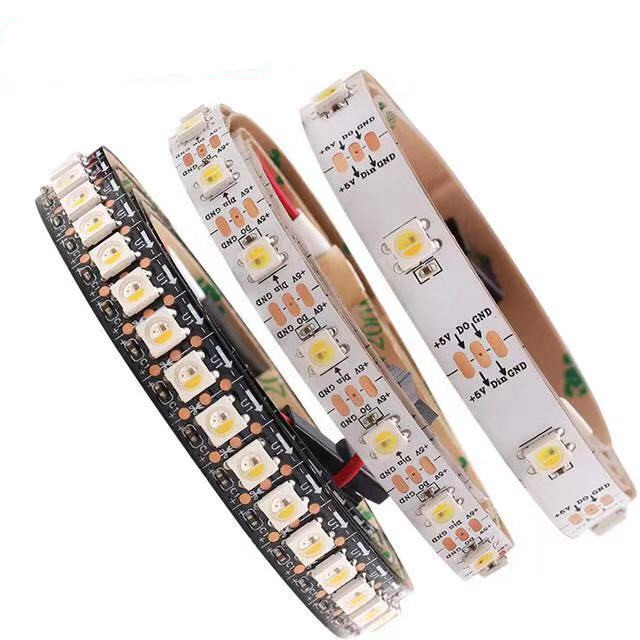

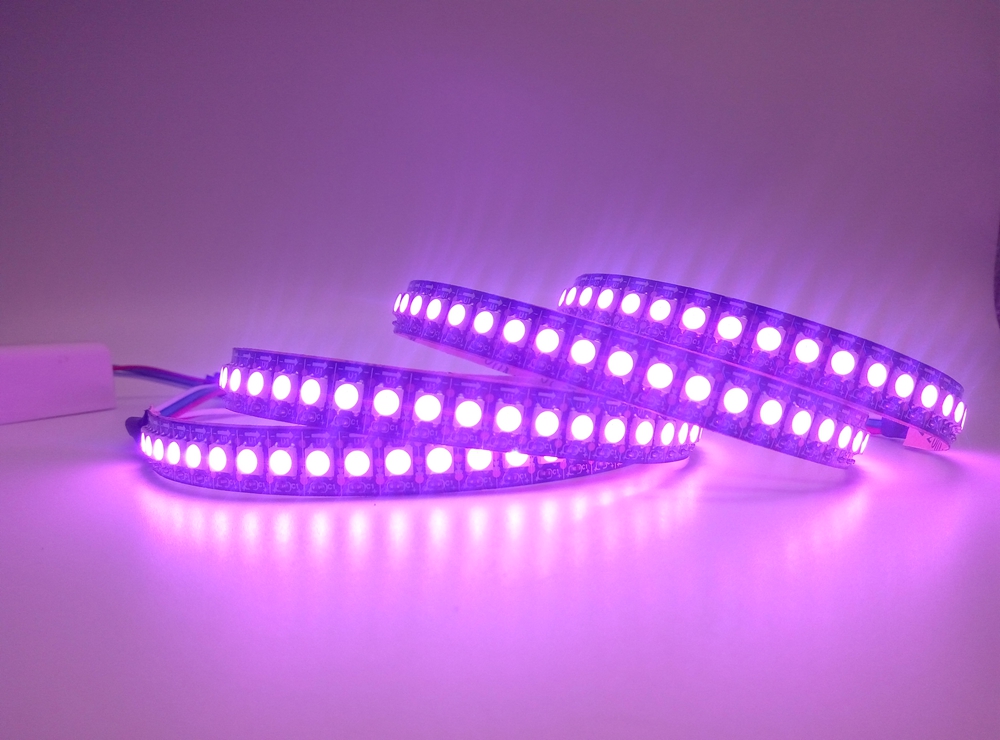

SK6812 Magic LED Strip Light Photo:
