WS2812B Magic LED Strip Light Data :
| Product Name | WS2812B 30/60/74/96/ 144leds/m led strip |
| Volt | DC 5V |
| LED Chip | SMD5050 RGB LED chip |
| IC Chip | WS2812B(WS2811 IC built-in 5050 RGB LED chip) |
| PCB Color | White PCB, Black PCB |
| PCB Width | 12mm |
| LED Singal | SPI |
| View Angle | 140° |
| Standard Reel Length | 5m/roll |
| Operating Temperature | -20 ~ +40°C |
| Storage Temperature | -40 ~ +80°C |
| Color | Addressable full color |
| IP Grade | IP30:Non waterproof with 3M tape |
| IP65:Soft glue Cover LEDS,3M tape | |
| IP67:Soft tube waterproof Or Soft Shrinkable tube wateproof | |
| IP68:Soft tube+Glue filled waterproof |
WS2812 Magic LED Strip Light Product Description :
Input voltage:DC5v;
Power:30leds/m----9watt/meter
60leds/m----18watt/meter
74leds/m----22watt/meter
96leds/m----28.8watt/meter
144leds/m----43.2watt/meter
LED resource: WS2812B led (5050 SMD RGB LED with built-in improved version of ws2811 ic)
LED:each LED is separately controlled
IC Type: improved version ws2812 IC(built inside the 5050 smd rgb led)
Of IC: (1 IC drives 1 led chip);
Pixels: 30/60/74/96/144/meter;
Grey scale: 256;
Bits/color:8-bits/color;
FPCB Width: 30leds/m----10mm
60leds/m----10mm
74leds/m----12mm
96leds/m----12mm
144leds/m----12mm
FPC color: BLACK/White
Protection rate: IP30 Non-Waterproof
IP65 Waterproof in Silicon Coating

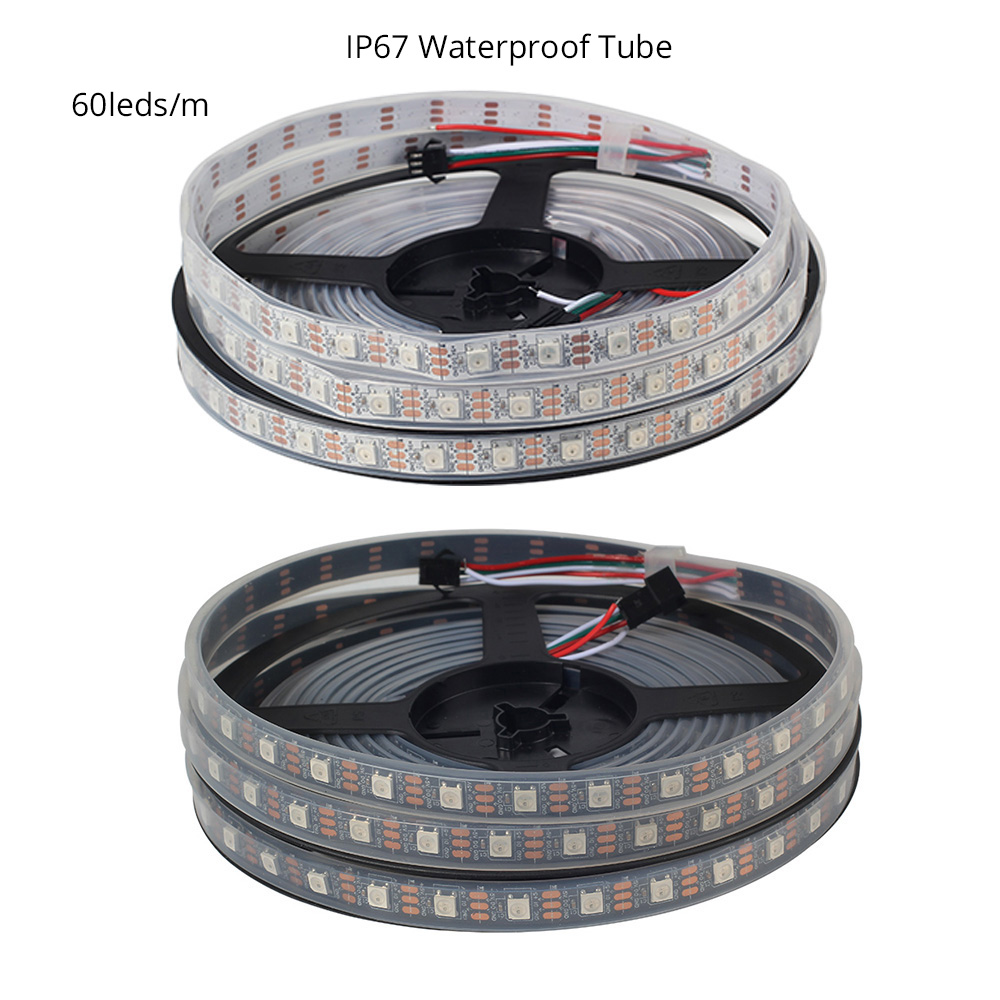

IP67 Waterproof in Silicone Tube
Colors:Full color RGB, dream color changing;
Cuttable:every LED is cuttable;
Package:in anti-static bag,IP30 IP65 with 3M adhensive tape on the back
(IP67 without 3M adhensive)
each strip with one free male connector for connector
Easy installation
Every LEDs lamp(one 2812B IC ) can be arbitrary cut off, good flexibility, easy installation, can be arbitrary bending.
Dream color lighting
Match use controller can appear colorful curtain-up/ flow water/raindrop/jump flash and so on hundreds of lighting effect,
you can also edit animation effect by Coreldraw/Flash/LedEdit software.
WS2812B Magic LED Strip Light Application :
Making led screen, led wall, advertising board. Apply to hotel, KTV, bars, advertisement company, decoration company,
the city lighting project, entertainment and leisure places lighting.
1m led strip with antistatic bag

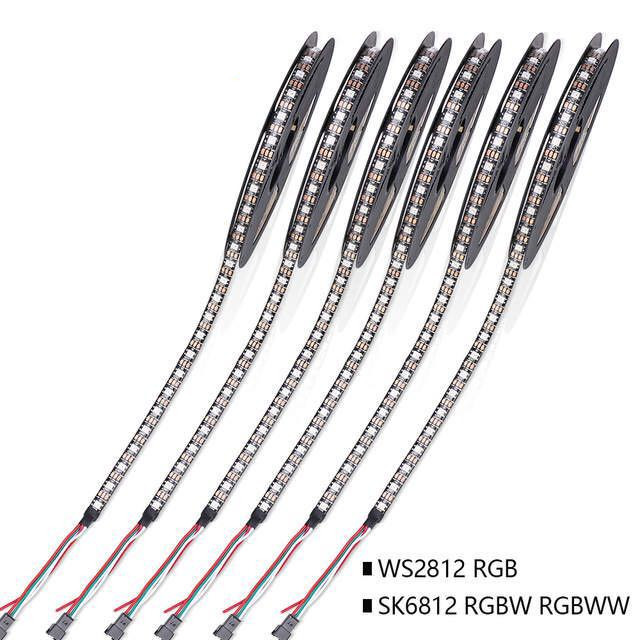

WS2812B Magic LED Strip Light Photo:
