Home > Products > Solar Portable Aviation Light, FAA L864 Medium Intensity Wind Cone High Bulidings Aircraft Warning Lights

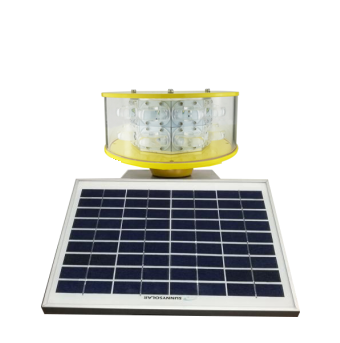

Solar Portable Aviation Light, FAA L864 Medium Intensity Wind Cone High Bulidings Aircraft Warning Lights
Click on the image to view the original image
Product： views：3Solar Portable Aviation Light, FAA L864 Medium Intensity Wind Cone High Bulidings Aircraft Warning Lights
Branch： Annhung
Type： Aviation Obstruction Lights
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:09
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
12Vdc
Lamp Power(W):
18
Lamp Luminous Flux(lm):
100%
Lamp Luminous Efficiency(lm/w):
120
CRI (Ra):
100
Color Temperature(CCT):
Warm White
Beam Angle(°):
Vertical Divergence 3 degrees
IP Rating:
IP65
Certification:
CE, RoHS
Emitting Color:
Red
Lamp Body Material:
Aluminum Alloy
Base Type:
Other
Light Source:
LED
Place of Origin:
Guangdong, China
Brand Name:
Annhung
Horizontal Output(degrees):
360
Operation Mode:
Dusk-to-Dawn operation(Solar panel as photocell)
Circuit Protection:
Integrated
LED Life Experience(hours):
>100,000
Output(watts):
18W
Charging Regulation:
Microprocessor controlled
Battery type:
Lithium ion battery
Weight:
8kg
Nominal Voltage (V):
12V
Autonomy (hours):
120
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
One piece build in foam carton
Port
Shenzhen
Picture Example:
package-img
Lead Time:
Quantity(Pieces)1 - 100 >100
Est. Time(days)15To be negotiated
Product Description

Product manual:

This Medium-intensity 2000cd Type B Aviation Obstruction Light flashing RED color, designed for marking top of obstacle which height is between 45 to 105 meters. Protect your buildings more better.

Ultra high intensity LED is used as light source which make performance better, and solar panel vertical degree is adjustable(30°) for get as much as sunlight in different area.Smarter design for you.

Our smarter design for you.

Compliance: ICAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 Medium Intensity Type B Obstruction Light

FAA L-864


Electrical

  Ultra high intensity LED light source saving power consumption and maintenance


Physical

  UV & vibrations protected polycarbonate lens for converging light

  Self-contained without external power supply, Cable cost saving & cabling job saving, No wiring job, nice &    easy       installation

  Battery: Lithium ion battery


System design

  Solar panel as photocell for day & night working mode (dusk to dawn mode)

  ON/OFF button beside base


Optional

GPS Synchronization

Infrared LED for pilot using NVG

Products' performance can be designed for different projects.


Application


   AH-MS-B solar medium-intensity light is specialized used on the top of the High Chimney, Telecommunication tower, Wind Turbine where there is no cable power supply and those facilities which have high requirements on lightning protection, and most time work with low intensity lights light installed on the lower place.

Detailed Images
Packing & Delivery

Product more parameters：

Light Source
Ultra high intensity LED
Emitting Color
Red
Intensity(cd)
2000cd
Solar Module Type
Mono crystalline Silicon
Charging Regulation
Microprocessor controlled
Battery type
Valve-Regulated Lead Acid Battery
Battery Capacity (Ah)
Depends on different visible range
Battery Service Life
Average 3 years
Body Material
UV protected Polycarbonate
Base Material
Stainless steel 304
Overall Size (mm)
515*500*360
Product Life Expectancy
Average 5 years
Waterproof
IP65
Humidity
0~95%
