- Type:
- Aviation Obstruction Lights
- Input Voltage(V):
- DC(12-48VDC) or AC(110-240VAC)
- Lamp Power(W):
- 5
- Lamp Luminous Flux(lm):
- 100%
- Lamp Luminous Efficiency(lm/w):
- 90
- CRI (Ra):
- 100
- Color Temperature(CCT):
- Cool White
- Beam Angle(°):
- Horizontal Output 360 (degrees)
- IP Rating:
- IP66
- Certification:
- CE, RoHS
- Emitting Color:
- Red
- Lamp Body Material:
- Aluminum Alloy
- Base Type:
- E27
- Light Source:
- LED
- Place of Origin:
- Guangdong, China
- Brand Name:
- Annhung
- Overall Size(mm):
- 254 by 210 by 90
- Weight(kg):
- 1.5
- Body material:
- Polycarbonate
- Base material:
- die casting aluminum
- Light source:
- LED
- Our lens:
- Unique designed PMMA lens
- Compliance:
- ICAO, FAA standard
- Bird deterrent spike on top:
- Make the lights cleam and concenienr
- Main-standby mode:
- There is a spare light
- Supply Ability:
- 1000 Piece/Pieces per Month
- Packaging Details
- One piece build in foam carton
- Port
- HongKong, Shenzhen
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 100 >100 Est. Time(days) 15 To be negotiated
| Description | Parameter |
| Mode | AH-LI-D2 |
| Circuit Protection | Integrated |
| Operation mode | Dusk-to-dawn Automatically as standard |
| Light source | led |
| Light intensity | >32cd(10cd, 100cd or others are optional) |
| Vertical degree | ≥10 |
| Horizontal Degree | 360° |
| Service life of LED | 100,000hours |
| Operating voltage | DC (12V, 48V) or AC (110-240V) |
| Flash Characteristics | Steady/20/30/60fpm adjustable |
| Available Colors | Red |
| Overall Size (mm) | 254 × 210 × 90 |
| Base Material | Die-casting aluminum |
| Weight | 1.5Kg |
| Mounting | 3/4 inch |
| Ambient Temperature (°C) | -40~70 |
| Wind speed | 80m/s |
| Body Material | Polycarbonate |
| Base Material | Die-casting aluminum |

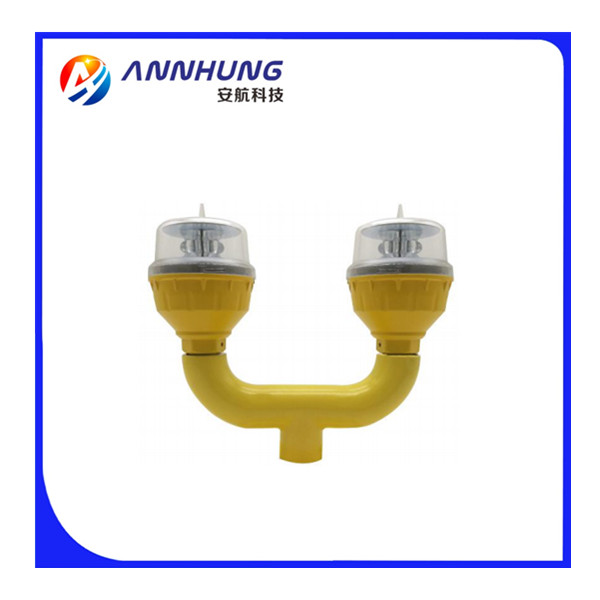

Product imagine:
More product Overview"
Product Advantages

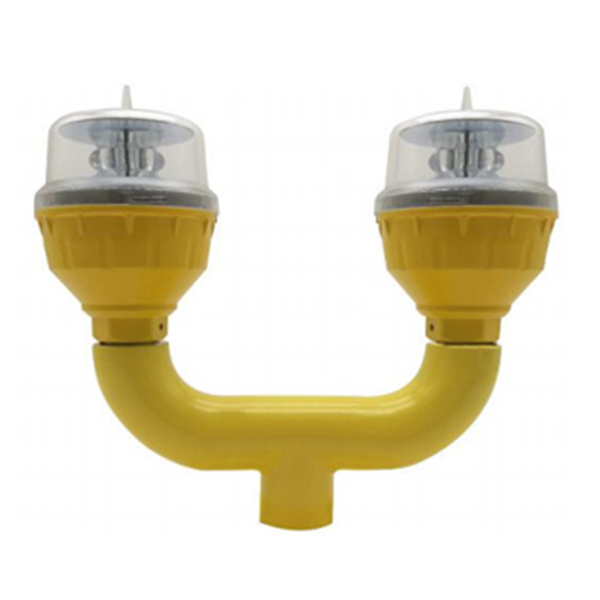

This LED 32cd Double light is a steady burning aviation obstruction light designed for marking top of obstacle that do not exceed 45 meters in height.
Main-standby mode ensure the obstacle is always marked even one light fail.
Compliance
** ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Low Intensity Type A / B / E Obstruction Light
** FAA L-810
Electrical
CREE LED , make sure LED keep bright while use for long time
Power supply in DC ( 48V) & AC (110-240VAC) , the light could work normally when input 48VDC/110VAC/240VAC
Physical
Bird deterrent spike on top
Unique designed PMMA lens for converging light and good transparency
High translucency and anti-UV polycarbonate cover could use 3-5years without yellowing
UV protection Powder coated bright yellow color base make better visibility and also long life in harsh environments()
Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
3/4inch thread hole make pole installation easy
Safety chain connected with base, the PCB won’t fall while installation
No screw fix type - just twist, the cover will be fixed tightly. Which could better meet the projects" requirement .
System design
Built-in photocell for day/night operation(dusk to dawn operation, automatically turn on when background luminance is below 50cd/m2
Steady/20FPM/30FPM/60FPM DIP switches on PCB
Surge and lightning protection
Main-standby mode, when the main light fail, the standby light
automatically switch on to ensure the obstacle is always clearly marked. We try our best to help every customers.
Optional
♣ Alarm contact(Dry contact- NO COM NC) for remote monitoring
♣ Infrared LED for pilot using NVG
