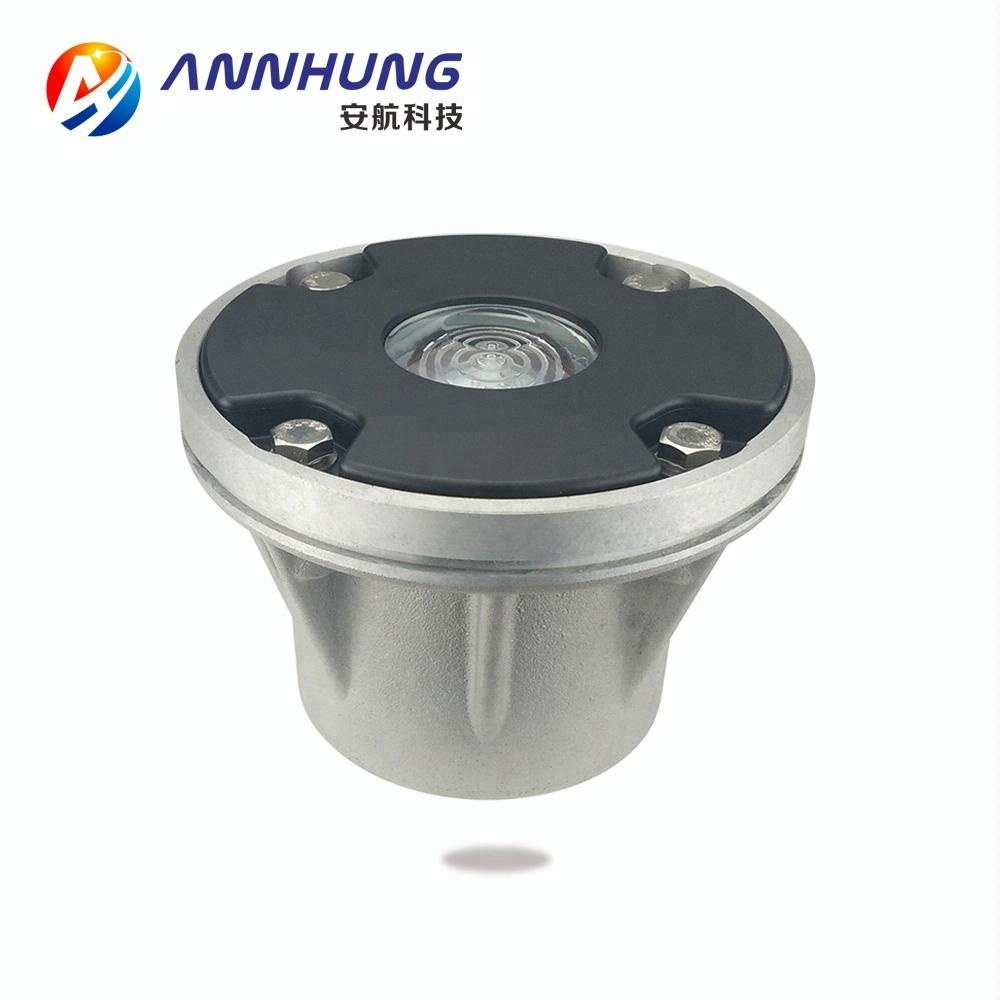

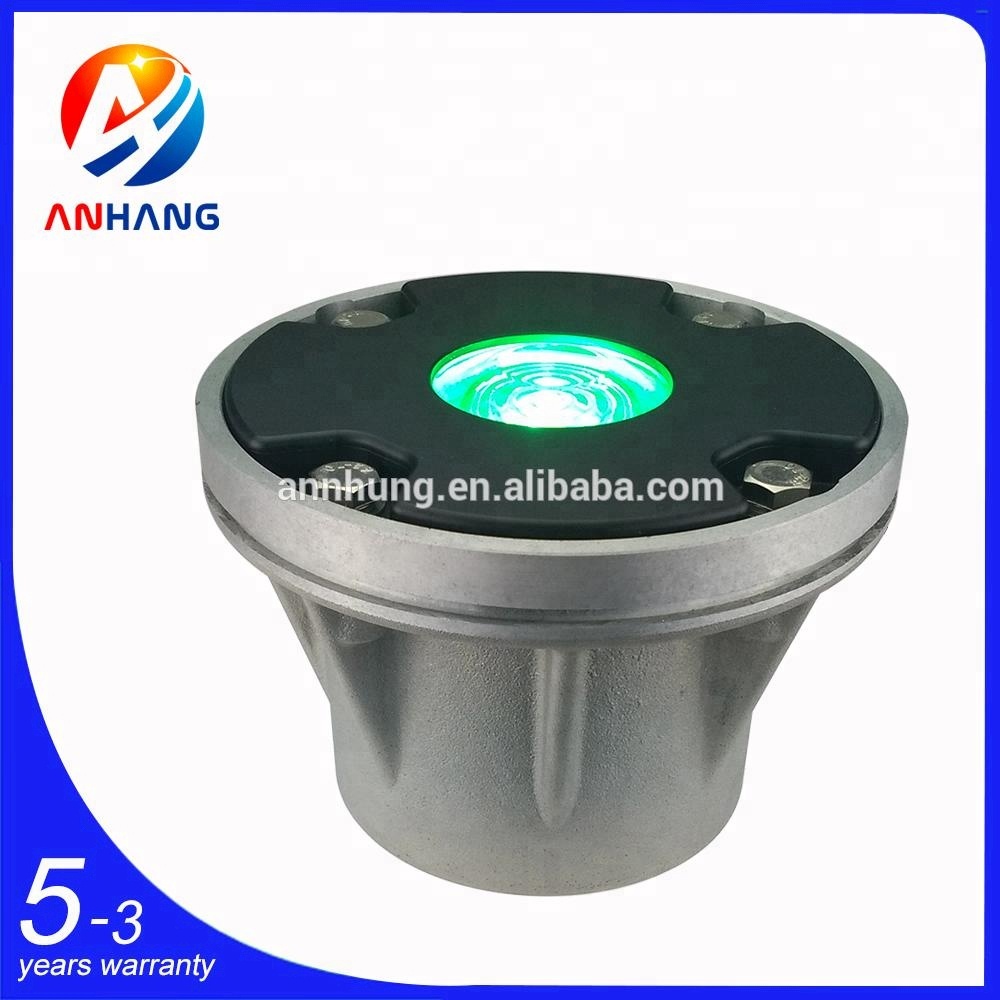

AH-HP/A Inset Type Touchdown and Lift-off Area Light for Heliport Landing
Heliport light
Helipad lighting
Inset Touchdown and Lift-off Area Light
compliant with ICAO,FAA,CAAC
This product is used for shining Omnidirectional white or green or yellow light at night or in the daytime with poor visibility to provide good visibility and circling guidance.
Main Parameter
| Description | Parameter |
| Mode | AH-HP/A |
| Light intensity | ≥ 100cd |
| Light source | LED |
| Service life of LED | 100, 000hours |
| Signal mode | Steady-burning way |
| Operating voltage | AC220V, 50/60 Hz(Option voltage,eg.AC120V,DC48V) |
| Emitting color | White or green or yellow |
| Power consumption | 20W |
| Overall size(mm) | Φ194 × 138 |
| Installation size(mm) | Φ199 × 146 |
| Ambient temperature | -55℃~+70℃ |
| Weight | 4.9kg |
| Protection standard | IP68 |
Compliance
The lights in accordance with ICAO and FAA regulations
