LED Elevated Perimeter Light Heliport Light Helipad Lighting
Heliport Light
Helipad Lighting

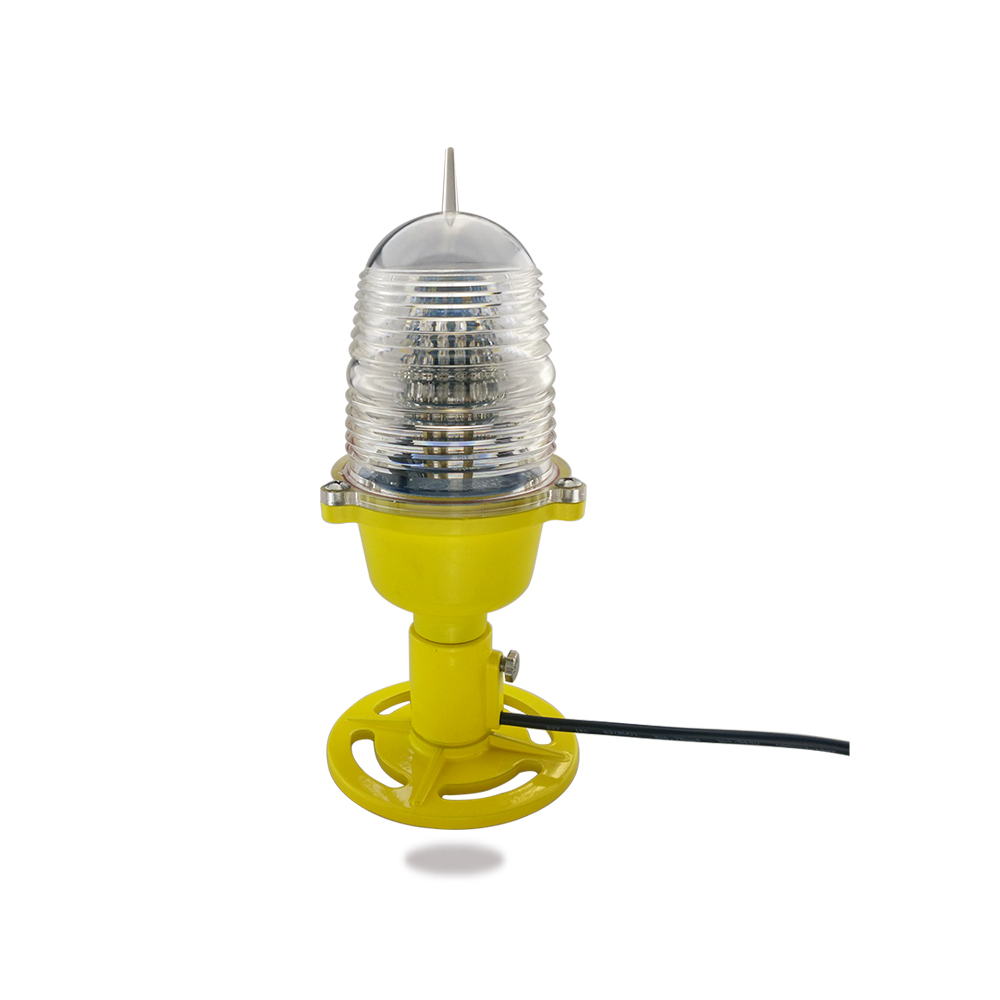

LED Elevated Perimeter Light
compliant with ICAO,FAA,CAAC
This product is used for shining yellow or green light to accurately indicate the threshold of final approach and taking off area.
Description
This product is used in helicopter taking off and landing area at night or in the daytime with poor visibility.
Main Parameter
| Description | Parameter |
| Mode | AH-HP/E |
| Light intensity | ≥25cd |
| Light source | LED |
| Service life of LED | 100, 000hours |
| Signal mode | Steady-burning way |
| Operating voltage | AC220V,50/60 Hz(Option voltage,eg.AC120V,DC48V) |
| Emitting color | Green or yellow |
| Power consumption | 10W |
| Overall size(mm) | Φ136 × 280 |
| Installation size(mm) | Φ93 × Φ12 |
| Ambient temperature | -55℃~+70℃ |
| Weight | 1.4kg |
| Protection standard | IP65 |
| Special part | Frangible part |
Compliance
The lights in accordance with ICAO and FAA regulations and CAP437 (offshore helipads)
Shenzhen Anhang Technology Company Limited is a high technology enterprise engaging in research, production, sales and after -sales services for a wide range of Aviation Obstruction Light,Aircraft Warning Light,Helipad Light, LED Marine Lanterns,LED Bulb and Aircraft Warning Sphere.We are a domestic market leader in the field of navigation lights and a supporter of green and safe emissions. Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory,Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoyage in sea, etc. Website:www.annhung.com www.ahicao.com
