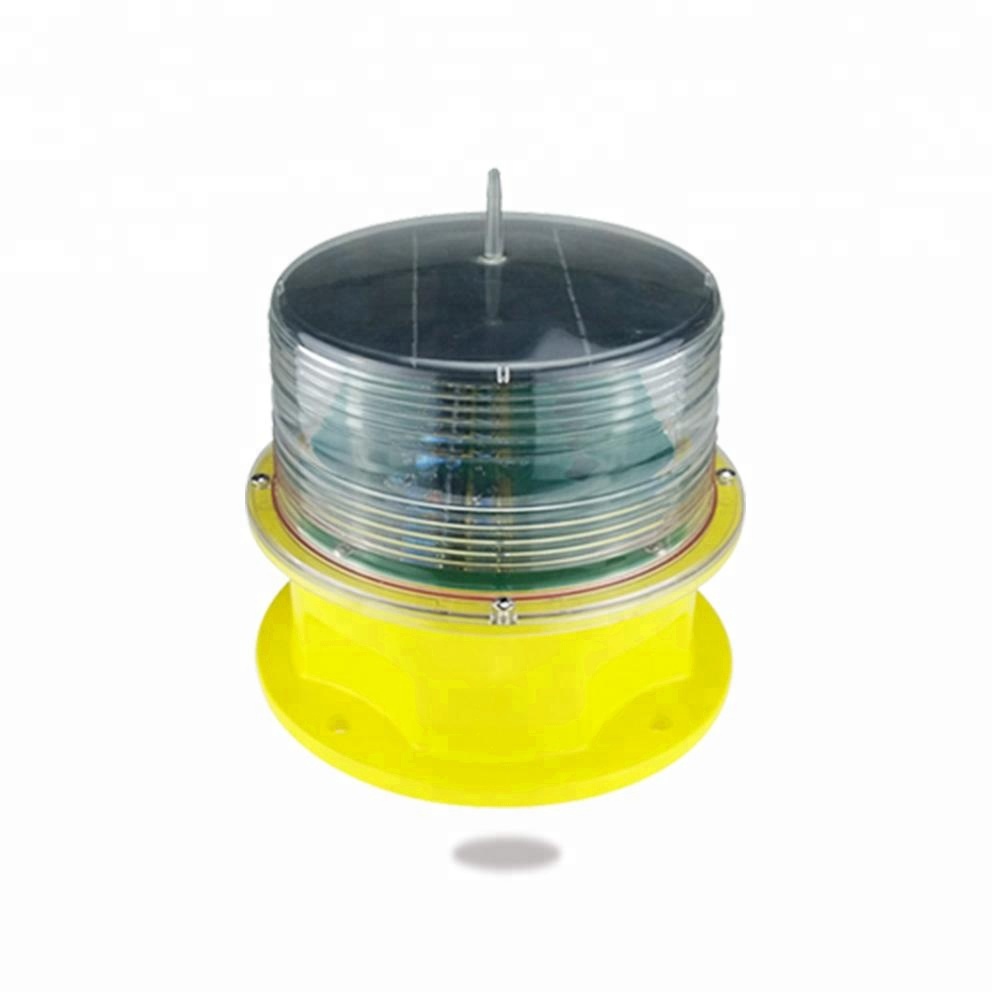

Solar Power Marine Lanterns Light, IALA, Solar marine navigation light, self contained marine lantern,
AH-LS/C-1 navigation light applying to ocean buoy, river buoy, aquaculture, offshore oil platform, port or other fixing and floating aids to naviation.
Advantages
1.Up to 3 Nautical Miles (Tc =0.74)
2.Based on LED technology and its color comply to IALA Recommendations E-200-1.
3.Bird spike against bird drop.
4.Comprehensive protection in short-voltage,over-voltage,floating charge and temperature.
5.International-advanced cold and special LED with low power consumption, high brightness and service life of light source reaching 100000hours.
6.Strong corrosion resistance,Rain and Snow,Shock and Vibrations protection and UV protection.
7.Clean, renewable, green and reliable energy source.
8.Dusk-to-dawn operation: photocell. Light can work at night automatically by photocell.
9.At least 5 days autonomy without sunshine (Option 20days).
10.Recyclable batteries with the lightest environmental.
11.IP68 protection standard, Full sealing structure.
Main Parameter
| Description | Parameter |
| Mode | AH-LS/C-1 |
| Standard | IALA |
| Visible distance | Up to 3 Nautical Miles |
| Working mode | Flashing mode or Steady-burning mode |
| Light source | LED |
| Light intensity | 1cd(1NM),5cd(2NM), 15cd(3NM) |
| Vertical degree | >9° |
| Horizontal Degree | 360° |
| Service life of LED | 100, 000hours |
| Operating voltage | DC6.4V, recyclable batteries with the lightest environmental and long life |
| Battery capacity | 6.4V, 3.1Ah |
| Autonomy | At least 5days (Option 20days) |
| Overall Size (mm) | Φ220 233 |
| Installation Size | Φ190 × M10 |
| Weight | 2.3Kg |
| Emitting Color | Red, Green, Yellow (Amber), Blue or White |
| Ambient Temperature | -55℃~+60℃ |
| Wind load | 80m/s |
| Control Way | photocell. Light can work at night automatically by photocell. |
