Click on the image to view the original image
- Type:
- Aviation Obstruction Lights
- Input Voltage(V):
- 0
- Lamp Power(W):
- 0
- Lamp Luminous Flux(lm):
- 0
- Lamp Luminous Efficiency(lm/w):
- 0
- CRI (Ra):
- 100
- Color Temperature(CCT):
- Other
- Beam Angle(°):
- 360
- IP Rating:
- IP65
- Certification:
- CE, RoHS
- Emitting Color:
- Red
- Lamp Body Material:
- Fiber glass reinforced polyester resin
- Base Type:
- Other
- Light Source:
- Induction Lamps
- Place of Origin:
- Guangdong, China
- Brand Name:
- ANNHUNG
- Products name:
- Aircraft Warning Sphere
- Color:
- Orange, Red or White
- Material:
- Fiber glass
- Weight:
- 6.3
- Diameter:
- 600 mm or customized
- Supply Ability:
- 1000 Piece/Pieces per Month
- Packaging Details
- 3 pcs in one carton
- Port
- HK, Shen zhen

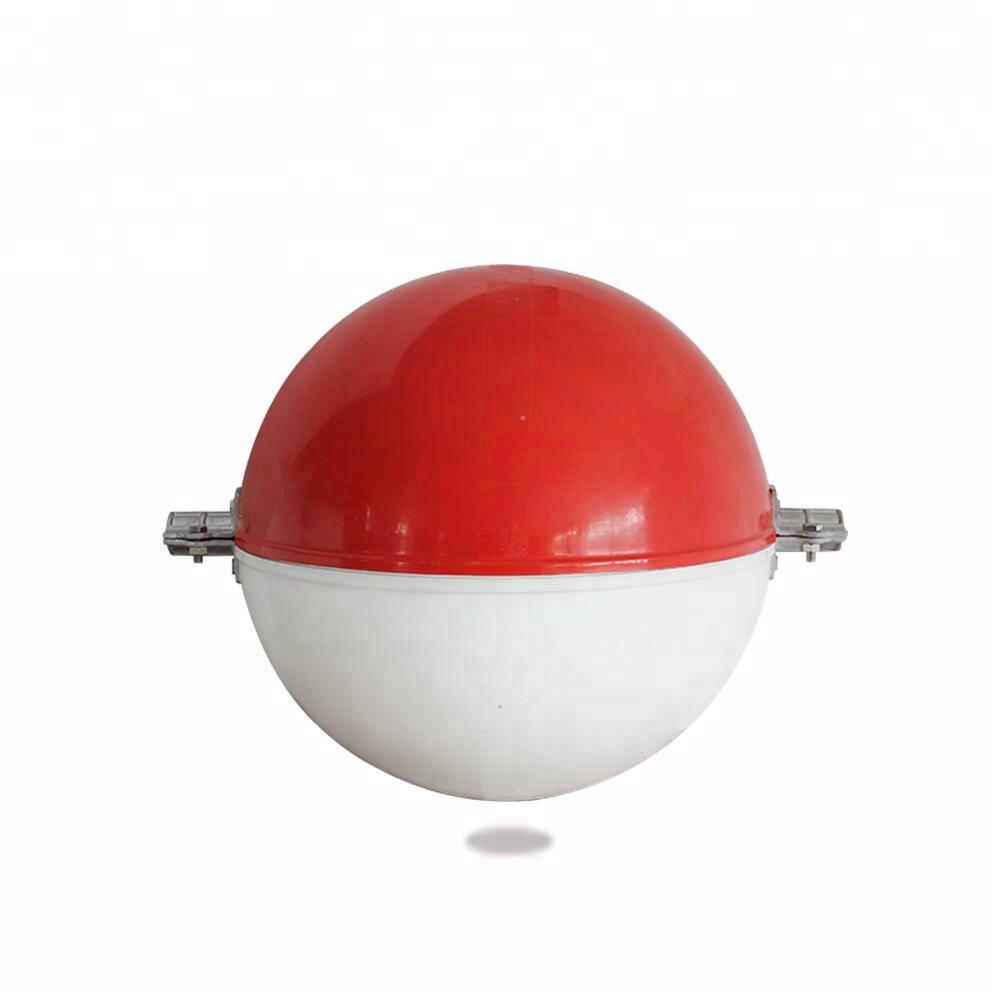

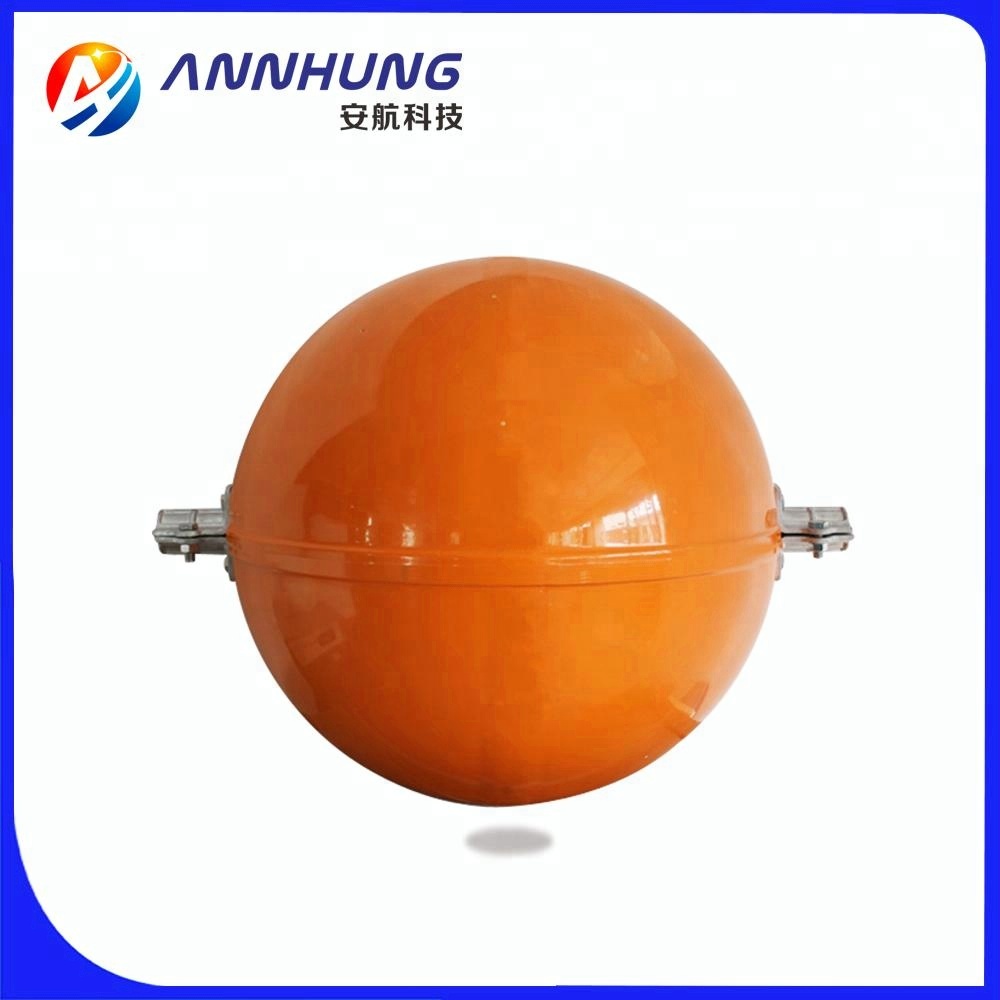

Aircraft Warning Sphere
Aircraft Warning Sphere is Designed to use for high-rise transmission lines, eg. 110KV, 220KV, 500KV, transmission cables, river-crossing transmission lines to provide the warning marks.
Standard | ICAO (Aerodromes Annex 14) |
Diameter | 600mm |
Color | Orange, Red or White |
Material | Fiber glass reinforced polyester resin |
Character of fiber glass | Tensile strength≥128Mpa |
Bending strength≥230Mpa | |
Temperature resistant: 40℃~90℃ | |
Fastener | Aluminum material, M10 by 35, M10 by 40 |
Weight | 6.3KGS |
1.At the mount point on the alerting ball, wrap cable protecting bars round cables for 1000-1200mm long, with two ends of protecting bars extending 200-300mm beyond the surface of the ball.
2.Fix the plastic wires which are mounted on lower hemisphere of the ball onto the cables and twist them.
3.Combine the lower hemisphere with the upper hemisphere according to module codes. Turn the hemisphere during the assembly and make sure two hemispheres are joined into position .
4.Insert stainless steel bolt(M12*35) and then put flat washers and spring washers around each bolt. Tighten each nut at last.
