High Quality Aviation Obstruction Ball Aircraft Warning Sphere Alerting Ball
Click on the image to view the original image
Product： views：4High Quality Aviation Obstruction Ball Aircraft Warning Sphere Alerting Ball
Branch： ANNHUNG
Type： Aviation Obstruction Lights
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:09
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
0
Lamp Power(W):
0
Lamp Luminous Flux(lm):
0
Lamp Luminous Efficiency(lm/w):
0
CRI (Ra):
100
Color Temperature(CCT):
Other
Beam Angle(°):
360
IP Rating:
IP65
Certification:
CE, RoHS
Emitting Color:
Red
Lamp Body Material:
Fiber glass reinforced polyester resin
Base Type:
Other
Light Source:
Induction Lamps
Place of Origin:
Guangdong, China
Brand Name:
ANNHUNG
Products name:
Aircraft Warning Sphere
Color:
Orange, Red or White
Material:
Fiber glass
Weight:
6.3
Diameter:
600 mm or customized
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month High Quality Aviation Obstruction Ball Aircraft Warning Sphere A
Packaging & Delivery
Packaging Details
3 pcs in one carton
Port
HK, Shen zhen
Product Description

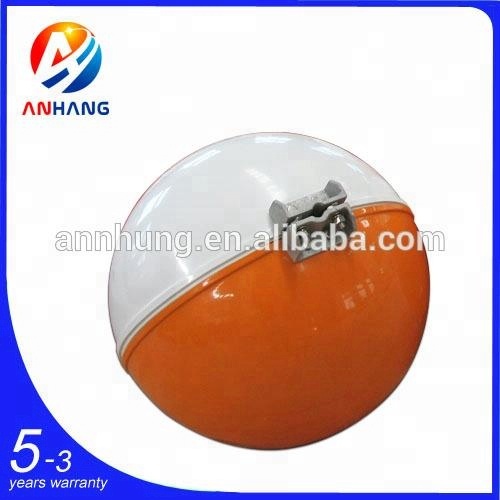

Aircraft Warning Sphere

Aircraft Warning Sphere is Designed to use for high-rise transmission lines, eg. 110KV,  220KV,  500KV, transmission cables, river-crossing transmission lines to provide the warning marks.





Specification

Standard

ICAO (Aerodromes Annex 14)

Diameter

600mm

Color

Orange, Red or White

Material

Fiber glass reinforced polyester resin

Character of fiber glass

Tensile strength≥128Mpa



Bending strength≥230Mpa



Temperature resistant: 40℃~90℃

Fastener

Aluminum material,  M10 by 35, M10 by 40

Weight

6.3KGS

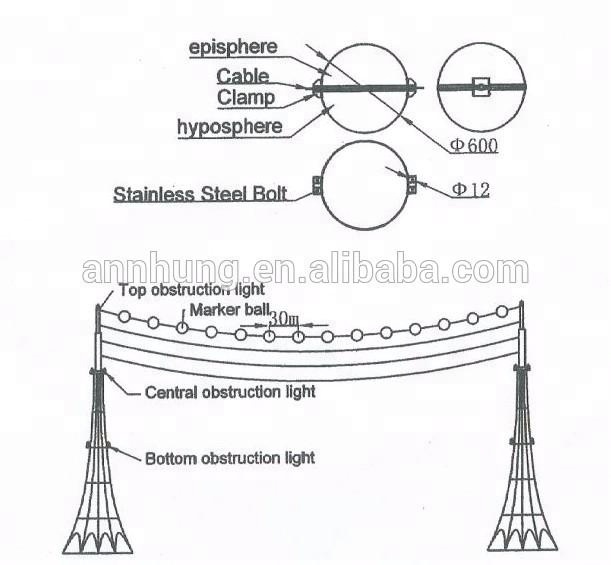

Installation

1.At the mount point on the alerting ball, wrap cable protecting bars round cables for 1000-1200mm long, with two ends of protecting bars extending 200-300mm beyond the surface of the ball.

2.Fix the plastic wires which are mounted on lower hemisphere of the ball onto the cables and twist them.

3.Combine the lower hemisphere with the upper hemisphere according to module codes. Turn the hemisphere during the assembly and make sure two hemispheres are joined into position .

4.Insert stainless steel bolt(M12*35) and then put flat washers and spring washers around each bolt. Tighten each nut at last.
