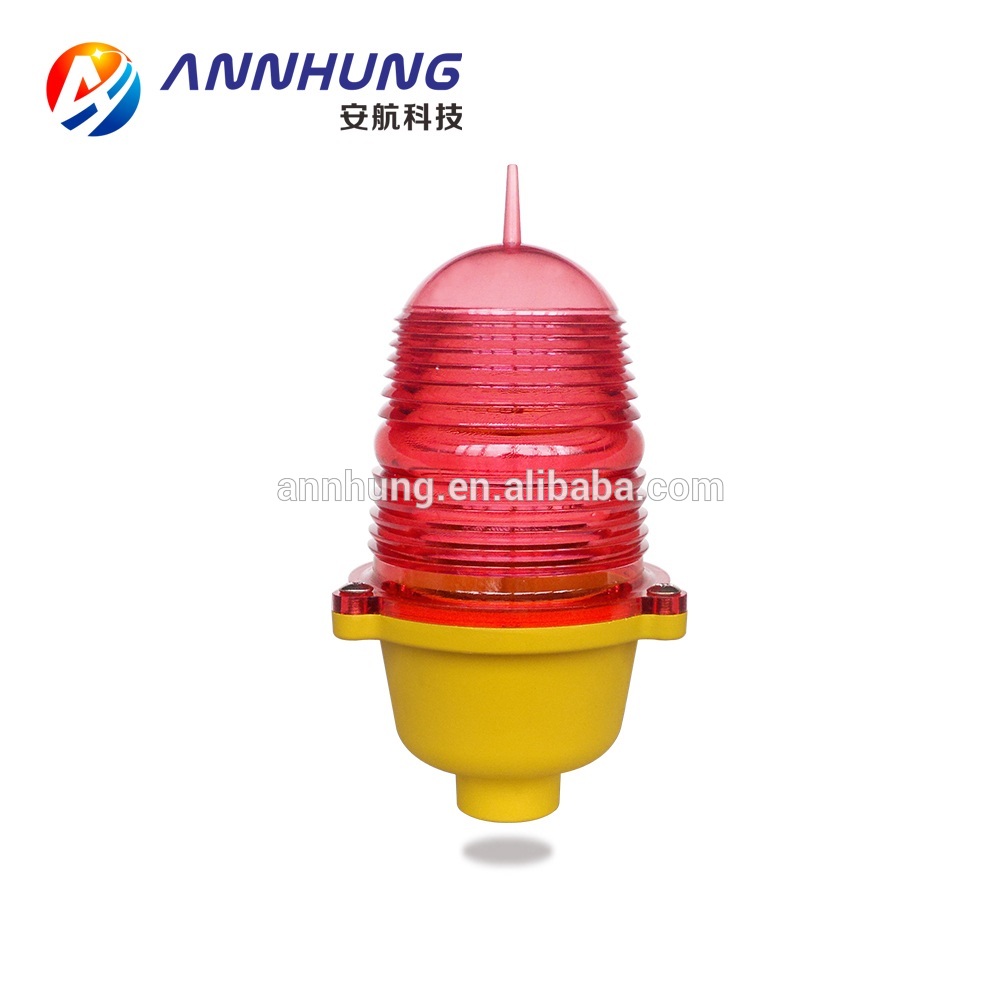

Low-intensity Single Beacon Light within 45 Meters Steady Burning Flashing Red Safety Obstruction Light

Click on the image to view the original image

Product：	views：3Low-intensity Single Beacon Light within 45 Meters Steady Burning Flashing Red Safety Obstruction Light
Branch：	Annhung
Type：	Aviation Obstruction Lights
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:09

Product Details

Overview

Quick Details

Type:: Aviation Obstruction Lights

Input Voltage(V):: AC110-240V, DC12-48V

Lamp Power(W):: 3

Lamp Luminous Flux(lm):: 100%

Lamp Luminous Efficiency(lm/w):: 120

CRI (Ra):: 100

Color Temperature(CCT):: Other

Beam Angle(°):: 360 Horizontal Beam Angle

IP Rating:: IP65

Certification:: RoHS

Emitting Color:: Red

Lamp Body Material:: Aluminum Alloy

Light Source:: LED

Place of Origin:: Guangdong, China

Brand Name:: Annhung

Weight:: 1.0kg

Products name:: Low-intensity L 810 LED Single Aviation Obstruction Light

Light Intensity:: ≥ 32.5cd(Option 10cd,50cd,80cd,100cd)

Working mode:: Steady Burning or Flashing

Overall Size:: 136 by 136 by 220

Supply Ability

Supply Ability:: 1000 Piece/Pieces per Month Low-intensity Single Beacon Light within 45 Meters Steady Burnin

Packaging & Delivery

Packaging Details: 136 by 136 by 220
paper carton 1 piece/box

Port: Shenzhen Port

Packaging & Delivery

Packaging Details: paper carton 1 piece/box

2-10 days

Delivery Detail: Shipped in 2-10 days after payment

Specification

Low-intensity LED Single Aviation Obstruction Light

Single Aviation Obstruction Light

Aviation light

compliant with ICAO,FAA,CAAC HOT SALE! Promotion!

Applications

This series of products can be used alone on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV),High Pole, Tower Crane, Wind Turbine, etc whose height is lower than 45m.When obstacle object is higher than 45m, this series of products can be used with Medium-intensity or high-intensity obstruction light to potentially hazardous obstructions to air traffic with a steady or flashing red safety light.

Product Description

Main Parameter

Description	Parameter
Mode	AH-LI/B
Light intensity	≥ 32.5cd(Option 10cd,50cd,80cd,100cd)
Flash rate	Steady-burning mode or Flashing mode(20-60times/minute)
Light source	LED
Service life of LED	≥ 100,000hours
Operating voltage	AC220V (option voltage,eg.AC120V,AC110V,DC48V)
Power consumption	3W
Overall size(mm)	136 by 136 by 220
Installation size	3/4inch or 1 inch
Vertical degree	≥ 10°
Horizontal degree	360°
Material
Housing	Polycarbonate
Base	die casting aluminum
Weight	1Kg
Emitting color	Aviation red
Ambient temperature	-40℃~+70℃
Wind load	80m/s
Protectionstandard	IP65

Advantages

1.PC material with good impact protection strength, thermal stability, high transmittance.
2.Bird spike against bird drop.
3.International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.
4.LED based on obstruction light last 15 times longer than traditional light source, incandescent light.
5.About 96% less power than 116W incandescent light.
6.Major Maintenance Cost Saving, Surge protection device inside light.
7.Strong corrosion resistance, Shock and Vibrations protection and UV protection.
8.Dawn to Dusk operating: Built-in photocell can let light work automatically at night, closed during the day.
9.3/4inch or 1inch installation size and small volume especially being suitable for telecom and flag-pole installation way.
10.There is one switch converting between Flashing mode and Steady-burning way.
11.Five Years Warranty Period.

Installation Drawing
