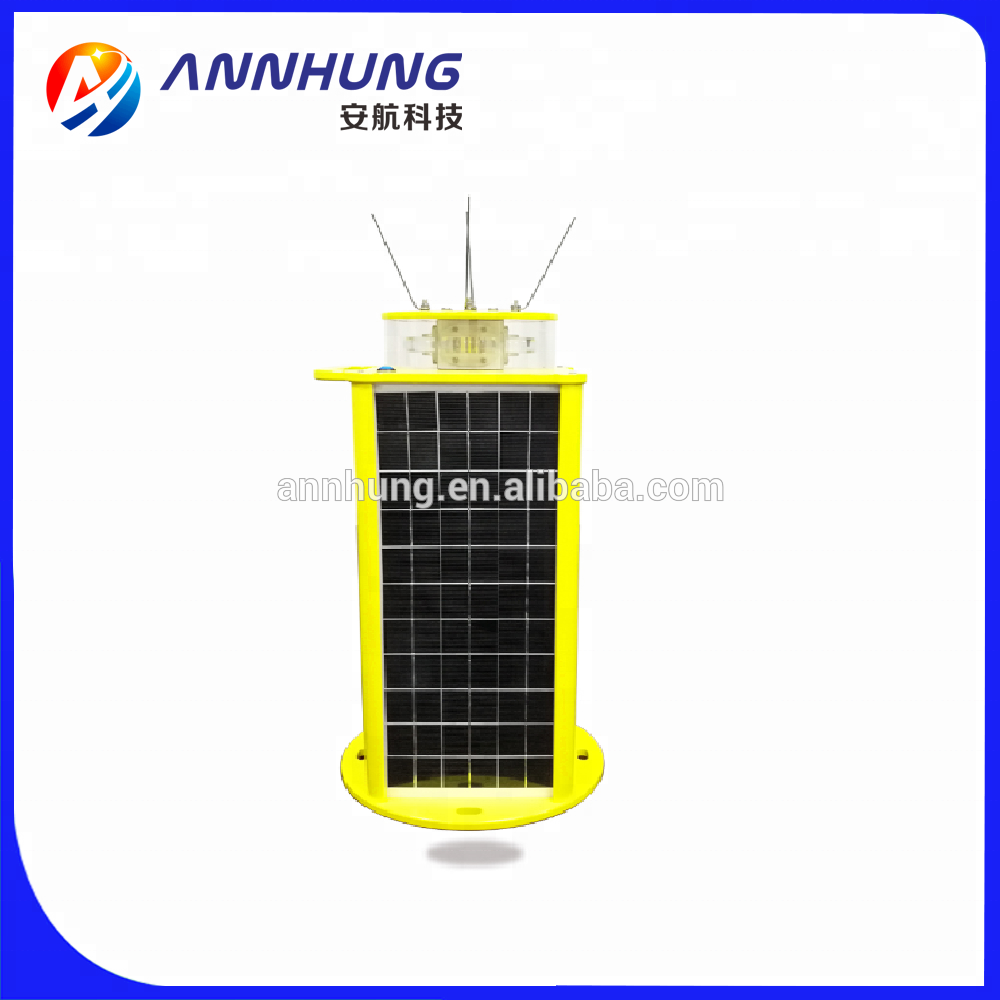

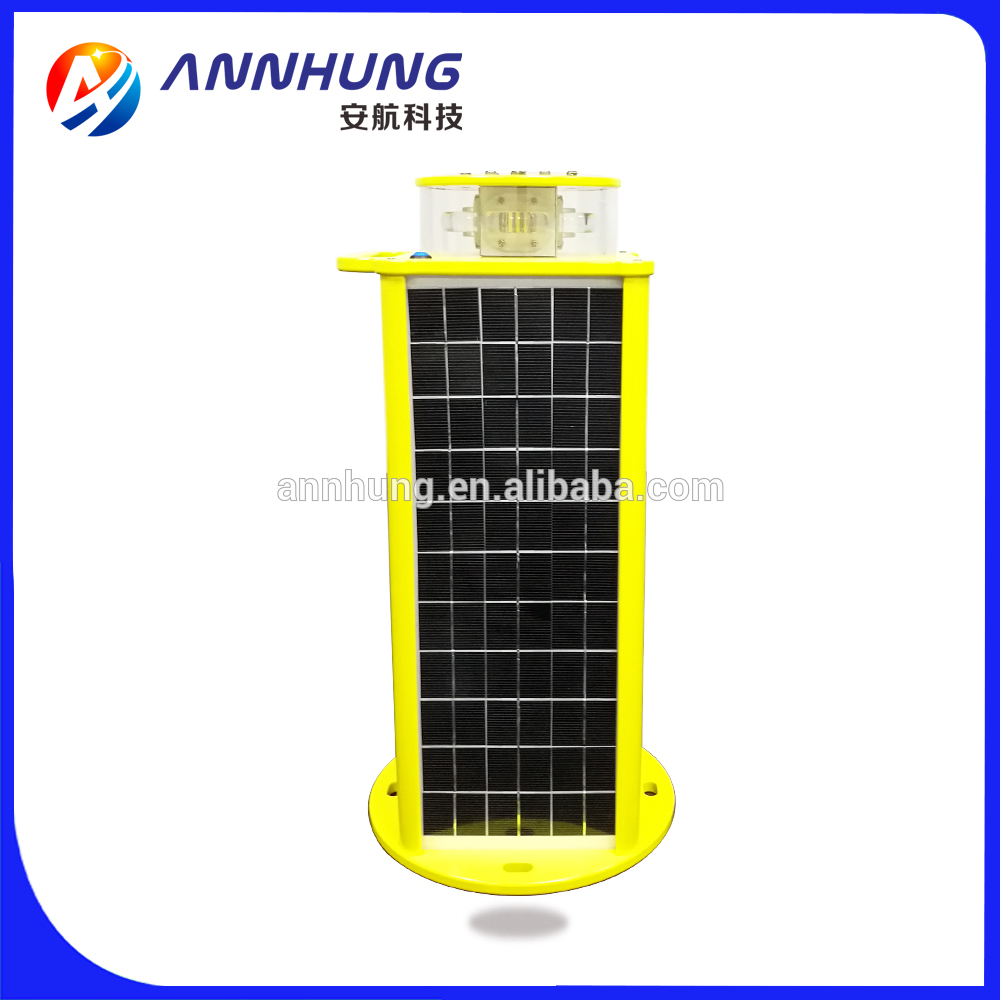

12nm Visual Range Solar Powered Marine Lantern Navigation Light LED Marine Light / Navigation Lantern

Click on the image to view the original image

Product：	views：212nm Visual Range Solar Powered Marine Lantern Navigation Light LED Marine Light / Navigation Lantern
Branch：	ANNHUNG
Type：	Lanterns
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:09

Product Details

Overview

Quick Details

Color Temperature(CCT):: COOL WHITE

IP Rating:: IP68

Input Voltage(V):: DC12V, recyclable batteries

Lamp Luminous Efficiency(lm/w):: 120

Lamp Luminous Flux(lm):: 100

Lamp Power(W):: 40

CRI (Ra):: 100

Place of Origin:: Guangdong, China

Type:: Lanterns

Power Source:: Rechargeable Battery

Battery Type:: Lead Acid

Brand Name:: ANNHUNG

Certification:: ce, RoHS, CE, RoHS

Usage:: Emergency

Light Source:: LED

Overall Size(mm):: 260 by 260 by 580

Ambient Temperature:: -55℃~+80℃

Standard:: IALA

Vertical degree:: > 9°

Emitting Color:: Red, Green, Yellow (Amber), Blue or White

Optional:: Adjustable 256 light characters

Light Intensity:: 15cd (3NM), 35cd (4NM), 75cd (5NM), 150cd (6NM)

Light Source Service Life:: ≥ 100,000hours

Control Way:: photocell. Light can work at night automatically by photocell

Supply Ability

Supply Ability:: 1999 Set/Sets per Month 12nm visual range solar powered marine lanterns|navigation ligh

Packaging & Delivery

Packaging Details: 260 by 260 by 580
General explosion proof carton box

Port: HongKong, Shenzhen

Specification

12nm LED Solar Powered Marine Lanterns

Solar powered marine navigation lantern,

solar marine lantern,

self contained marine lantern, IALA.

FAQ

Sales Executive: Dana Xiong

Tel:+86-755-89589401

Mobile/Whats App:+86-15013635584

Applications

AH-LS/C-12 navigation light applying to ocean buoy, river buoy, aquaculture, offshore oil platform, port or other fixing and floating aids to naviation.

Product Description

l AH-LS/C-12 Solar Marine Lantern is used on buoy, light house and any other off shore site for marine/river safe navigation.

1.Product Name:Marine Lanterns

2.Mode: AH-LS/C-12

3.Standard: IALA

4.Visible Distance : up to 12 Nautical Miles

5.Working Mode : Flashing mode or Steady-burning mode

6.Light source: LED

7.Service life of LED: ≥100,000hours

8.Operating voltage: DC12V, recyclable batteries with the lightest environmental and long life.

9.Autonomy: At least 5days (Option 20days)

10.Emitting color:Red, Green, Yellow (Amber), Blue or White

11.Light character:Adjustable 256 light characters

12.Control Way: photocell. Light can work at night automatically by photocell.

Electrical

l Based on LED technology, and its color complies to IALA Recommendations E-200-1.

l LED technology reduces maintenance time & costs

Physical

l PC housing,UV resistance, shockproof and corrosion proof.

l Bird deterrent spike

l Powder coated die casting aluminum base

l 4-side monocrystalline silicon solar panel, conversion efficiency is betther than polycrystalline silicon

l ON/OFF button interface

System design

l Solar panel as photocell for day/night operation(dusk to dawn)

l Equipted with rotary switches for adjust 256 kinds of flashing rate comply with IALA

Optional

l User-adjustable operation mode to toggle between dusk-till-dawn & 24hr operation

l External charger

l Wireless remote control

l Bluetooth remote control

l Infrared remote control

l GSM Monitoring
