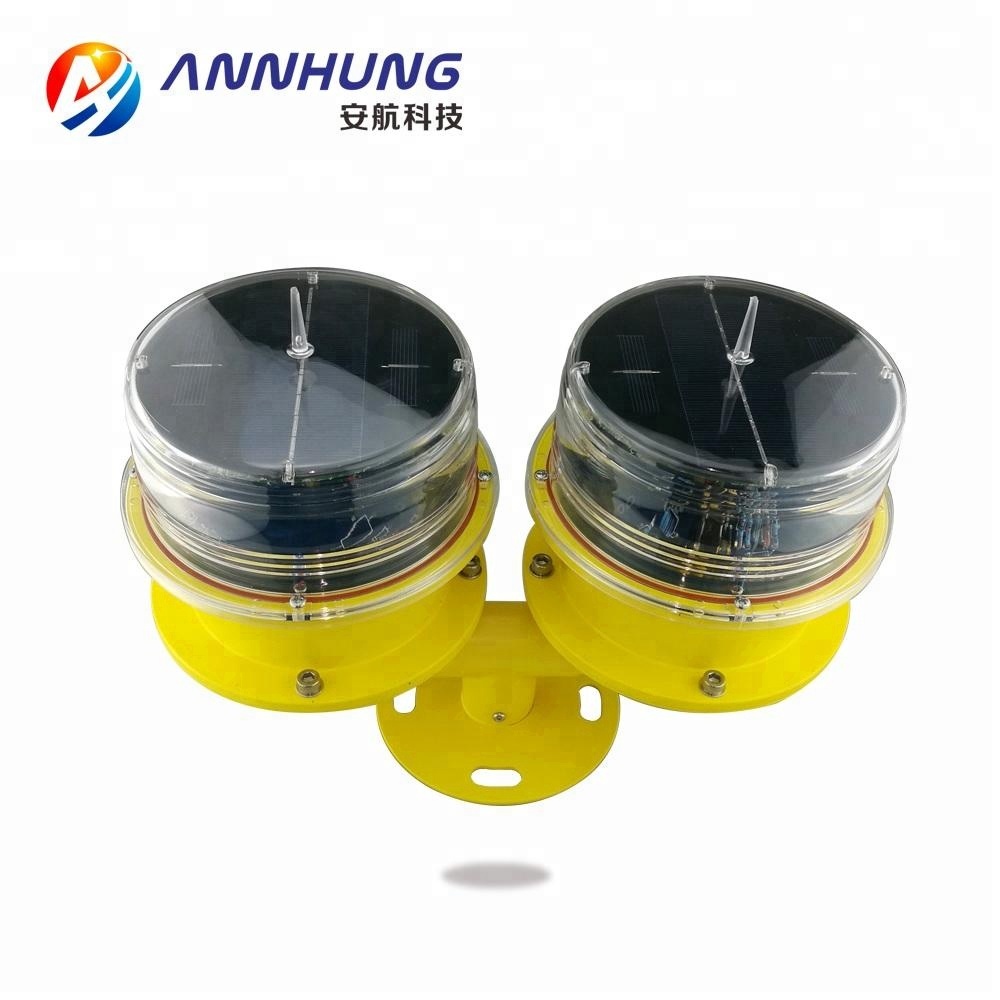

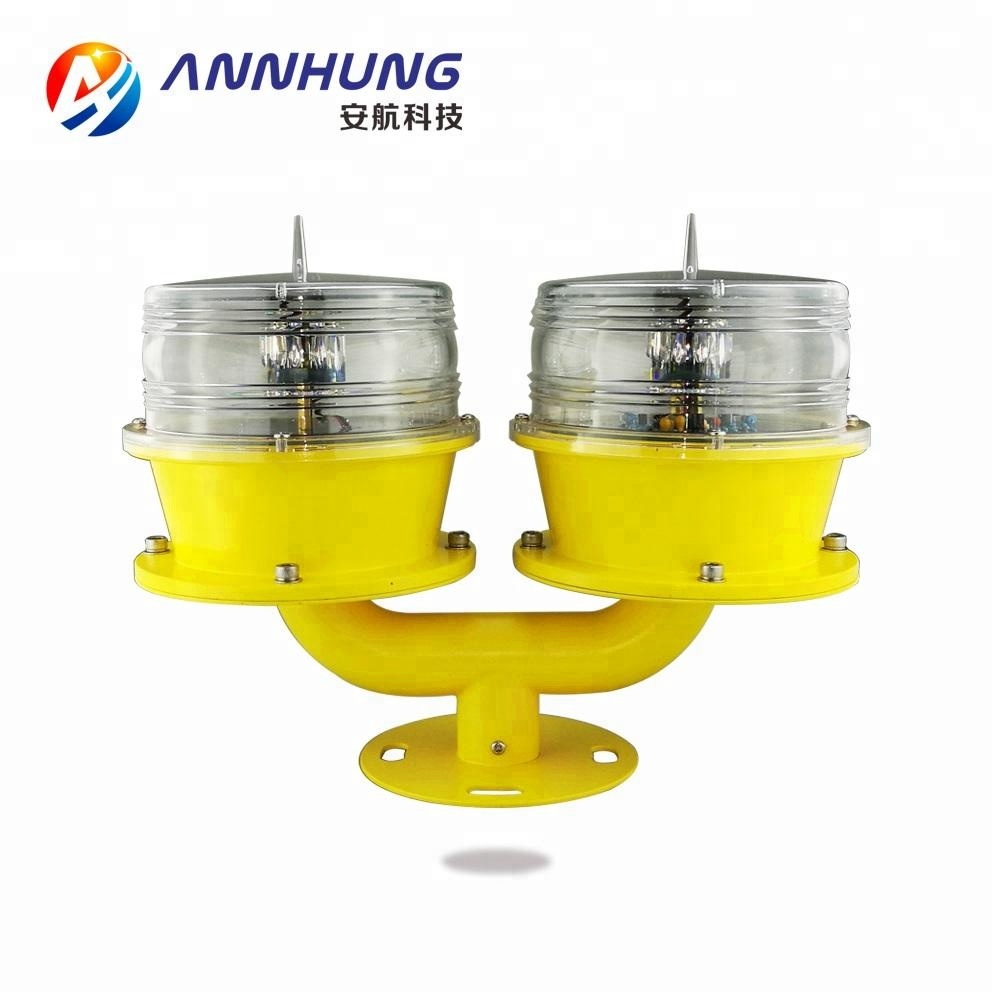

Twin Solar Aviation Obstruction Light for Electric Tower High Chimney Marking Towers High Pole Tower Crane

Click on the image to view the original image

Product：	views：3Twin Solar Aviation Obstruction Light for Electric Tower High Chimney Marking Towers High Pole Tower Crane
Branch：	Annhung
Type：	Aviation Obstruction Lights
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:09

Product Details

Overview

Quick Details

Type:: Aviation Obstruction Lights

Input Voltage(V):: DC 6.4V (Solar powered Way)

Lamp Power(W):: 3

Lamp Luminous Flux(lm):: Red 10-32

Lamp Luminous Efficiency(lm/w):: 120

CRI (Ra):: 100

Color Temperature(CCT):: Pure White

Beam Angle(°):: 360 Horizontal Beam Angle, 360 Horizontal Beam Angle

IP Rating:: IP65

Certification:: RoHS

Emitting Color:: White

Lamp Body Material:: Aluminum Alloy

Base Type:: Other

Light Source:: LED

Place of Origin:: Guangdong, China

Brand Name:: Annhung

Products name:: Low-intensity Dual Aviation Obstruction Light

Color:: Red

Weight:: 3KG

Working mode:: Steady-burning mode or Flashing mode(20-60times/minute)

Overall Size(mm):: 330 by 158 by 340

Light Intensity:: ≥ 10cd(Steady-burning); ≥32.5cd(Flashing mode)

Service life of light source:: 100,000 hours

International standard:: ICAO,FAA,CAAC

Autonomy(without sunlight):: More than 5 days(Option 15days)

Supply Ability

Supply Ability:: 3000 Piece/Pieces per Month AH-LS/T Twin Solar Aviation Obstruction Light suitable for Elect

Packaging & Delivery

Packaging Details: paper carton 1 piece/box
330 x 158 x 340

Port: Shenzhen Port

Packaging & Delivery

Packaging Details: paper carton 1 piece/box

3-15 days

Delivery Detail: Shipped in 15 days after payment

Specification

Low-intensity Solar Powered Dual Aviation Obstruction Light

Aviation Obstruction Light

Aviation Double Light

Obstruction Light

Aviation Warning Light

compliant with ICAO,FAA,CAAC

Applications

Scope of Application

AH-LS/T Low-intensity Double Solar-Powered Aviation Light can be provided with power supply without power transmission cables by solar power, so it is suitable for those locations, Electric Tower, High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc especially which are hard to lay the cable or lack of power supply as well as those facilities which have high requirements on lightning protection.

Product Description

Main Parameter

Description	Parameter
Mode	AH-LS/T
Light intensity	≥ 10cd(Steady-burning); ≥32.5cd(Flashing mode)
Working mode	Steady-burning mode or Flashing mode(20-60times/minute)
Light source	LED,100,000hours service life
Working way of two lights	Two light flashing by Main-standby way, two lights flashing at the same or two lights flashing 1.5 second interval. (Flash mode, three ways) Two light working by Main-standby way, two lights working at the same time. (Steady-burning way, two ways)
Operating voltage	DC 6.4V (Solar powered Way),recyclable batteries with the lightest environmental and long life.
Material
Housing	PC
Base	SUS304 stainless steel
Autonomy(without sunlight)	at least 5 days(Option 15days)
Power Consumption	3W
Overall Size(mm)	330 by 158 by 340
Installation Size(mm)	3/4inch or 100 by 100 by 12
Weight	3Kg
Emitting Color	Red
Ambient Temperature	-40℃~+60℃
Wind load	80m/s
Protection Standard	IP65

Installation Drawing
