Specification

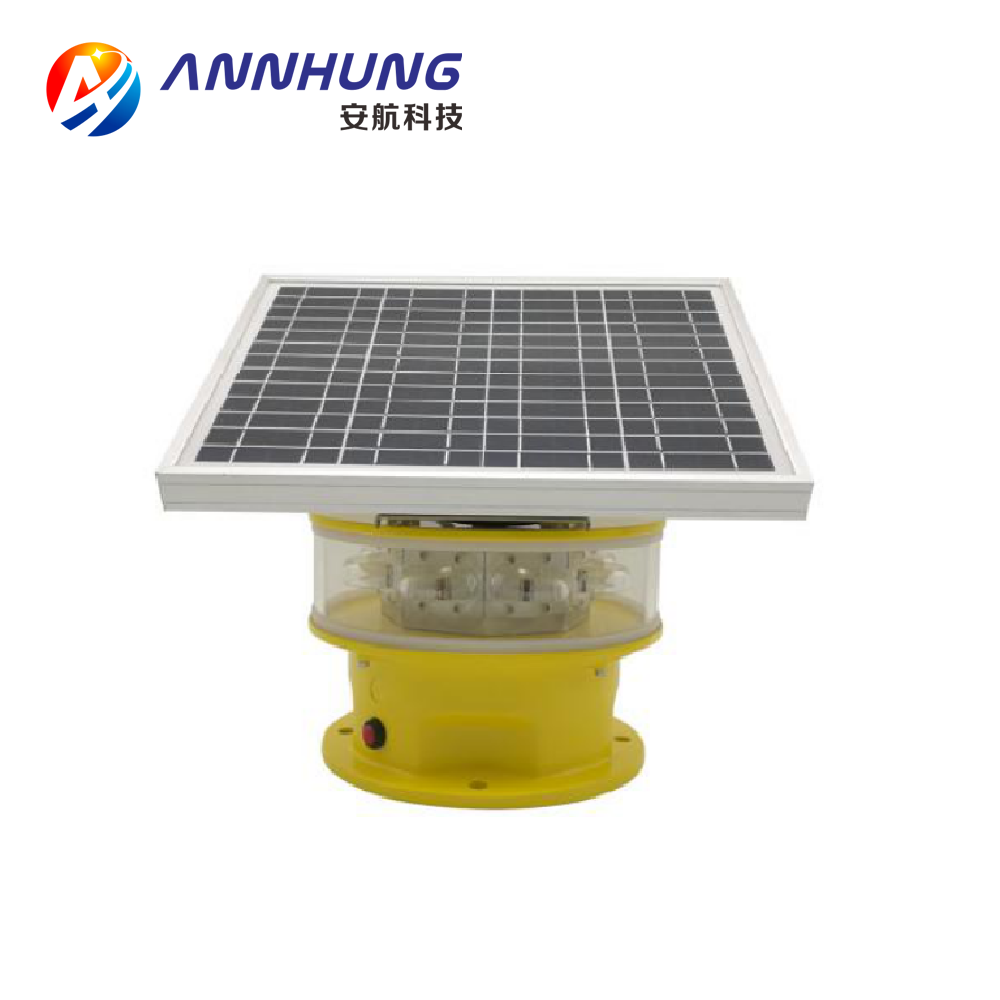

Medium-intensity Type B L864 Solar Aviation Obstruction Light
Aviation light
Solar Aviation Light
Aviation Obstruction light HOT SALE! Promotion!
Applications
This Medium-intensity Type B Aviation Obstruction Light flashing RED color, designed for marking top of obstacle which height is between 45 to 105 meters.
CREE Ultra high intensity LED is used as light source which make performance better, and solar panel vertical degree is adjustable(30°) for get as much as sunlight in different area.
Product Description
SPECIFICATIONS | AH-MI/B-2 Medium-intensity Type B L864 Solar Aviation Obstruction Light |
Light Characteristics |
|
Light Source | Ultra high intensity CREE LED |
Emitting Color | Red |
Intensity(cd) | 2000cd±25%(Night) |
Horizontal Output(degrees) | 360 |
Vertical Divergence(degrees) | ≥3 |
Flash Characteristics | Flashing 20-60FPM |
Operation Mode | Dusk-to-Dawn operation(Solar panel as photocell) |
LED Life Experience(hours) | >100,000 |
Electrical Characteristics |
|
Operating Voltage(Vdc) | 12 |
Circuit Protection | Integrated |
Solar Characteristics |
|
Solar Module Type | Mono crystalline Silicon |
Output(watts) | 18W |
Charging Regulation | Microprocessor controlled |
Battery Characteristics |
|
Battery type | Lithium ion battery |
Nominal Voltage (V) | 12 |
Battery Service Life | Average 3 years |
Autonomy (hours) | 120 |
Physical Characteristics |
|
Lamb Body Material | UV protected Polycarbonate |
Base Material | Die casting aluminum |

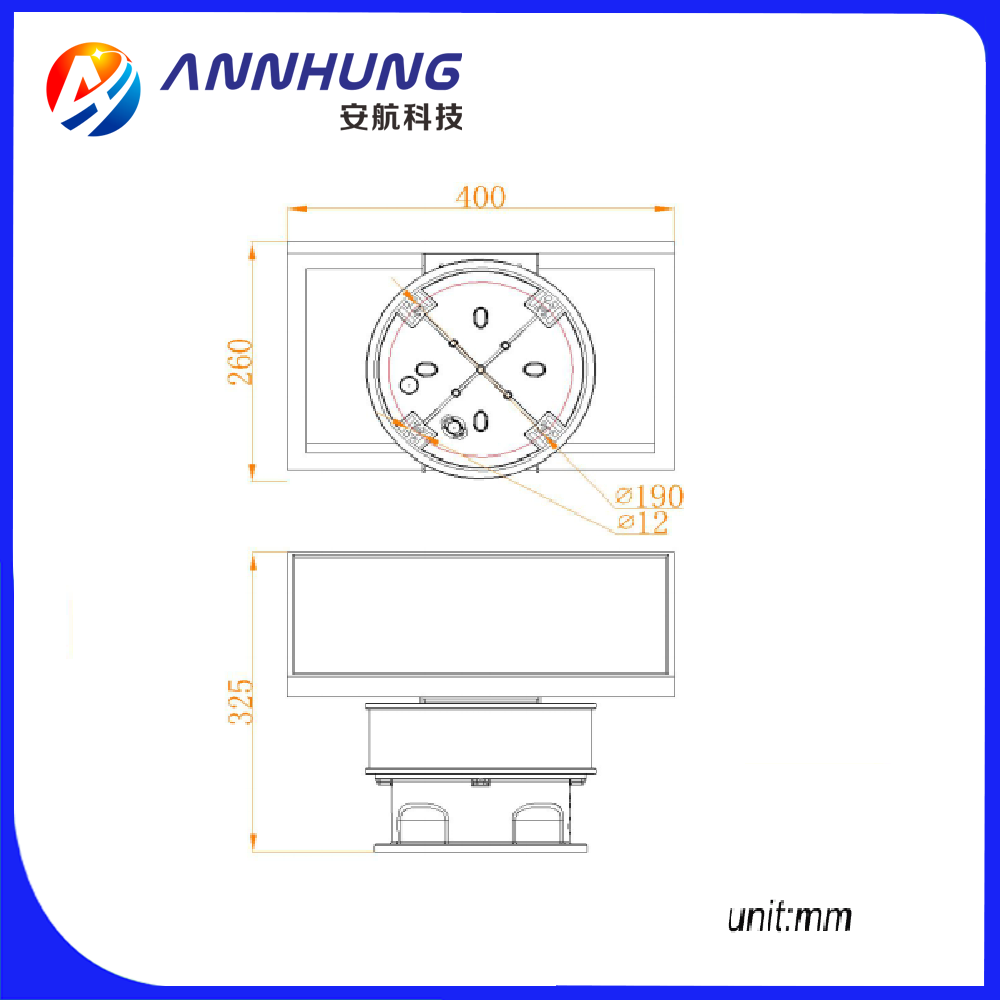

Installation Size | 190×190×M10 |
Overall Size (mm) | 400×260×325 550 |
Weight(kg) | 7 |
Product Life Expectancy | Average 3 years |
Environmental Factors |
|
Ambient Temperature(℃) -55℃~+70℃ | -35~80 |
Humidity | 0~95% |
Wind Speed | 80m/s |
Waterproof | IP65 |
Compliance |
|
ICAO | Annex 14 Volume 1,"Aerodrome Design and |
| Operations’ Sixth edition July 2013, table 6.3 |
| Medium-intensity Type A Obstacle Light |
FAA | L-864 |
Optional |
|
| GPS Synchronization
|
| GSM cellphone monitoring
|
| NVG - compatible infrared (IR) LED
|
Function
l AH-MI/B-2 solar medium-intensity light is specialized used on the top of the High Chimney, Telecommunication tower, Wind Turbine where there is no cable power supply and those facilities which have high requirements on lightning protection, and most time work with low intensity lights light installed on the lower place.
Advantages
1.International advanced solar panel reaching at least 10 years service life.
2. Comprehensive protection in voltage short, over-voltage, floating charge and temperature.
3.Built-in Solar Panel.
4. Strong corrosion resistance, Rain and Snow, Shock and Vibrations protection and UV protection.
5. International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.
6. Clean, renewable, green and reliable energy source.
7. Dusk-to-dawn operation: Built-in photocell inside light can let light work at night and close during the day automatically.
8. At least 5 days autonomy.
9. Recyclable batteries with the lightest environmental.
10. Small volume especially being suitable for Telecom Tower and Electric installation way.
Compliance
l ICAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 Medium Intensity Type B Obstruction Light
FAA L-864
