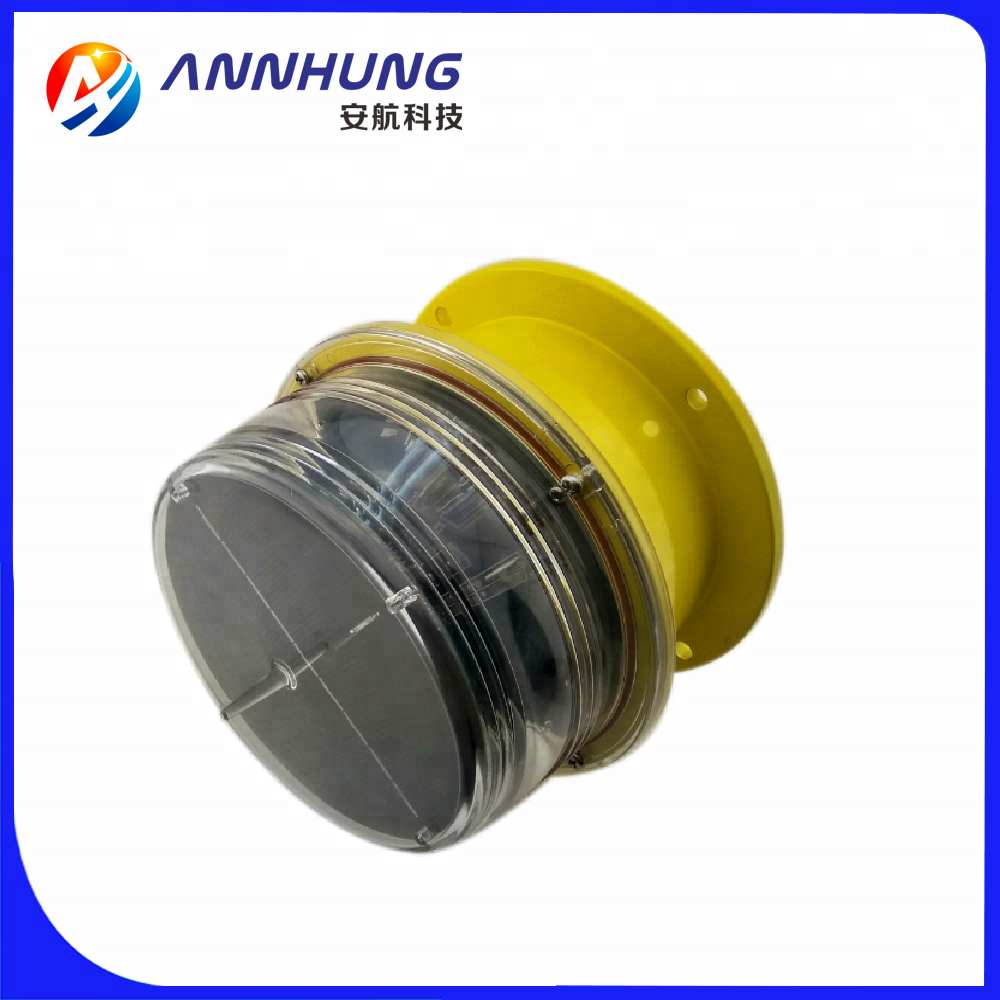

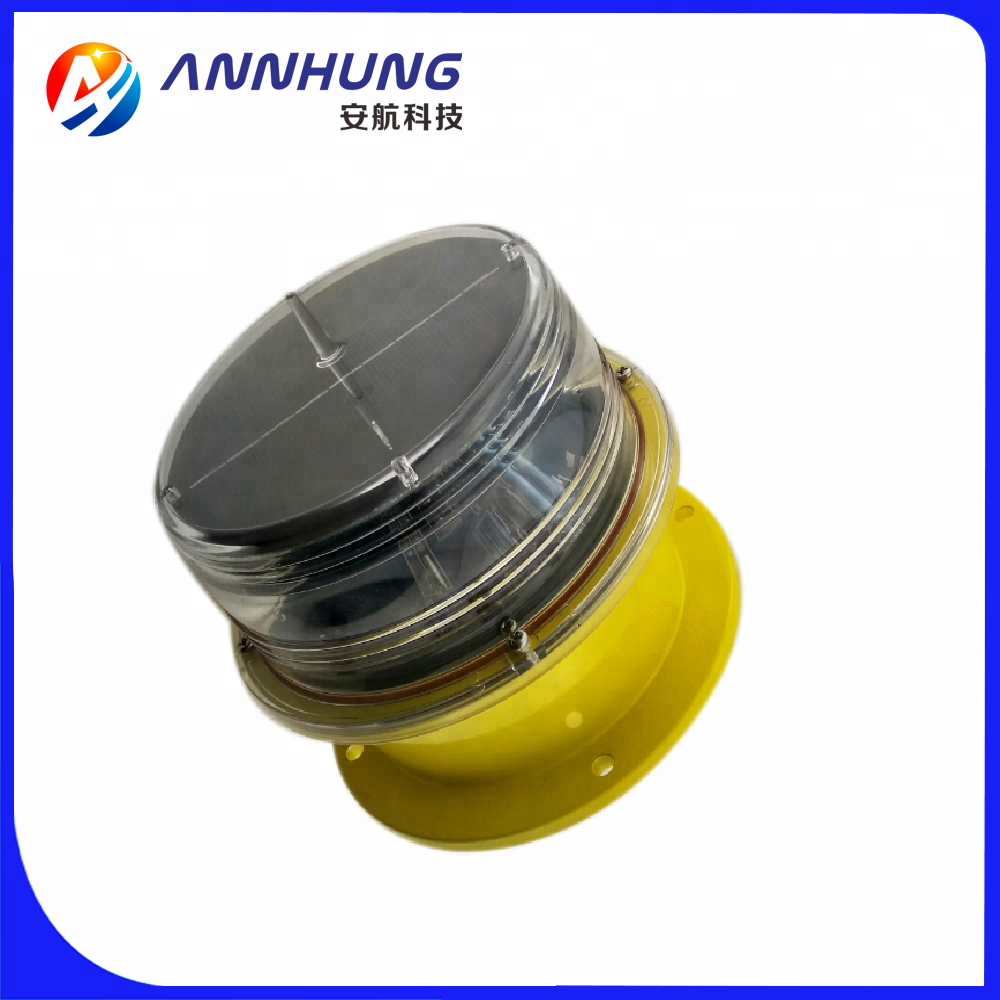

Solar Airfield Light Portable Airport Heliport Solar System
Packaging & Delivery
Packaging Details: paper carton 1 piece/box
Delivery Detail: Shipped in 7 days after payment
Specification
Airfield light HOT SALE! Promotion!HOT SALE! Promotion!
Solar Heliport Landing Light
Solar Airport Light
Applications
AH-SA/B Solar Airfield Light is specially used on permanent airport/heliport where cable power is not convenient or temporary helipad. Light weight make it very easy for user to take and move the AH-SA/B.
Product Description
SPECIFICATIONS | AH-SA/B Solar Airfield Light |
Light Characteristics |
|
Light Source | LED |
Available Colors | Red, Green, Yellow, White, Blue |
Intensity(cd) | 20cd(Steady), 35cd(Flashing) |
Horizontal Output(degrees) | 360 |
Vertical Divergence(degrees) | ≥10 |
Flash Characteristics | Steady(Flashing mode is optional) |
Operation Mode | 24hours working after switched ON |
LED Life Experience(hours) | >100,000 |
Electrical Characteristics |
|
Operating Voltage | 3.7 |
Circuit Protection | Integrated |
Solar Characteristics |
|
Solar Module Type | Mono crystalline Silicon |
Output(watts) | 1.8 |
Charging Regulation | Microprocessor controlled |
Battery Characteristics |
|
Battery type | Lithium ion battery |
Nominal Voltage (V) | 3.7 |
Battery Service Life | Average 3 years |
Autonomy (hours) | Steady: 50, Flashing: 120 |
Physical Characteristics |
|
Lamb Body Material | Aluminum Alloy |
Base Material | Powder-coated Die-casting aluminum |
Installation Size | 140×140×M6 |
Overall Size (mm) | 162×162×160 |
Weight(kg) | 1 |
Product Life Expectancy | Average 5 years |
Environmental Factors |
|
Ambient Temperature(℃) -55℃~+70℃ | -55~70 |
Humidity | 0~100% |
Wind Speed | 80m/s |
Waterproof | IP68 |
Compliance |
|
ICAO | Annex 14 Volume II Heliports 5.3.
|
FAA | AC 150/5390-2B Heliport Design Guide |
Optional |
|
| Wireless remote control |
| External battery charger |
| NVG - compatible infrared (IR) LED |
| Carry case for batch of lights |
| Switch for dusk-till-dawn & 24hr operation |
Function
AH-SA/B Solar Airfield Light has one photocell. It can work alone automatically at night by photocell when ambient brightness is lower than 500cd/m2 and close during the day.
Advantages
1.International advanced solar panel reaching at least 10 years service life.
2. Comprehensive protection in voltage short, over-voltage, floating charge and temperature.
3.Built-in Solar Panel.
4. Strong corrosion resistance, Rain and Snow, Shock and Vibrations protection and UV protection.
5. International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.
6. Clean, renewable, green and reliable energy source.
7. Dusk-to-dawn operation: Built-in photocell inside light can let light work at night and close during the day automatically.
8. At least 5 days autonomy.
9. Recyclable batteries with the lightest environmental.
10. Small volume especially being suitable for heliport portable using.
Compliance
l ICAO Annex 14 Volume II Heliports 5.3.
l FAA AC 150/5390-2B Heliport Design Guide
l CAP 437
