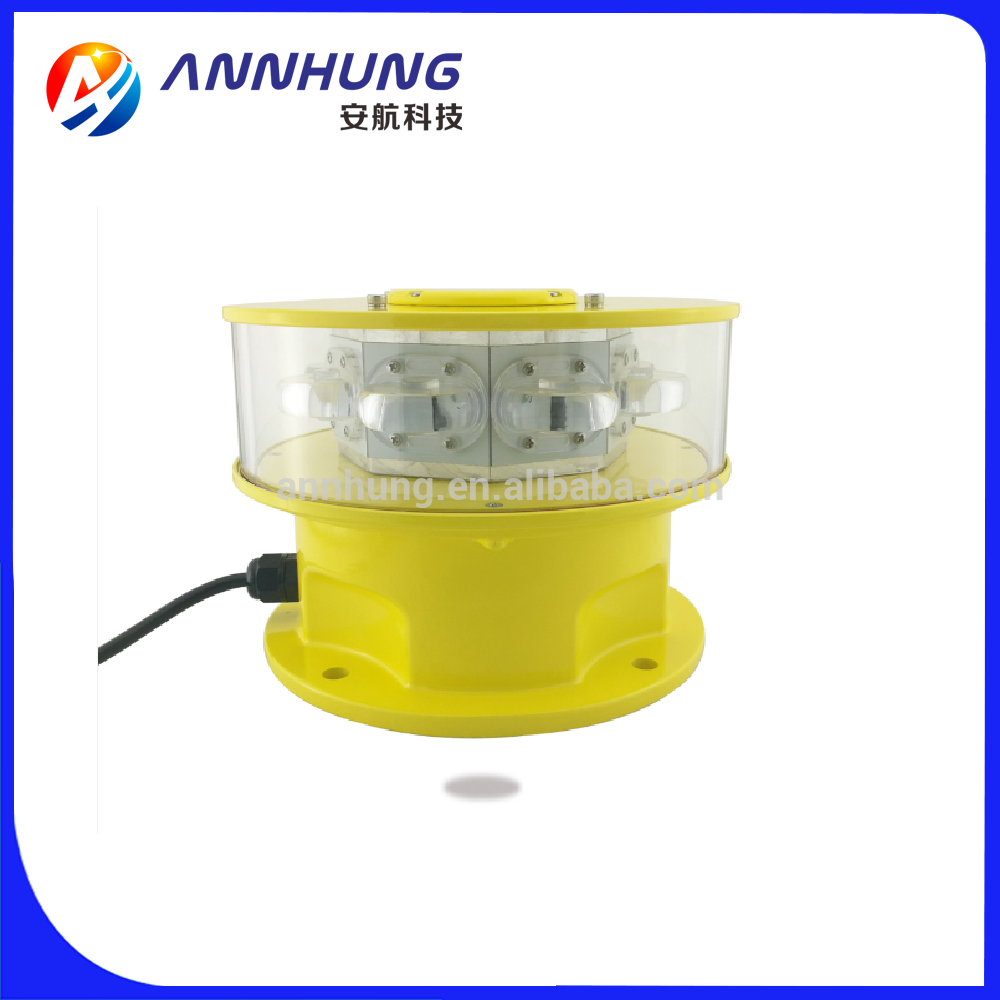

Hot Sale LED ICAO Standard Obstruction Light Medium-intensity Aircraft Warning Light
This Medium-intensity Type B Aviation Obstruction Light flashing red color, designed for marking top of obstacle which height is between 45 to 105 meters.
Ultra high intensity CREE LED is used for the light source ensure the long life experience and good performance. Self-designed lens converging light to very small vertical divergence 3° make it totally compliance with ICAO standard.
1.Product Name: Aviation Obstruction Light
2.Mode: AH-MI/B-1
3.Standard: ICAO (Aerodromes Annex 14) , FAA L-864
4.Light intensity: 2,000cd
5.Working Mode : Flashing mode, 20-60 flashes per minute
6.Light source: CREE high intensity LED
7.Service life of LED: ≥100,000hours
8.Operating voltage: DC(12-48VDC) or AC(110-240VAC)
9.Material:
-Housing: High borosilicate glass
-Base: die casting aluminum
10. Product Life Expectancy: 5 years Plus
Compliance
l ICAO Annex 14 Volume 1,"Aerodrome Design and Operations’ Forth edition July 2004,table6.3
l FAA L-864
Product Application
- AH-MI/B-1 medium-intensity light is used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the obstacle height is 105-150meter, and most time work with low intensity lights & medium intensity type B light installed on the lower place.
Packaging: Paper carton 1-9 piece/box.
Delivery: In 2-10 days after payment.
Anhang Technology (HK) Company Limited is a high technology enterprise engaging in research, production, sales and after -sales services for a wide range of Aviation Obstruction Light,Aircraft Warning Light,Helipad Light, LED Marine Lanterns,LED Bulb and Aircraft Warning Sphere.We are a domestic market leader in the field of navigation lights and a supporter of green and safe emissions. Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory,Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoyage in sea, etc.
All our products are designed and manufactured strictly according to ICAO (International Civil Aviation Organization), FAA (Federal Aviation Administration) and IALA(International Association of Lighthouse Authorities). We are proud to have served customers from all across the world.
After-sales service
1. 2 years full warranty, 5 years maintenance since the purchasing date.
2.Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.
3.Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.
