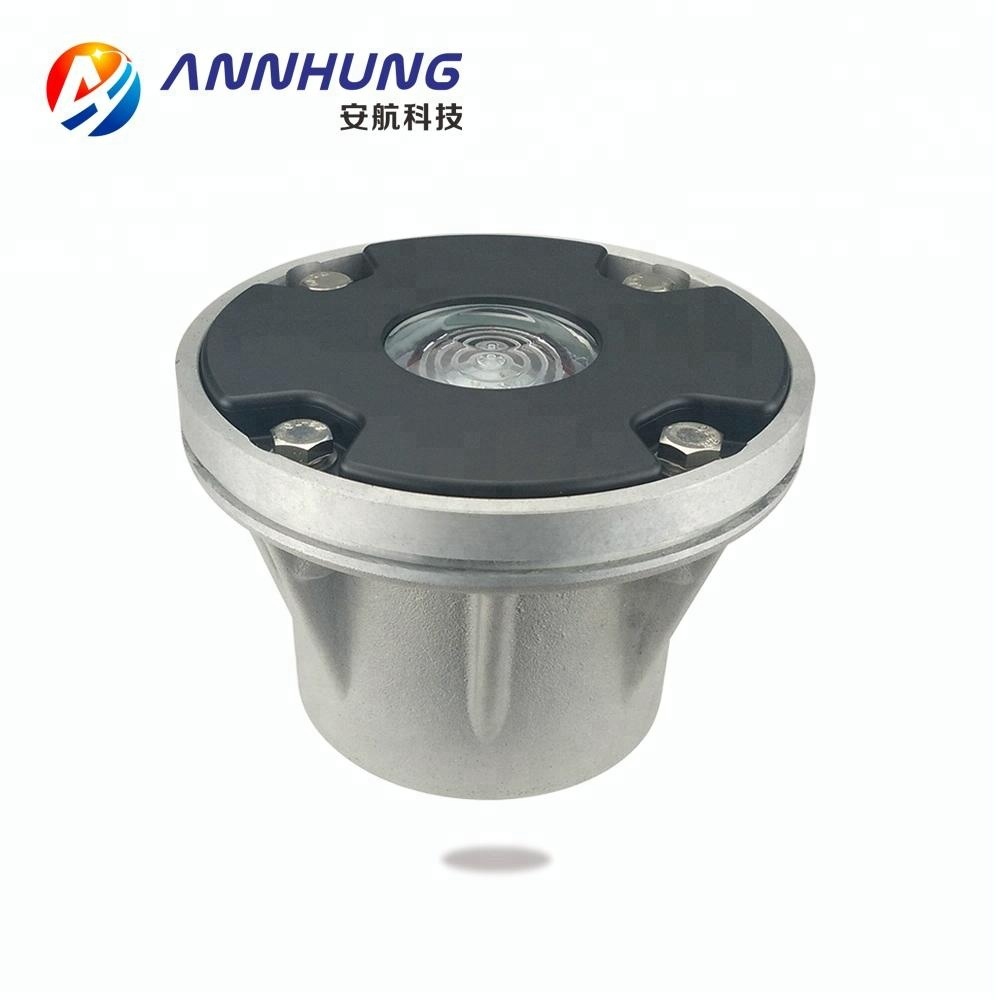

AH-HP/A Touchdown and Lift-off Area Heliport Inset Steady - burning Light Green White Yellow Aiming Point Light

Click on the image to view the original image

Product：	views：6AH-HP/A Touchdown and Lift-off Area Heliport Inset Steady - burning Light Green White Yellow Aiming Point Light
Branch：	Annhung
Type：	Aviation Obstruction Lights
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:10

Product Details

Overview

Quick Details

Type:: Aviation Obstruction Lights

Input Voltage(V):: AC220V, 50/60 Hz(Option voltage,eg.AC120V,DC48V)

Lamp Power(W):: 20

Lamp Luminous Flux(lm):: 100%

Lamp Luminous Efficiency(lm/w):: 120

CRI (Ra):: 100

Color Temperature(CCT):: Pure White

Beam Angle(°):: 360, 360 Horizontal Beam Angle

IP Rating:: IP68

Certification:: RoHS

Emitting Color:: Green

Lamp Body Material:: Aluminum Alloy

Base Type:: Other

Light Source:: LED

Place of Origin:: Guangdong, China

Brand Name:: Annhung

Products name:: Touchdown and Lift-off Area Aming Point Heliport Light

Color:: Green|White|Yellow

Weight:: 4.9KG

Working mode:: Steady Burning Way

Overall Size(mm):: 194 by 194 by 138

Light Intensity:: ≥ 100cd

Service life of light source:: 100,000 hours

International standard:: ICAO, FAA

Installation Way:: Under ground

Supply Ability

Supply Ability:: 3000 Piece/Pieces per Month AH-HP/A Touchdown and Lift-off Area Heliport Inset Steady-burni

Packaging & Delivery

Packaging Details: paper carton 1 piece/box
194 by 194 by 138

Port: Shenzhen Port

Packaging & Delivery

Packaging Details: paper carton 1 piece/box

3-15 days

Delivery Detail: Shipped in 15 days after payment

Specification

Touchdown and Lift-off Area Light Helipad light Heliport Light Aiming Point Light

Heliport light

Helipad lighting

Inset Touchdown and Lift-off Area Light

compliant with ICAO,FAA,CAAC

Applications

Scope of Application

This product is used for shining Omnidirectional white or green or yellow light at night or in the daytime with poor visibility to provide good visibility and circling guidance.

Product Description

Parameter

Description	Parameter
Mode	AH-HP/A
Light intensity	≥ 100cd
Light source	LED
Service life of LED	100, 000hours
Signal mode	Steady-burning way
Operating voltage	AC220V, 50/60 Hz(Option voltage,eg.AC120V,DC48V)
Emitting color	White or green or yellow
Power consumption	20W
Overall size(mm)	Φ194 × 138
Installation size(mm)	Φ199 × 146
Ambient temperature	-55℃~+70℃
Weight	4.9kg
Protection standard	IP68

Installation Drawing

Production Flow Char
