Touchdown and Lift-off Area Light Helipad light Heliport Light
Heliport light
Helipad lighting

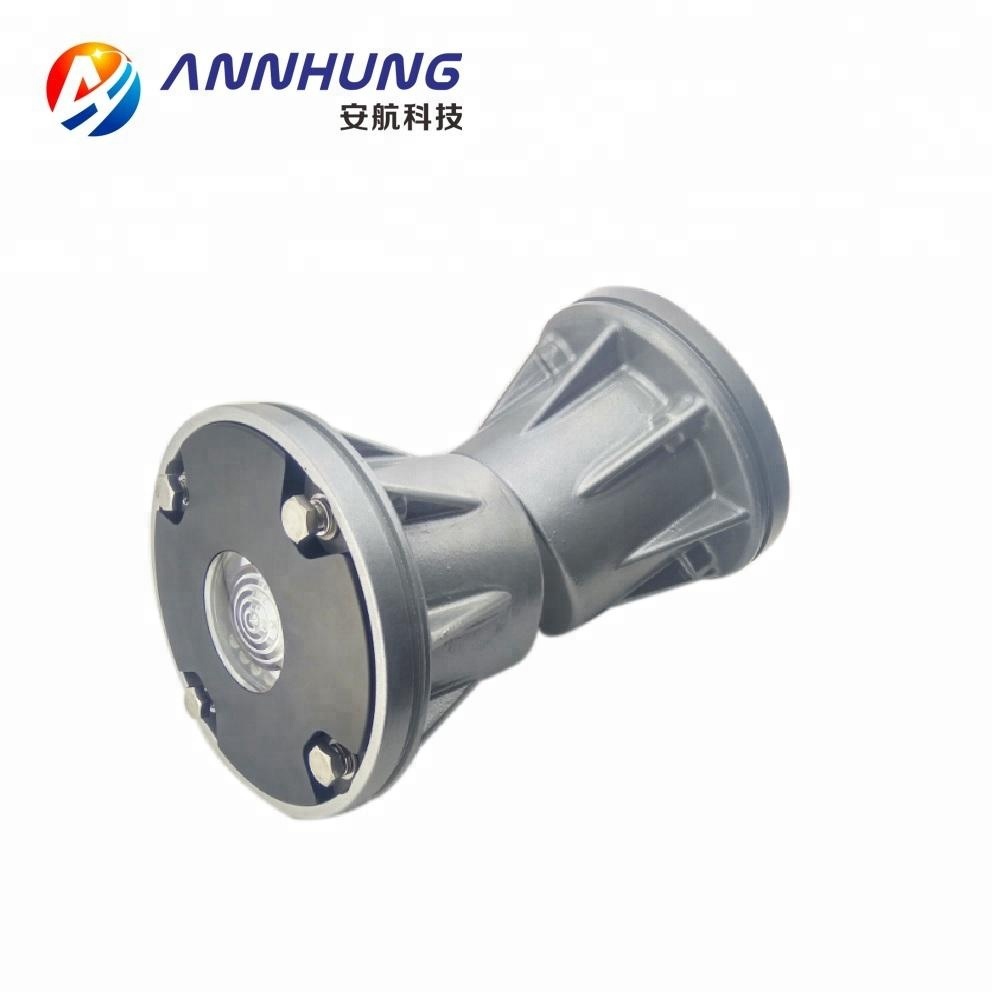

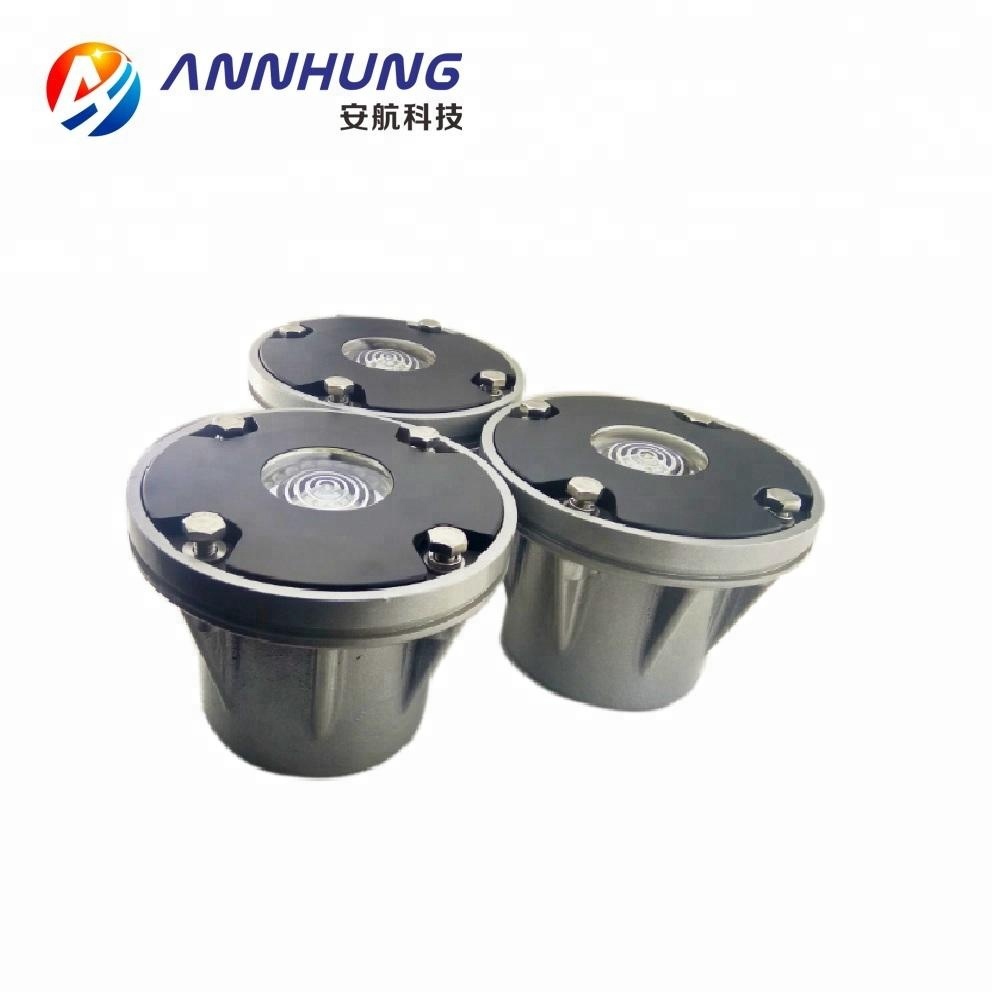

Inset Touchdown and Lift-off Area Light
compliant with ICAO,FAA,CAAC
This product is used for shining Omnidirectional white or green or yellow light at night or in the daytime with poor visibility to provide good visibility and circling guidance.
Main Parameter
| Description | Parameter |
| Mode | AH-HP/A |
| Light intensity | ≥ 100cd |
| Light source | LED |
| Service life of LED | 100, 000hours |
| Signal mode | Steady-burning way |
| Operating voltage | AC220V, 50/60 Hz(Option voltage,eg.AC120V,DC48V) |
| Emitting color | White or green or yellow |
| Power consumption | 20W |
| Overall size(mm) | Φ194 × 138 |
| Installation size(mm) | Φ199 × 146 |
| Ambient temperature | -55℃~+70℃ |
| Weight | 4.9kg |
| Protection standard | IP68 |
Compliance
The lights in accordance with ICAO and FAA regulations
Shenzhen Anhang Technology Company Limited is a high technology enterprise engaging in research, production, sales and after -sales services for a wide range of Aviation Obstruction Light,Aircraft Warning Light,Helipad Light, LED Marine Lanterns,LED Bulb and Aircraft Warning Sphere.We are a domestic market leader in the field of navigation lights and a supporter of green and safe emissions. Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory,Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoyage in sea, etc. Website:www.annhung.com www.ahicao.com
