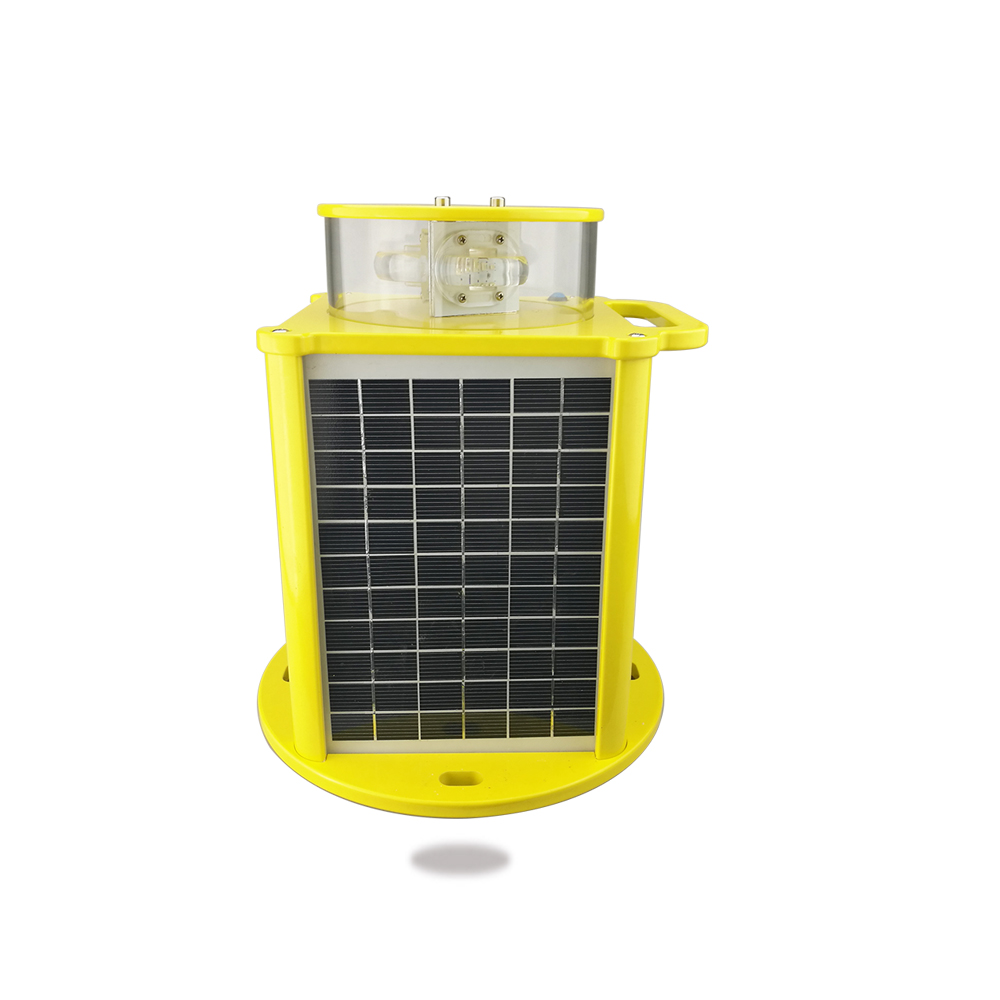

Medium-intensity Type B Solar Aviation Light
Aviation Obstruction Light
Solar Aviation Light
Obstruction Light
Compliant with ICAO,FAA,CAAC
AH-MS/B Medium-intensity Type B Solar-Powered Aviation Light can be provided with power supply without power transmission cables by solar power, so it is suitable for those locations, Electric Tower, High-rise Building, High Chimney, marking towers (Telecom,GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc especially which are hard to lay the cable or lack of power supply as well as those facilities which have high requirements on lightning protection.
Function
AH-MS/B Medium-intensity Type B Solar-Powered Aviation Light is single solar light. This product can work at night and close during the day automatically by Solar panel which function is same as photocell sensor.
Advantages
1. International advanced solar panel reaching at least 10 years service life.
2. Comprehensive protection in voltage short, over-voltage, floating Charge and temperature.
3. Low power consumption profession flash switch.
4. International-advanced ultra high power LED with high brightness and service life of light source reaching 100000hours.
5. Strong impact lamp shape with PC material.
6. Strong corrosion resistance and UV protection.
7. At least 7 days autonomy.(optional 15days)
8. Having lightning-protection function.
9. New technology application. Light can work at night automatically by
solar panel which function is equal to photocell sensor.
Main Parameter
| Description | Parameter |
| Mode | AH-MS/B |
| Light intensity | 2,000cd ±25% |
| Working mode | Flash mode (20-60times/minute) |
| Light source | Ultra high intensity LED |
| Service life of LED | 100,000hours |
| Operating voltage | DC 12V (Solar powered Way),recyclable batteries with the lightest environmental and long life. |
| Material | |
| Housing | HBG( High Borosilicate Glass) |
| Base | Die casting aluminum |
| Autonomy(without sunlight) | at least 7 days(Option 15days) |
| Power Consumption | 20W |
| Overall Size(mm) | 260 by 260 by 310 |
| Installation Size(mm) | 220 by 220 by M10 |
| Weight | 7.6Kg |
| Emitting Color | Red |
| Ambient Temperature | -40℃~+60℃ |
| Wind load | 80m/s |
| Protection Standard | IP68 |
Compliance
Medium-intensity Type B and FAA L-864
Medium-intensity Type B Solar Aviation Obstruction Light, ICAO Annex 14 Volume 1,"Aerodrome Design and Operations’ Forth edition July 2004,table6.3
Shenzhen Anhang Technology Company Limited is a high technology enterprise engaging in research, production, sales and after -sales services for a wide range of Aviation Obstruction Light,Aircraft Warning Light,Helipad Light, LED Marine Lanterns,LED Bulb and Aircraft Warning Sphere.We are a domestic market leader in the field of navigation lights and a supporter of green and safe emissions. Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory,Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoyage in sea, etc. Website:www.annhung.com www.ahicao.com
